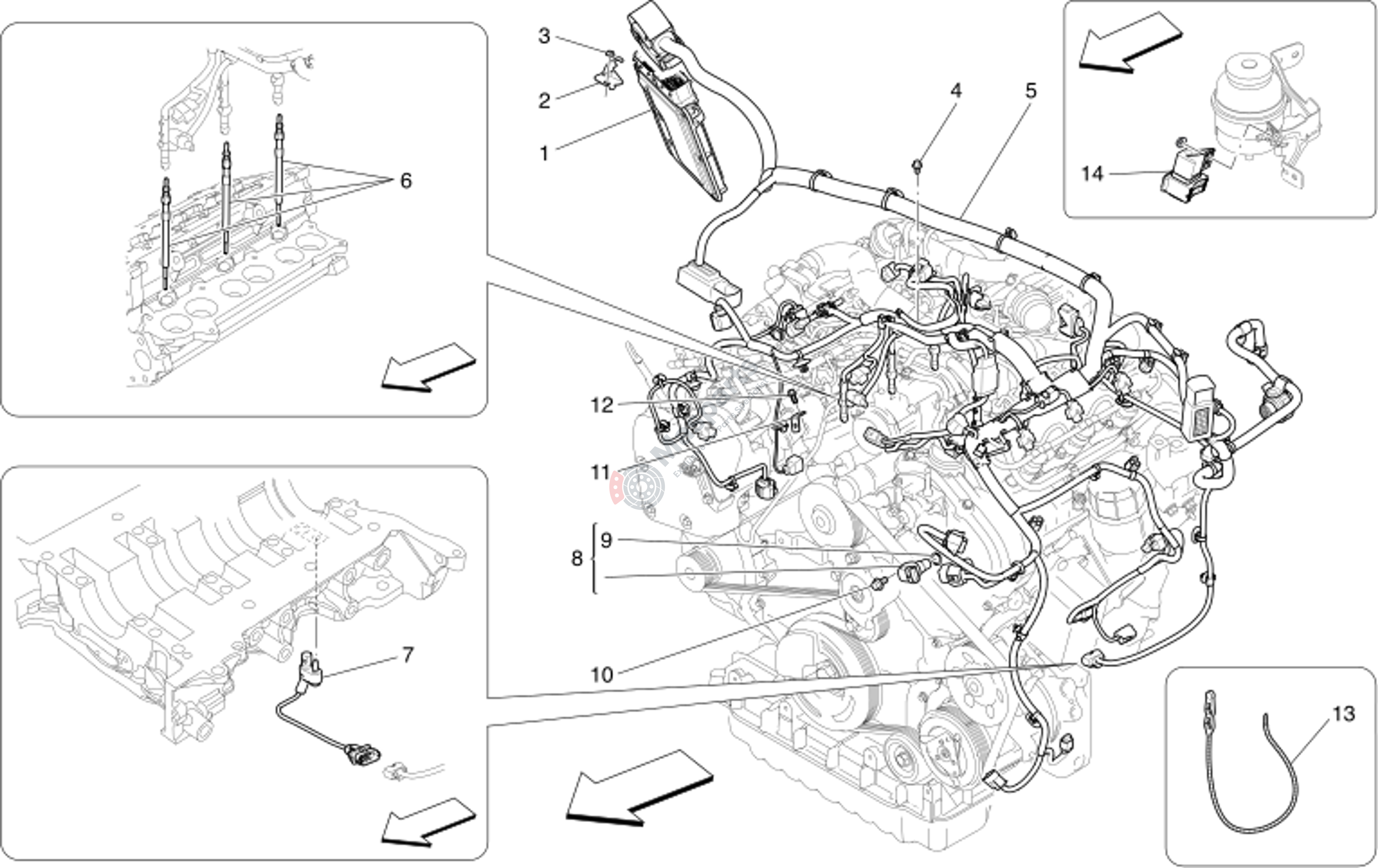

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670005090 | Control Unit Fixing Bracket |
$9.26 |
|
|
| 4 | M-46328709 | Flange Bolt |
$4.91 |
|
|
| 7 | M-46328171 | Sensor |
$236.55 |
|
|
| 8 | M-46328202 | Timing Sensor |
$117.30 |
|
|
| 9 | M-673001051 | O.R. Gasket |
$2.93 |
|
|
| 10 | M-46328681 | Flange Bolt |
$2.61 |
|
|
| 11 | M-46328769 | Support Bracket For Harness |
$4.51 |
|
|
| 12 | M-46328683 | Flange Bolt |
$1.15 |
|
|
| 13 | M-46329513 | Wiring Clamp |
$3.06 |
|
|
| 14 | M-670005138 | Control Unit |
$170.44 |
|
