Diagram image not available

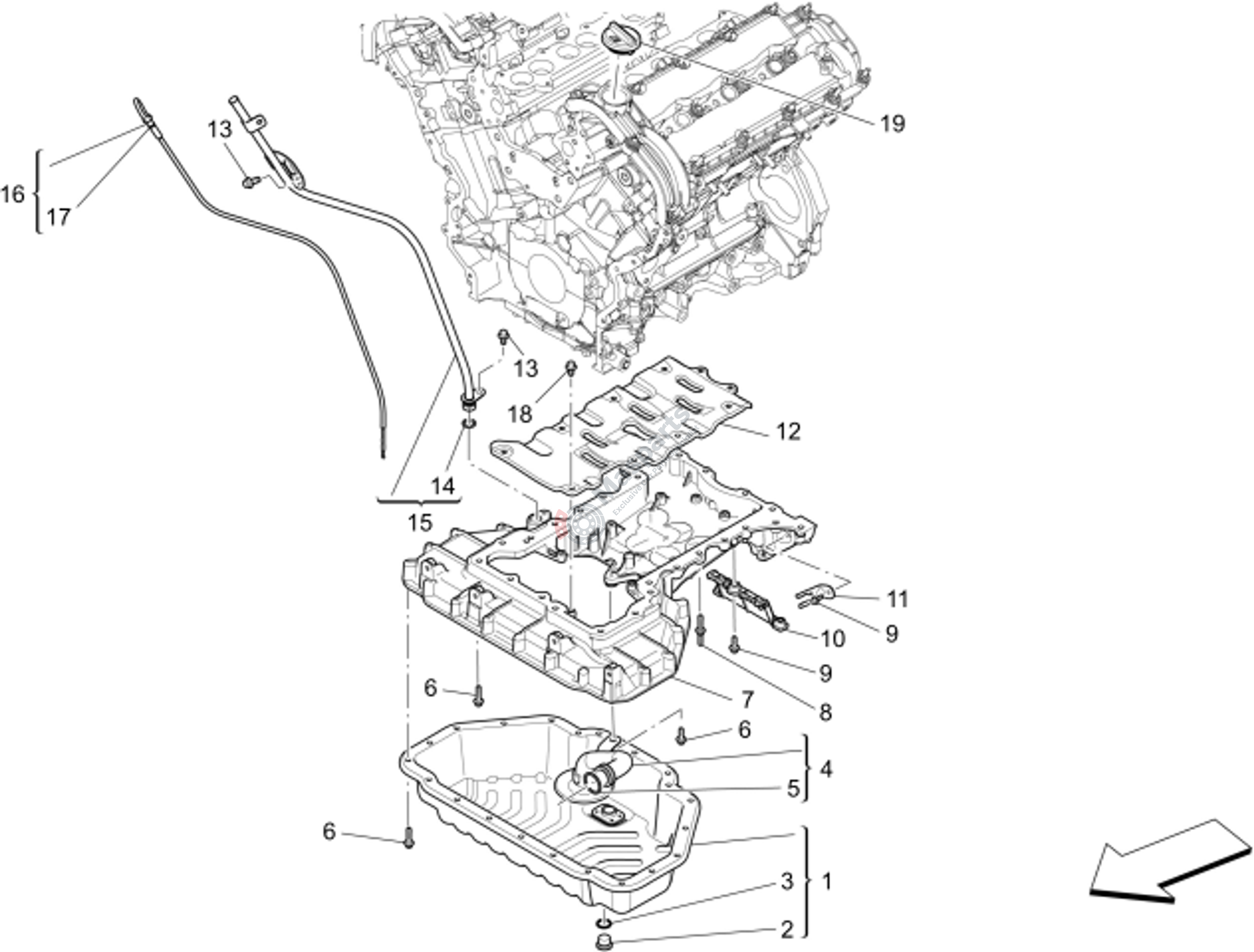

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328168 | Oil Sump |
$790.08 |
|
|
| 2 | M-46328671 | Plug |
$5.76 |
|
|
| 3 | M-46328660 | Gasket |
$1.25 |
|
|
| 4 | M-46328166 | Cpl Oil Delivery Tube |
$153.95 |
|
|
| 5 | M-46328352 | O.R. Gasket |
$6.08 |
|
|
| 6 | M-46328687 | Flange Bolt |
$2.20 |
|
|
| 7 | M-46328161 | Upper Oil Sump |
$711.65 |
|
|
| 8 | M-46328170 | Stud |
$3.25 |
|
|
| 9 | M-46328681 | Flange Bolt |
$2.62 |
|
|
| 10 | M-46328172 | Cover |
$23.78 |
|
|
| 11 | M-46328173 | Bracket |
$11.32 |
|
|
| 12 | M-46328163 | Oil Guard |
$39.50 |
|
|
| 13 | M-46328683 | Flange Bolt |
$1.15 |
|
|
| 14 | M-46328364 | O.R. Gasket |
$1.89 |
|
|
| 15 | M-46328317 | Oil Level Rod Tube |
$94.11 |
|
|
| 16 | M-46328319 | Oil Level Dipstick |
$21.79 |
|
|
| 17 | M-46328365 | O.R. Gasket |
$0.95 |
|
|
| 18 | M-46328683 | Flange Bolt |
$1.15 |
|
