Diagram image not available

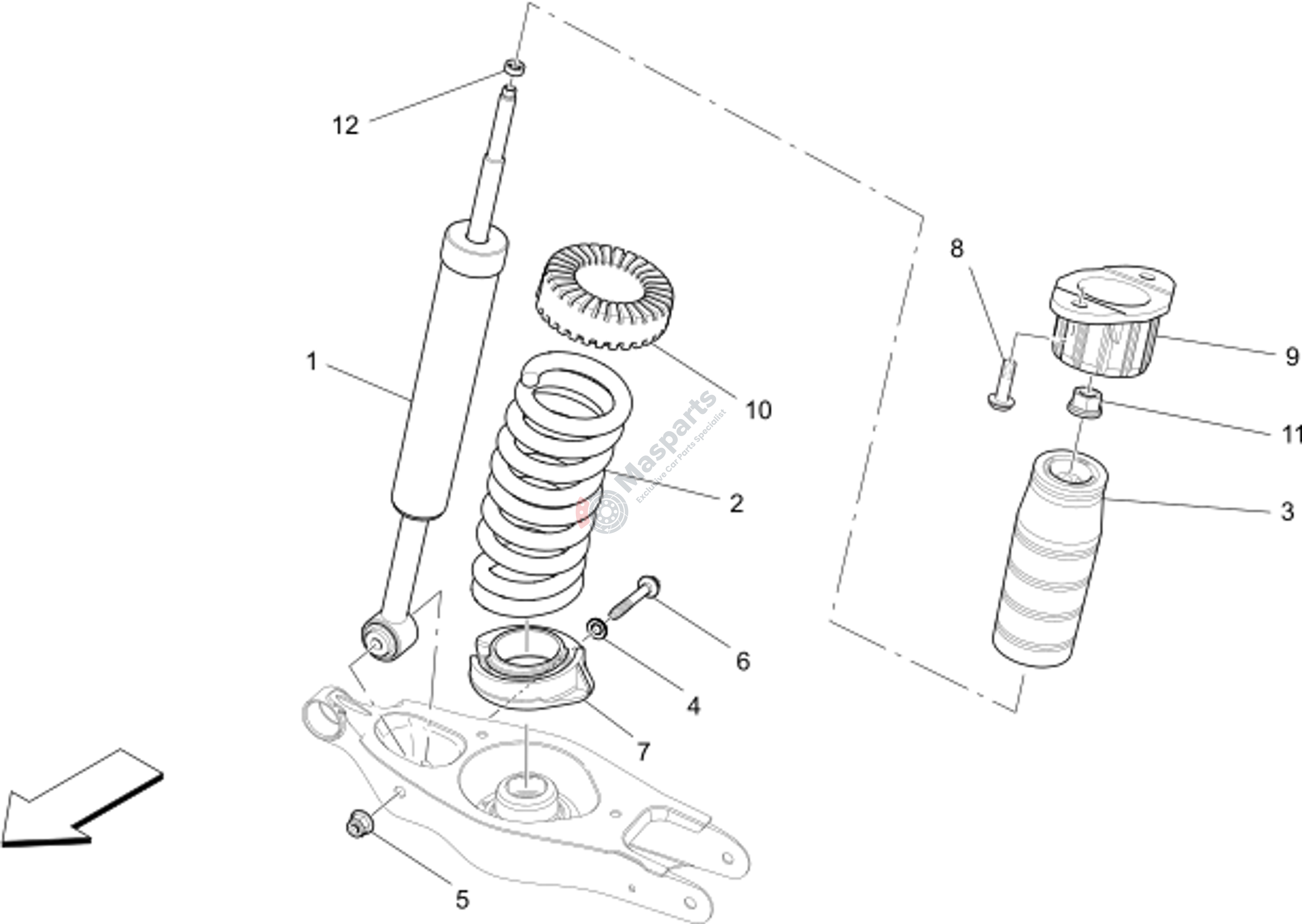

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670005266 | Rear Helical Spring (4X2 Sdd |
€60,54 |
|
|
| 4 | M-675000083 | Washer |
€1,62 |
|
|
| 5 | M-675000023 | Nut |
€1,17 |
|
|
| 6 | M-675000146 | Screw |
€4,97 |
|
|
| 7 | M-675000033 | Ring |
€31,00 |
|
|
| 8 | M-675000145 | Screw |
€3,45 |
|
|
| 9 | M-670002833 | R.H. Rear Susp. Elastic Cup |
€45,91 |
|
|
| 10 | M-675000216 | Ring |
€18,40 |
|
|
| 11 | M-670009802 | Nut With Washer |
€3,86 |
|
|
| 12 | M-670007685 | Spacer |
€34,59 |
|
