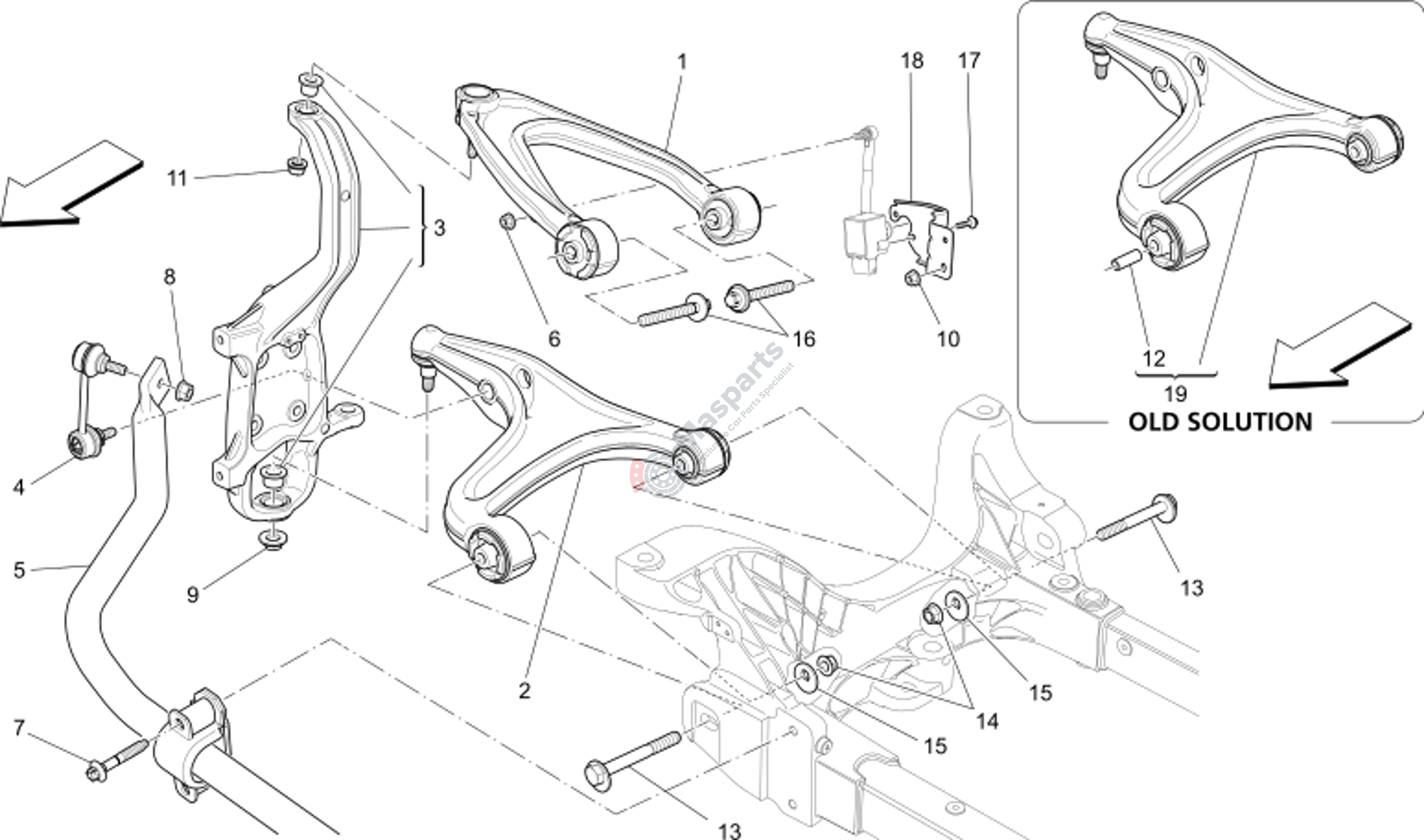

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670004186 | Cpl Front Rh Suspension Uppe |
$553.90 |
|
|
| 2 | M-670107803 | Front Suspension Rh Lower Ar |
$772.22 |
|
|
| 4 | M-670005004 | Small Link |
$55.50 |
|
|
| 6 | M-675000095 | Nut |
$0.76 |
|
|
| 7 | M-675000393 | Screw |
$3.99 |
|
|
| 8 | M-675000124 | Nut |
$0.95 |
|
|
| 9 | M-675000082 | Nut |
$4.32 |
|
|
| 10 | M-675000095 | Nut |
$0.76 |
|
|
| 11 | M-670002916 | Nut |
$2.41 |
|
|
| 12 | M-670101760 | Spacer Bushing Pt1 |
$18.07 |
|
|
| 13 | M-670002853 | Screw With Eccentric M14X118 |
$17.64 |
|
|
| 14 | M-670002854 | Special Nut M14X2 |
$2.03 |
|
|
| 15 | M-670002806 | Special Washer With Eccentri |
$5.99 |
|
|
| 16 | M-675000051 | Screw ˇ |
$2.65 |
|
|
| 17 | M-675000197 | Screw |
$2.28 |
|
|
| 18 | M-670003043 | Bracket |
$8.61 |
|
