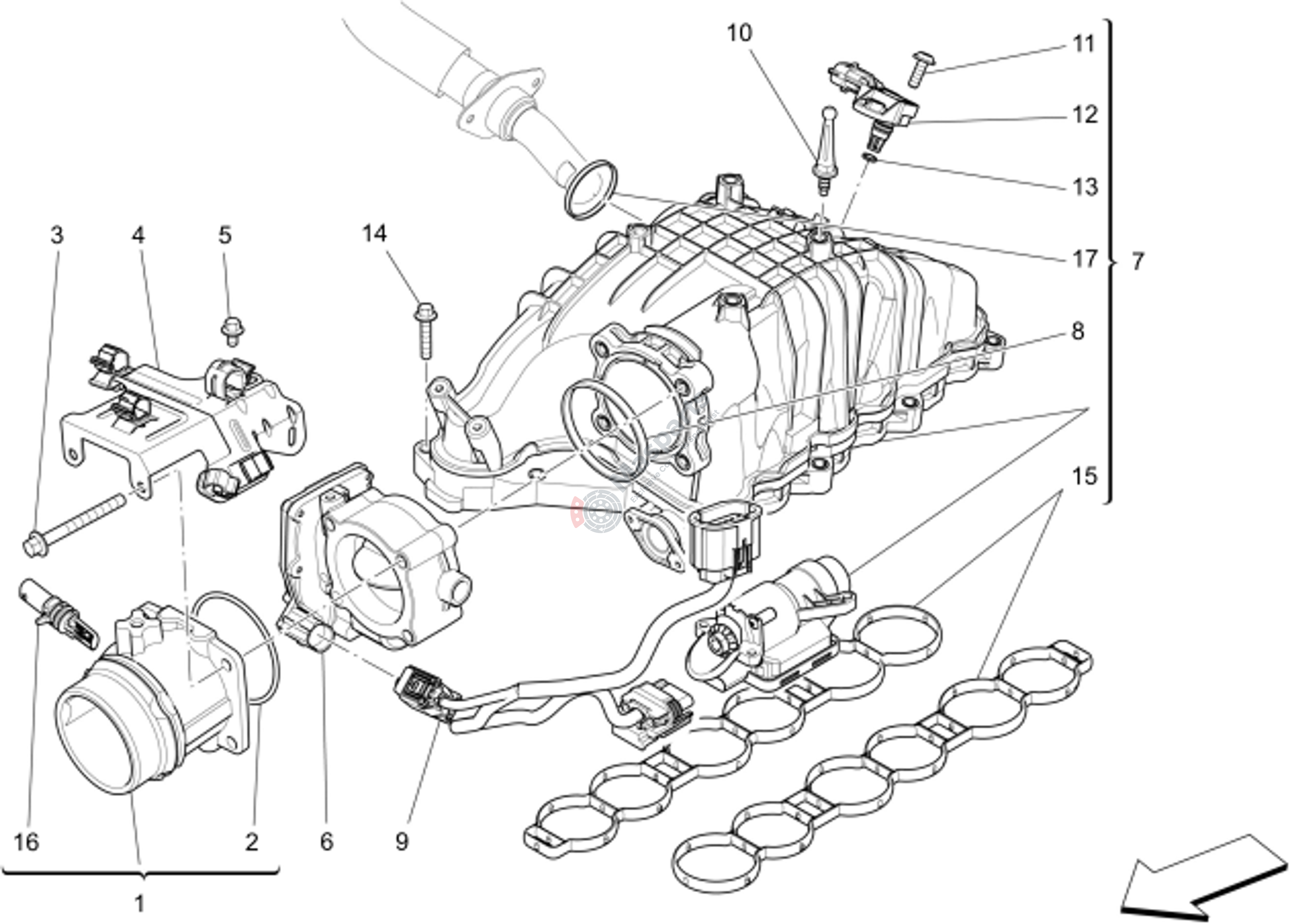

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328243 | Sleeve |
$150.86 |
|
|
| 2 | M-46328359 | O.R. Gasket |
$13.78 |
|
|
| 3 | M-46328693 | Flange Bolt |
$2.54 |
|
|
| 4 | M-46328247 | Bracket |
$28.95 |
|
|
| 5 | M-46328683 | Flange Bolt |
$1.17 |
|
|
| 6 | M-46333962 | Throttle Body |
$531.94 |
|
|
| 7 | M-46344525 | Intake Manifold Assembly |
$1,318.58 |
|
|
| 8 | M-673001043 | Gasket |
$49.42 |
|
|
| 9 | M-46342244 | Throttle Cable |
$98.72 |
|
|
| 10 | M-46328350 | Ball Pin |
$9.54 |
|
|
| 12 | M-46330273 | Air Termperature And Pressur |
$111.01 |
|
|
| 13 | M-673001052 | O.R. Gasket |
$1.11 |
|
|
| 14 | M-46328688 | Flange Bolt |
$3.07 |
|
|
| 15 | M-673001014 | Gasket Kit |
$245.99 |
|
|
| 16 | M-46328246 | Air Temperature Sensor |
$47.58 |
|
|
| 17 | M-673001044 | Gasket |
$8.10 |
|
