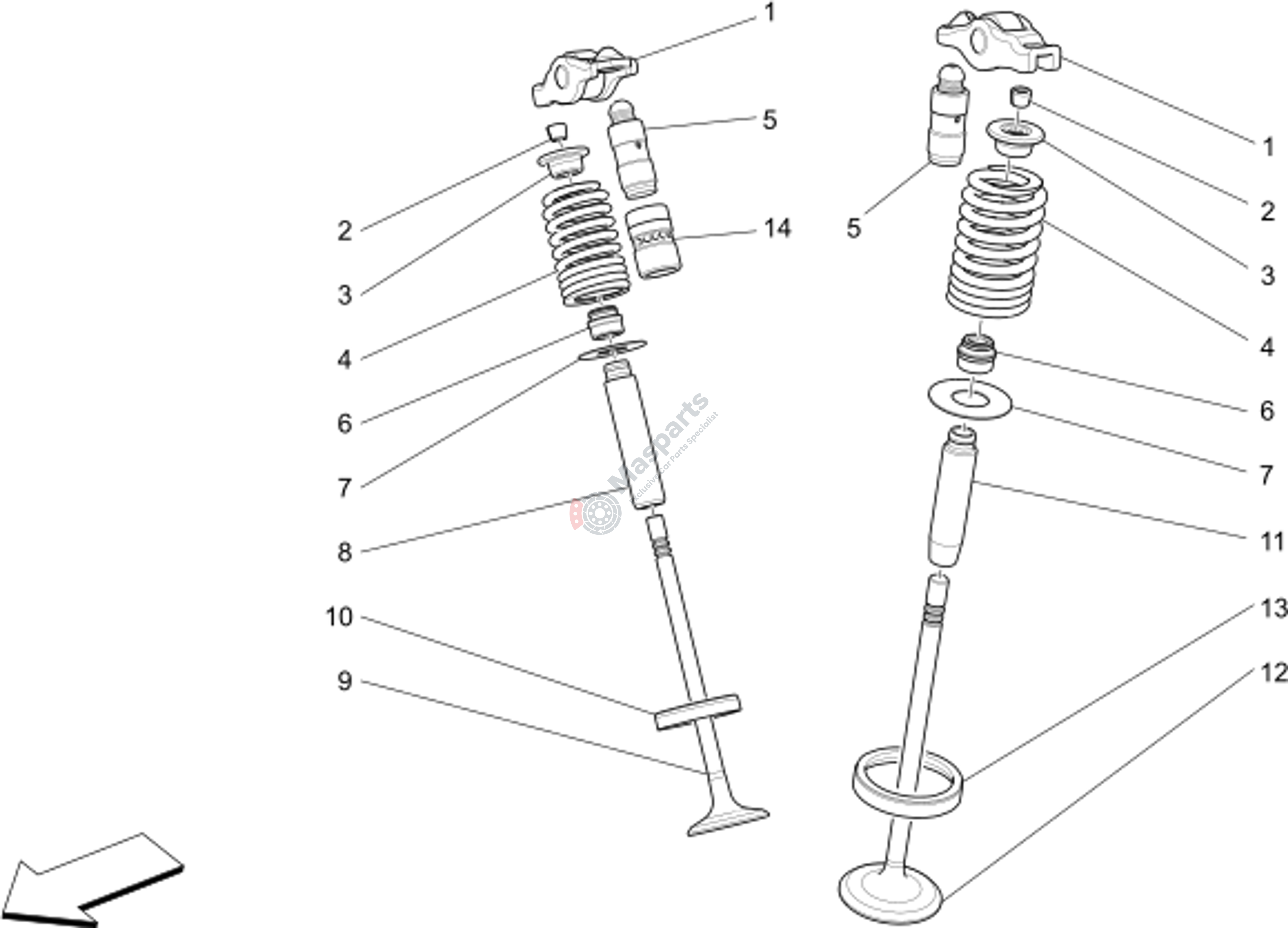

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-288699 | Roll Control Valve |
€13,52 |
|
|
| 2 | M-275536 | Cotter For Valve Spring |
€0,96 |
|
|
| 3 | M-275535 | Upper Spacer |
€1,46 |
|
|
| 4 | M-896797 | Valve Spring |
€6,21 |
|
|
| 5 | M-275537 | Hydraulic Tappet For Valve |
€8,92 |
|
|
| 6 | M-221473 | Oil Seal For Valves |
€4,88 |
|
|
| 7 | M-275531 | Lower Spacer |
€7,73 |
|
|
| 9 | M-841116 | Exhaust Valve |
€33,07 |
|
|
| 12 | M-282643 | Intake Valve |
€9,44 |
|
