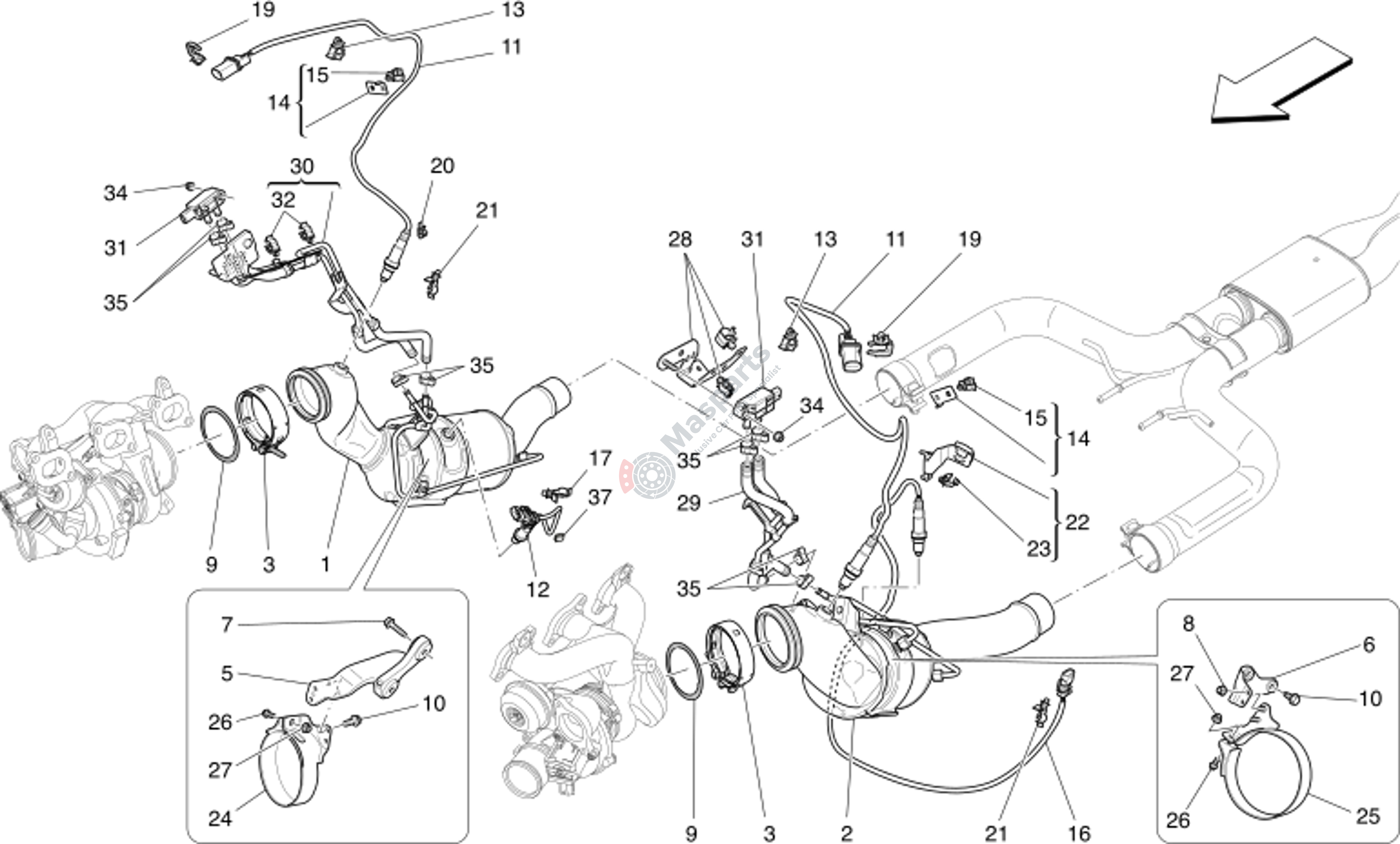

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670107540 | Hot-End Cpl.Ccgpf Rt |
$3,186.86 |
|
|
| 2 | M-670107529 | Hot-End Cpl.Ccgpf Lt |
$3,059.84 |
|
|
| 3 | M-675000060 | Collar |
$28.88 |
|
|
| 5 | M-670104958 | Rh Bracket |
$42.26 |
|
|
| 6 | M-670030018 | Lh Bracket |
$29.42 |
|
|
| 7 | M-675000397 | Screw |
$9.03 |
|
|
| 8 | M-675000091 | Nut |
$1.25 |
|
|
| 9 | M-675000052 | Gasket |
$8.43 |
|
|
| 10 | M-675000112 | Screw |
$2.36 |
|
|
| 11 | M-670214727 | Front Lambda Sensor |
$120.07 |
|
|
| 12 | M-670104045 | Rear Lambda Sensor |
$121.03 |
|
|
| 13 | M-675000143 | Clip |
$0.97 |
|
|
| 14 | M-670039619 | Brake Booster Vacuum Hose Br |
$13.24 |
|
|
| 15 | M-675000134 | Clip |
$5.88 |
|
|
| 16 | M-670107391 | Rear Lambda Sensor |
$132.65 |
|
|
| 17 | M-675000143 | Clip |
$0.97 |
|
|
| 19 | M-670104528 | Retaining Clip |
$1.69 |
|
|
| 20 | M-670106995 | Retaining Clip |
$1.69 |
|
|
| 21 | M-670039620 | Bracket |
$5.63 |
|
|
| 22 | M-670107795 | Temperature Sensor Bracket |
$21.40 |
|
|
| 23 | M-670009081 | Fastening Clip |
$9.91 |
|
|
| 24 | M-670108353 | Collar Bracket Lh Hot-End |
$140.87 |
|
|
| 25 | M-670108354 | Collar Bracket Rh Hot-End |
$52.91 |
|
|
| 26 | M-675000257 | Screw |
$5.94 |
|
|
| 27 | M-675000779 | Nut |
$2.79 |
|
|
| 28 | M-670107580 | Lh Pressure Sensor Bracket |
$25.06 |
|
|
| 29 | M-670105045 | Rigid Pipe Exhaust Gas Press |
$108.14 |
|
|
| 30 | M-670182471 | Rigid Pipe Exhaust Gas Pres |
$119.63 |
|
|
| 32 | M-675000076 | Clip |
$0.86 |
|
|
| 34 | M-14059211 | Nut |
$1.45 |
|
|
| 35 | M-675000369 | Strap Collar |
$1.67 |
|
