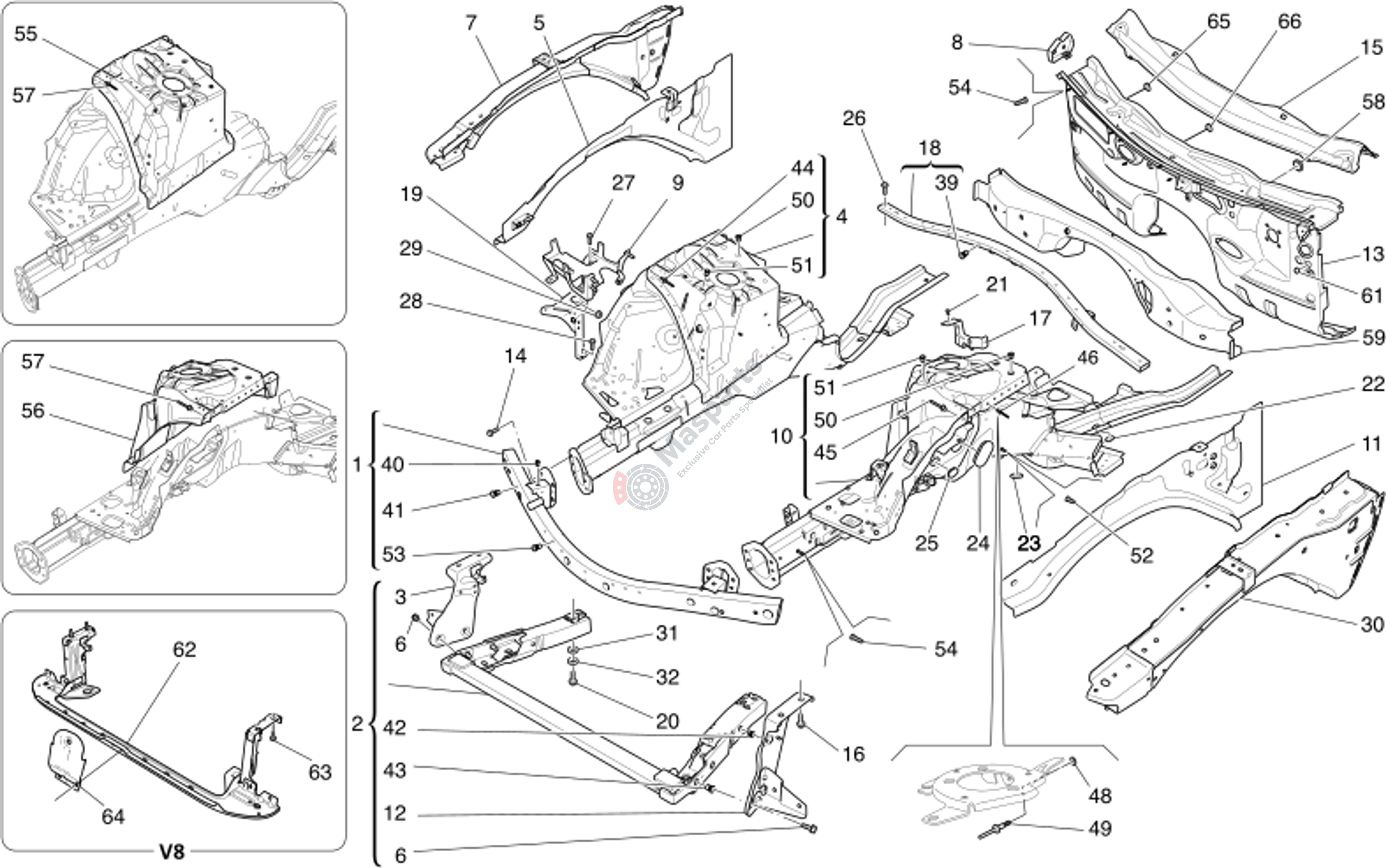

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673008134 | Cpl. Cat. Front Cross Member |
$382.07 |
|
|
| 2 | M-670009989 | Cpl. Third Load Path Cross M |
$466.53 |
|
|
| 3 | M-670004899 | Rh Bracket |
$62.54 |
|
|
| 5 | M-673001716 | Complete Rh Upper Strut Box |
$137.50 |
|
|
| 6 | M-675000469 | Screw |
$1.28 |
|
|
| 7 | M-673002754 | Rh Moulding |
$173.84 |
|
|
| 8 | M-673000414 | Windshield Lower Cross Membe |
$68.47 |
|
|
| 9 | M-670004050 | Fuse Box Support Bracket |
$51.45 |
|
|
| 11 | M-673001717 | Complete Lh Upper Strut Box |
$137.50 |
|
|
| 12 | M-670004902 | Lh Bracket |
$54.19 |
|
|
| 13 | M-673004763 | Dashboard Lower Framework Lh |
$359.31 |
|
|
| 14 | M-670035227 | Screw And Washer |
$2.55 |
|
|
| 15 | M-673000388 | Windshield Lower Front Cross |
$49.47 |
|
|
| 16 | M-675000469 | Screw |
$1.28 |
|
|
| 17 | M-670004846 | 24-Way Holder Bracket |
$5.74 |
|
|
| 18 | M-670037229 | Lhd Cross-Member Hub Holder |
$165.01 |
|
|
| 19 | M-670031030 | Bracket |
$92.70 |
|
|
| 20 | M-675000503 | Screw |
$2.23 |
|
|
| 21 | M-675000556 | Screw |
$2.09 |
|
|
| 22 | M-670004841 | Plug |
$2.21 |
|
|
| 23 | M-670004842 | Plug |
$3.19 |
|
|
| 24 | M-670004843 | Plug |
$3.68 |
|
|
| 25 | M-670004844 | Plug |
$3.07 |
|
|
| 26 | M-675000470 | Screw |
$1.34 |
|
|
| 27 | M-675000382 | Screw |
$2.47 |
|
|
| 28 | M-675000421 | Screw |
$2.09 |
|
|
| 29 | M-675000095 | Nut |
$0.79 |
|
|
| 30 | M-673002755 | Lh Moulding |
$173.84 |
|
|
| 31 | M-675000096 | Washer |
$1.17 |
|
|
| 32 | M-675000105 | Washer |
$2.22 |
|
|
| 39 | M-675000398 | Rivet |
$3.47 |
|
|
| 40 | M-670002185 | Rivet |
$2.99 |
|
|
| 41 | M-675000398 | Rivet |
$3.47 |
|
|
| 42 | M-675000398 | Rivet |
$3.47 |
|
|
| 43 | M-670002185 | Rivet |
$2.99 |
|
|
| 44 | M-670032695 | Rivet |
$5.04 |
|
|
| 45 | M-670032695 | Rivet |
$5.04 |
|
|
| 46 | M-670005411 | Rivet |
$1.72 |
|
|
| 48 | M-10519527 | Washer |
$2.01 |
|
|
| 49 | M-670032695 | Rivet |
$5.04 |
|
|
| 50 | M-670005395 | Rivet |
$3.68 |
|
|
| 51 | M-670006571 | Rivet |
$2.94 |
|
|
| 52 | M-675000623 | Special Screw |
$1.73 |
|
|
| 53 | M-670002185 | Rivet |
$2.99 |
|
|
| 54 | M-675000628 | Special Screw |
$2.19 |
|
|
| 57 | M-670032695 | Rivet |
$5.04 |
|
|
| 58 | M-670030073 | Rubber Plug |
$1.73 |
|
|
| 59 | M-673008198 | Front Crossmember |
$231.79 |
|
|
| 61 | M-670152736 | Rubber Plug |
$1.23 |
|
|
| 65 | M-670175361 | Adhesive Cap |
$2.48 |
|
|
| 66 | M-670036841 | Adhesive Cap |
$3.19 |
|
