Diagram image not available

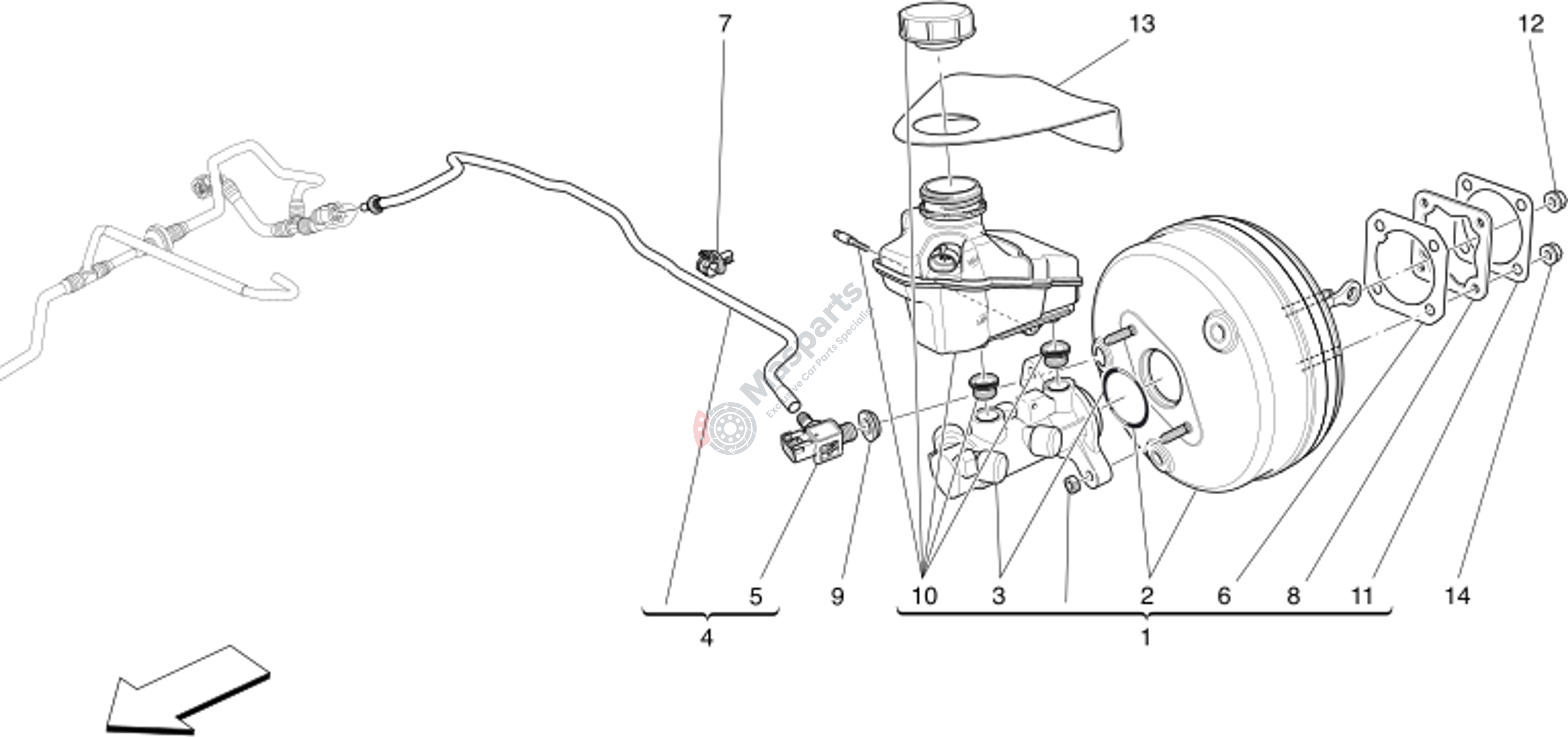

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670004287 | Brake Booster Assy |
$471.32 |
|
|
| 2 | M-673002713 | Brake Booster M157 |
$596.17 |
|
|
| 3 | M-673002714 | Pump (Brake Booster) M157 |
$436.48 |
|
|
| 4 | M-670006381 | Complete Vacuum Pipe (Lhd) |
$71.89 |
|
|
| 5 | M-675000038 | Pressure Transmitter |
$71.12 |
|
|
| 6 | M-673002019 | Brake Booster Gasket |
$39.34 |
|
|
| 7 | M-675000013 | Clip |
$0.98 |
|
|
| 8 | M-673009226 | Spacer |
$42.22 |
|
|
| 9 | M-673002073 | Gasket |
$11.94 |
|
|
| 10 | M-673003415 | Brake Booster Tank |
$182.92 |
|
|
| 11 | M-673009227 | Gasket |
$2.41 |
|
|
| 12 | M-670030266 | Nut |
$4.84 |
|
|
| 14 | M-675001939 | Nut M8 With Washer |
$1.98 |
|
