Diagram image not available

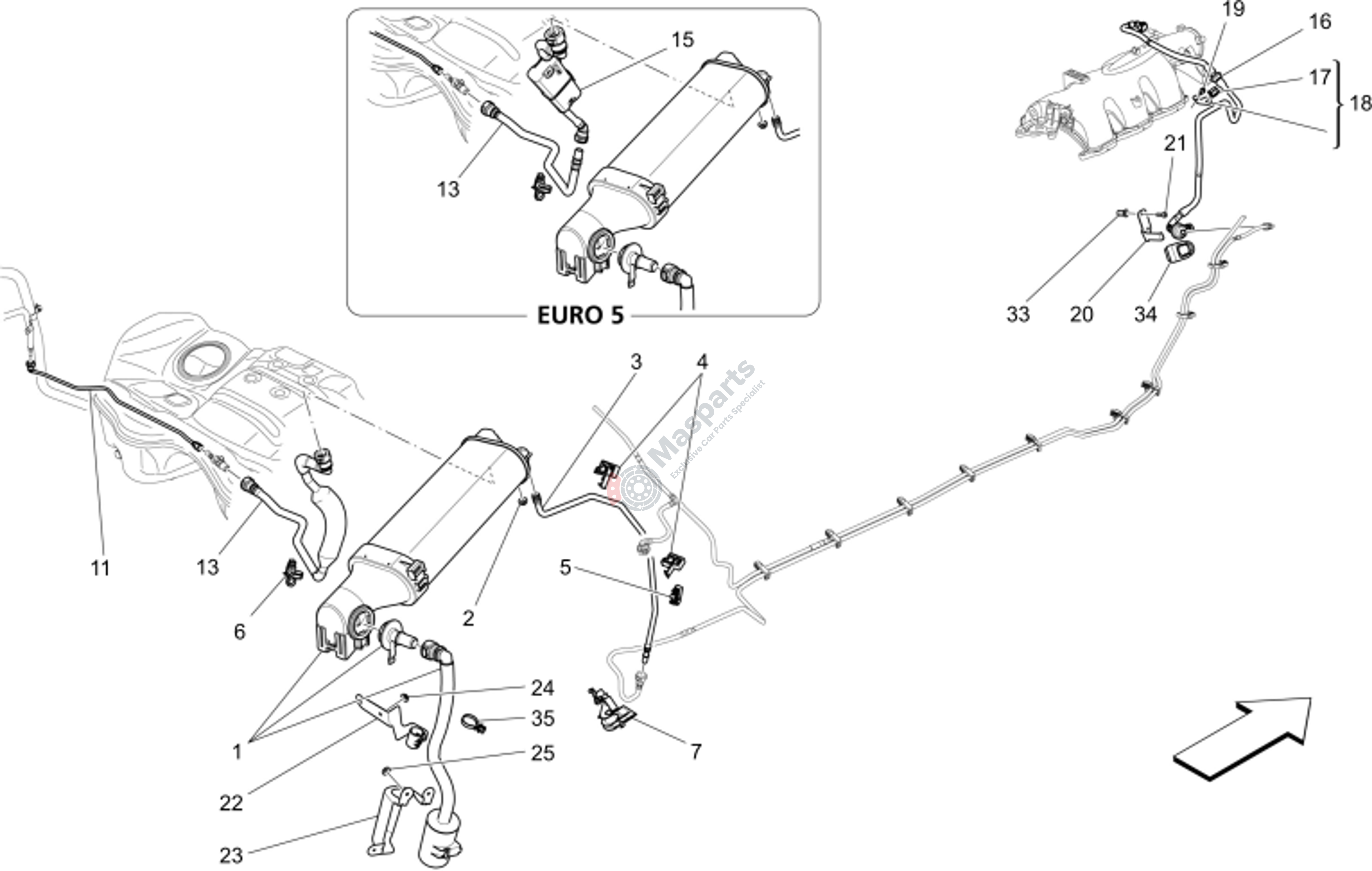

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670030586 | Cpl Fuel Vapour Filter (Row) |
€99,75 |
|
|
| 2 | M-675000114 | Nut |
€1,08 |
|
|
| 3 | M-670003253 | Rear Anti-Evapouration Pipe |
€16,92 |
|
|
| 4 | M-675000069 | Clip |
€1,13 |
|
|
| 5 | M-675000055 | Clip |
€1,00 |
|
|
| 6 | M-670030850 | Fuel Tank Bracket |
€2,61 |
|
|
| 7 | M-670007068 | Clip |
€4,38 |
|
|
| 11 | M-670005215 | Flex.Hose |
€24,40 |
|
|
| 13 | M-670033166 | Vapour Pipe |
€64,94 |
|
|
| 16 | M-673012369 | Pipe From Union To Air Intak |
€105,40 |
|
|
| 17 | M-675000132 | Clip |
€1,00 |
|
|
| 18 | M-670005045 | Cpl Bracket |
€5,24 |
|
|
| 19 | M-675000191 | Screw |
€1,72 |
|
|
| 20 | M-670007135 | Bracket |
€3,13 |
|
|
| 21 | M-675000242 | Screw |
€2,79 |
|
|
| 22 | M-670030588 | Canister Filter Bracket |
€9,29 |
|
|
| 23 | M-670030891 | Heat Guard |
€13,16 |
|
|
| 24 | M-675000114 | Nut |
€1,08 |
|
|
| 25 | M-670030917 | Threaded Plate |
€0,84 |
|
|
| 33 | M-675000576 | Rivet |
€1,00 |
|
|
| 34 | M-670007319 | Antivibration Bushing |
€5,61 |
|
|
| 35 | M-670031653 | Spring Clip A/C Line |
€16,38 |
|
