Diagram image not available

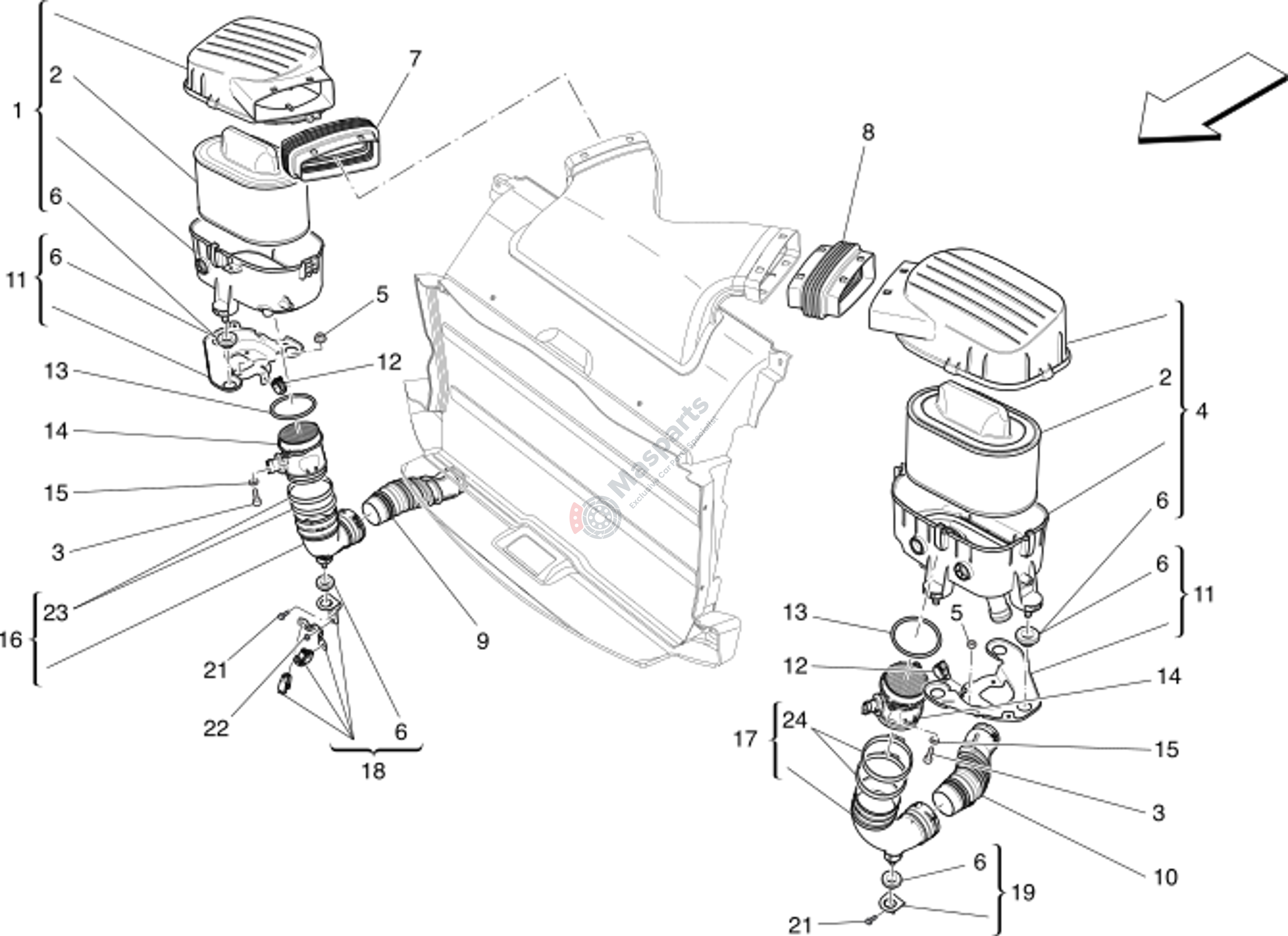

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007389 | Rh Filter Box Cpl |
€77,95 |
|
|
| 2 | M-670001545 | Air Filter |
€51,53 |
|
|
| 4 | M-673007391 | Lh Filter Box Cpl V6 Tt |
€77,95 |
|
|
| 6 | M-670005249 | Bushing |
€12,42 |
|
|
| 7 | M-670007992 | Rh Intake Air Sleeve |
€21,00 |
|
|
| 8 | M-670007991 | Lh Intake Air Sleeve |
€21,00 |
|
|
| 9 | M-670002450 | Lower Rh. Air Intake Sleeve |
€110,50 |
|
|
| 10 | M-670002452 | Lower Lh. Air Intake Sleeve |
€119,85 |
|
|
| 11 | M-670038730 | Filter Box Bracket |
€13,52 |
|
|
| 12 | M-675000135 | Clip |
€0,84 |
|
|
| 13 | M-670005248 | Circlip |
€82,71 |
|
|
| 14 | M-670002164 | Air Flow Meter |
€182,32 |
|
|
| 15 | M-675000097 | Washer |
€1,05 |
|
|
| 16 | M-673007392 | Rh Clean Air Intake Sleeve V |
€82,45 |
|
|
| 17 | M-673007395 | Lh Clean Air Intake Sleeve R |
€137,70 |
|
|
| 19 | M-670038733 | Lh Clean Air Intake Sleeve B |
€2,61 |
|
|
| 21 | M-675000308 | Screw |
€1,42 |
|
|
| 23 | M-675000551 | Snap-On Hose Band Clamp D.85 |
€3,93 |
|
|
| 24 | M-675000551 | Snap-On Hose Band Clamp D.85 |
€3,93 |
|
