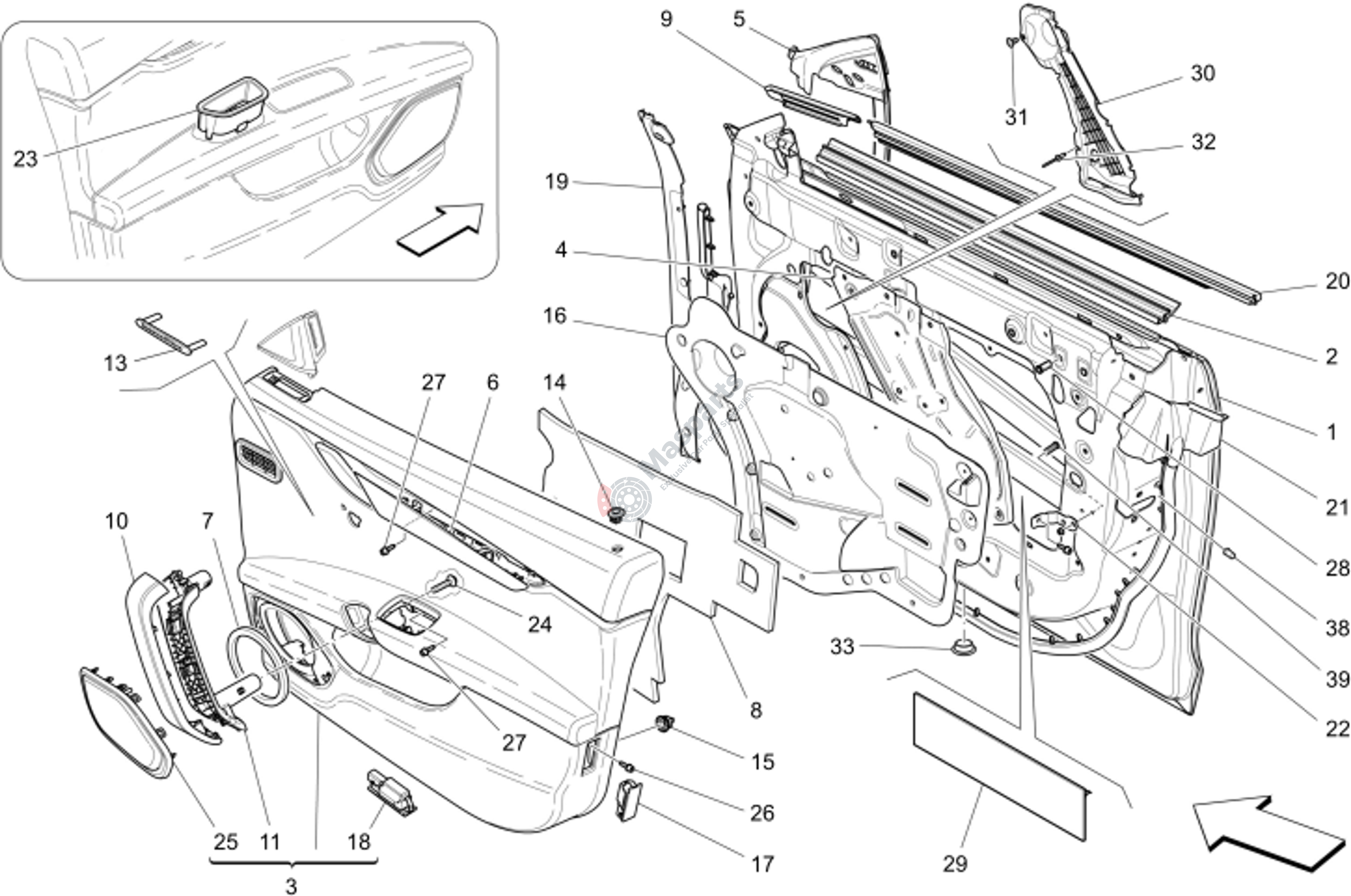

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007995 | Cpl Rh Front Door |
$1,708.13 |
|
|
| 2 | M-670030047 | R.H. Front Glass Scraper Gas |
$82.56 |
|
|
| 5 | M-670036291 | Rh Ext Rear View Mirror Tria |
$104.43 |
|
|
| 7 | M-673001453 | Gasket |
$23.08 |
|
|
| 8 | M-673002007 | Rh Door Panel Soundproofing |
$71.57 |
|
|
| 9 | M-670009915 | Glass Scraper Gasket |
$106.72 |
|
|
| 13 | M-673001459 | Label Bower & Wilkins |
$38.70 |
|
|
| 14 | M-673001441 | Front Door Bushing |
$66.34 |
|
|
| 15 | M-670219478 | Perno Di Fiss. |
$2.82 |
|
|
| 17 | M-670007082 | Door Light |
$31.62 |
|
|
| 18 | M-675000265 | Door Lamp Black |
$11.52 |
|
|
| 19 | M-670004964 | Rh Fr.Door Vertical Anti-Rus |
$64.63 |
|
|
| 21 | M-670037606 | R.H. Front Door Gasket |
$124.51 |
|
|
| 22 | M-670005885 | Bracket Fast. Front Rh Door |
$5.65 |
|
|
| 24 | M-673002001 | Screw For Carrier Pull Handl |
$13.20 |
|
|
| 26 | M-670008293 | Screw |
$2.09 |
|
|
| 27 | M-670008293 | Screw |
$2.09 |
|
|
| 28 | M-670005149 | Rivet |
$2.90 |
|
|
| 29 | M-670034380 | Doors Soundproofing Adhesive |
$3.56 |
|
|
| 32 | M-670007137 | Rivet |
$2.19 |
|
|
| 38 | M-670036706 | Pin |
$3.66 |
|
|
| 39 | M-670155282 | Pin |
$2.90 |
|
