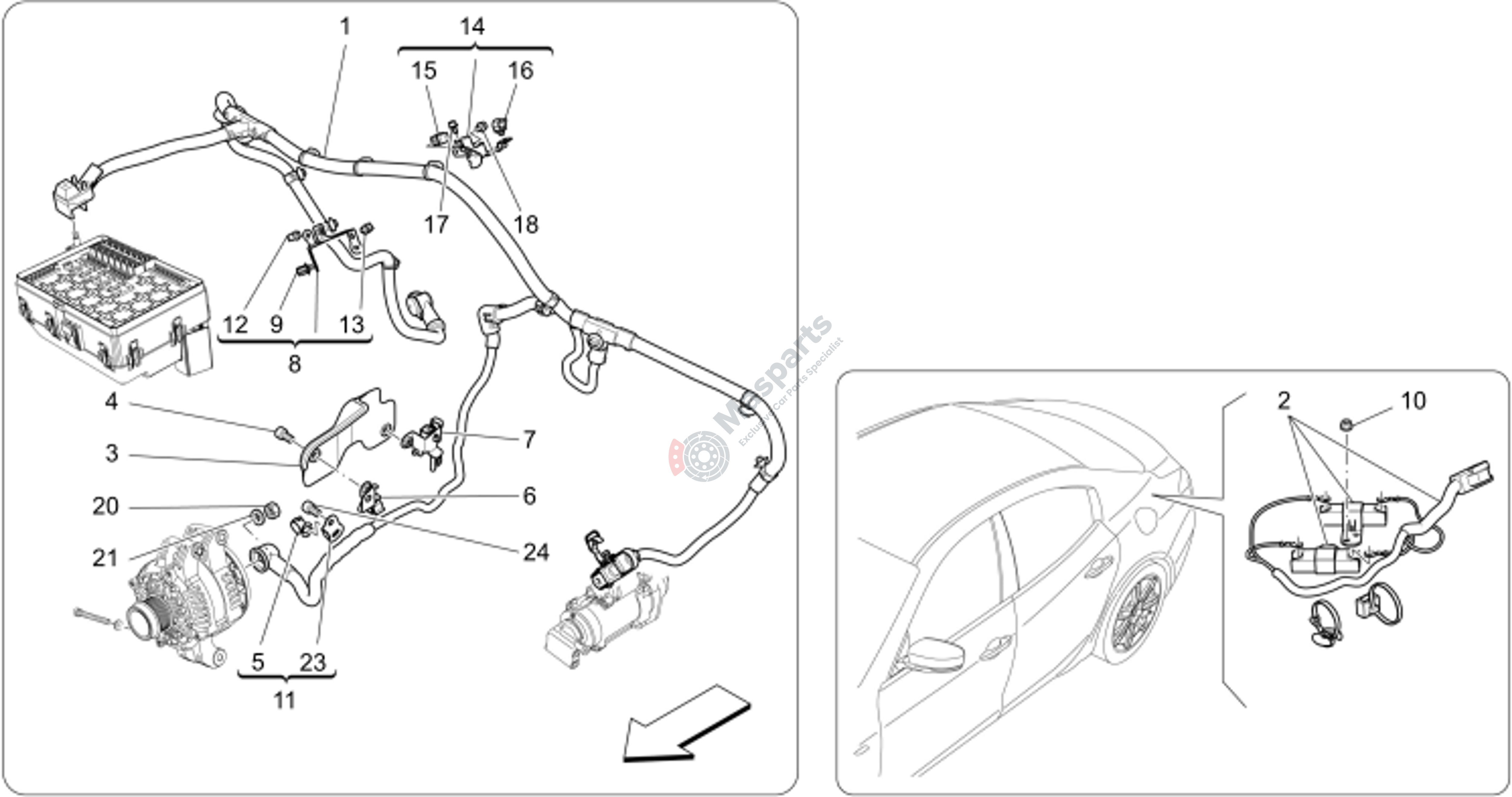

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-307119 | Cable From Alternator To Sta |
$406.37 |
|
|
| 2 | M-670007924 | Cables |
$124.88 |
|
|
| 3 | M-291576 | Heat Shield |
$74.88 |
|
|
| 4 | M-14362134 | Socket Cap Screw |
$5.03 |
|
|
| 6 | M-291596 | Bracket |
$9.61 |
|
|
| 7 | M-291595 | Bracket |
$17.08 |
|
|
| 8 | M-304801 | Bracket |
$14.63 |
|
|
| 9 | M-247440 | Spring |
$1.80 |
|
|
| 10 | M-675000449 | Nut |
$1.23 |
|
|
| 11 | M-303271 | Rear Wiring Harn. Support Br |
$11.88 |
|
|
| 12 | M-226603 | Pipe Retaining Clip D.8 |
$2.45 |
|
|
| 13 | M-292112 | Pipe Retaining Clip D.8 |
$1.72 |
|
|
| 14 | M-292125 | Wirings Fastening Bracket |
$15.90 |
|
|
| 15 | M-247440 | Spring |
$1.80 |
|
|
| 16 | M-292112 | Pipe Retaining Clip D.8 |
$1.72 |
|
|
| 17 | M-233600 | Screw |
$2.35 |
|
|
| 18 | M-280460 | Screw M8X14 |
$17.16 |
|
|
| 20 | M-16102314 | Nut |
$1.53 |
|
|
| 21 | M-12601374 | Washer |
$1.36 |
|
|
| 24 | M-233600 | Screw |
$2.35 |
|
