Diagram image not available

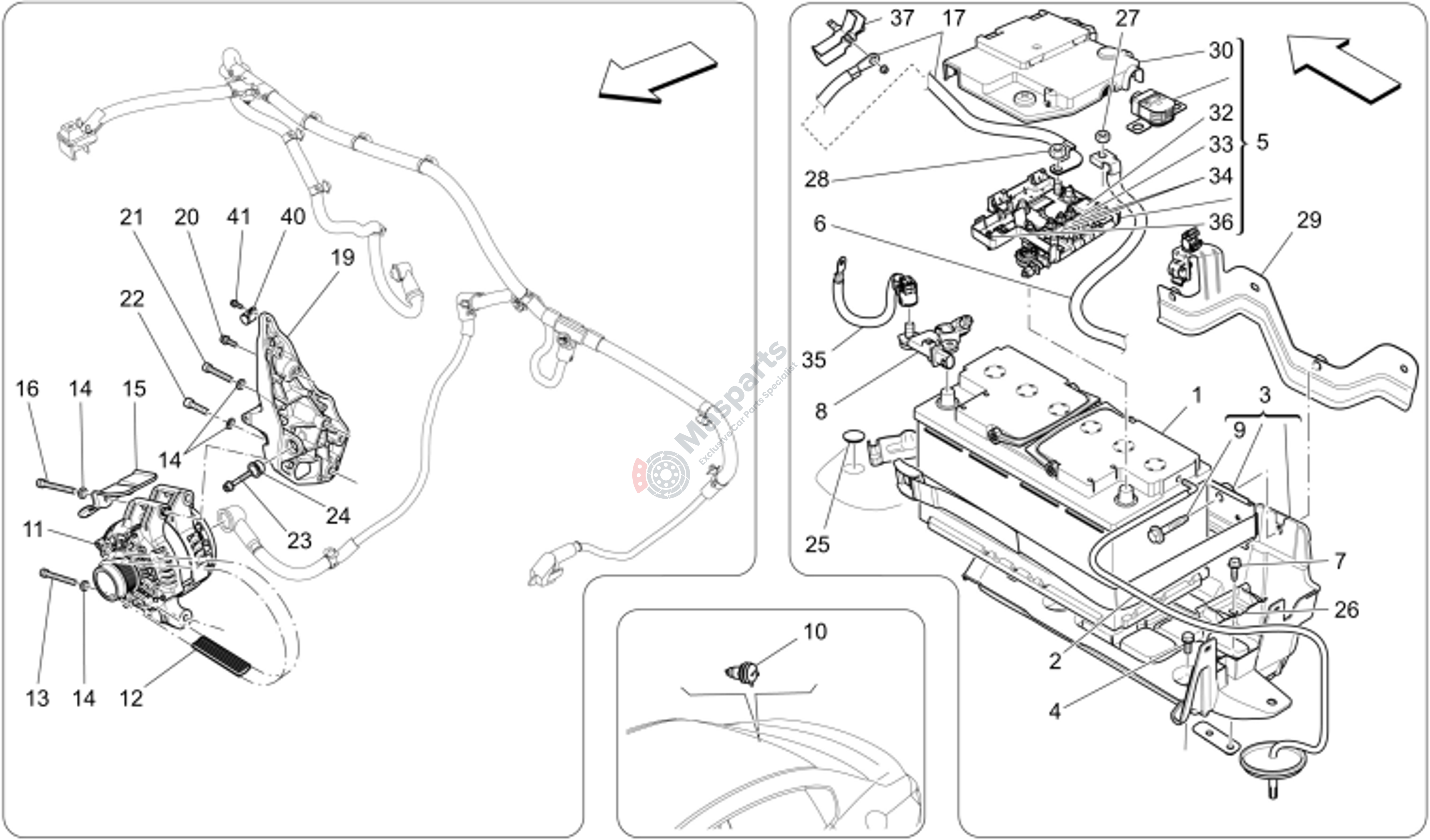

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673000080 | Battery |
$304.32 |
|
|
| 2 | M-670008109 | Hose |
$20.10 |
|
|
| 3 | M-675000297 | Cpl Battery Rack |
$83.10 |
|
|
| 4 | M-675000174 | Screw |
$1.65 |
|
|
| 5 | M-670002029 | Cpl Battery Ecu |
$89.06 |
|
|
| 6 | M-670006554 | Battery Positive Cable |
$30.24 |
|
|
| 7 | M-675000088 | Screw |
$2.61 |
|
|
| 9 | M-675000214 | Screw |
$24.94 |
|
|
| 11 | M-811433 | Alternator |
$1,080.11 |
|
|
| 12 | M-286570 | Alternator Control Belt |
$40.43 |
|
|
| 13 | M-14359524 | Screw |
$3.75 |
|
|
| 14 | M-11193874 | Washer |
$1.34 |
|
|
| 15 | M-284057 | Heat Shield |
$29.37 |
|
|
| 16 | M-14359524 | Screw |
$3.75 |
|
|
| 17 | M-670035070 | Battery Positive Cable |
$265.87 |
|
|
| 19 | M-286933 | Alternator Support |
$55.53 |
|
|
| 20 | M-231619 | Socket Head Screw With Washe |
$2.42 |
|
|
| 21 | M-14306924 | Screw |
$2.51 |
|
|
| 22 | M-14306524 | Screw |
$2.06 |
|
|
| 23 | M-231624 | Socket Head Screw With Washe |
$2.78 |
|
|
| 24 | M-248389 | Bushing |
$8.04 |
|
|
| 25 | M-675000244 | Plug |
$0.98 |
|
|
| 26 | M-675000426 | Battery Bracket |
$6.49 |
|
|
| 27 | M-675000439 | Nut |
$3.67 |
|
|
| 28 | M-675000450 | Nut |
$4.51 |
|
|
| 29 | M-670005834 | Bracket |
$24.05 |
|
|
| 30 | M-675000498 | Battery Cover |
$26.94 |
|
|
| 32 | M-673002762 | 175A Mega-Fuse (Battery Ctr. |
$7.72 |
|
|
| 33 | M-673002763 | 30A Midi-Fuse (Battery Ctr. |
$3.36 |
|
|
| 34 | M-673002764 | 40A Midi-Fuse (Battery Ctr. |
$3.24 |
|
|
| 36 | M-673003650 | Fuse-Puller |
$1.70 |
|
|
| 37 | M-675000578 | Connector |
$23.62 |
|
|
| 40 | M-291068 | Bracket |
$2.56 |
|
|
| 41 | M-233600 | Screw |
$2.32 |
|
