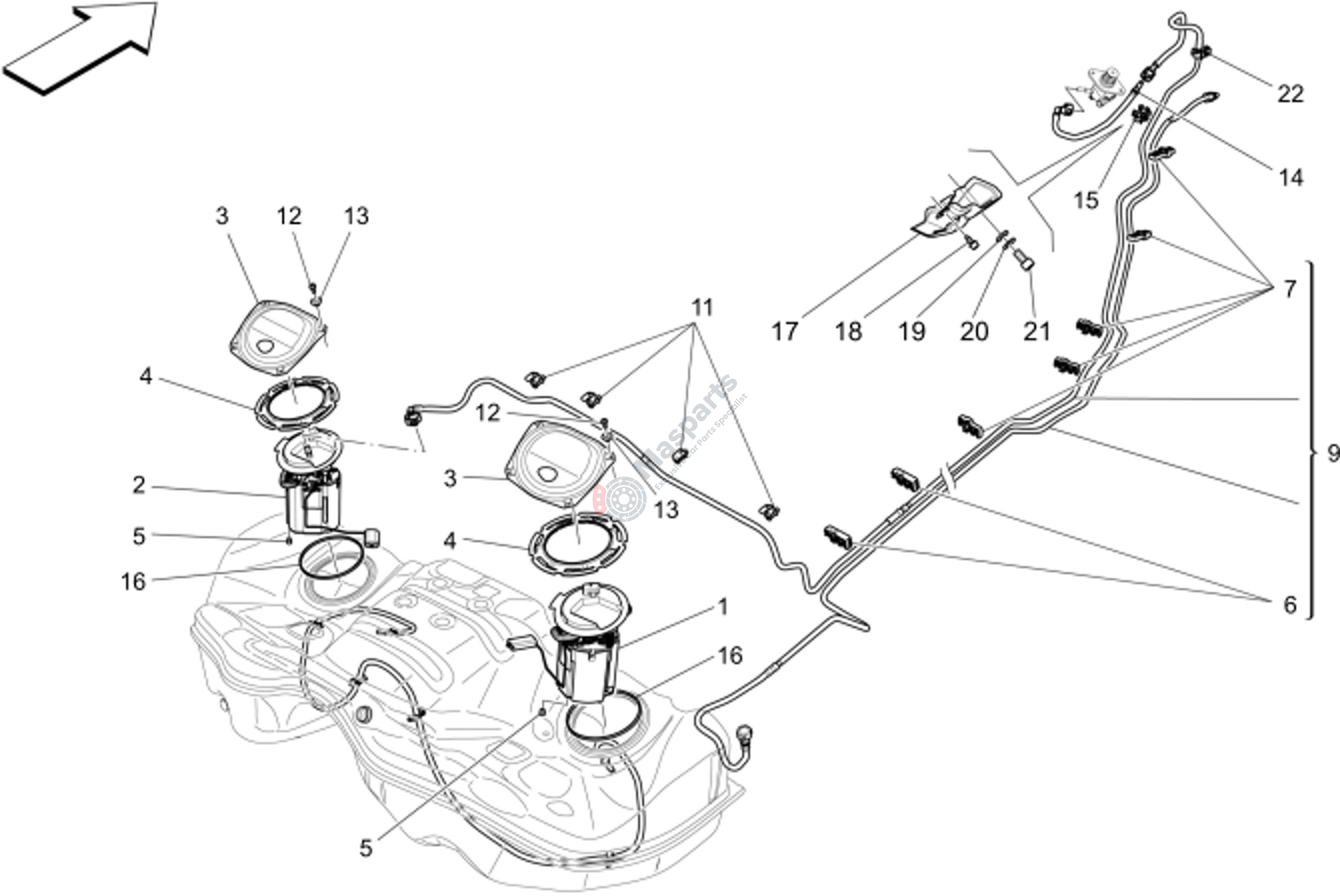

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670003733 | Rh Fuel Level Indicator (V8 |
$457.14 |
|
|
| 2 | M-670178911 | Lh Fuel Pump (V6 Gasoline) |
$578.65 |
|
|
| 3 | M-670003258 | Fuel Tank Slot Cover |
$18.12 |
|
|
| 4 | M-670001397 | Fastening Ring Nut |
$45.85 |
|
|
| 5 | M-670003255 | Fuel Adjustment Dowel |
$3.32 |
|
|
| 6 | M-670005063 | Clip |
$4.59 |
|
|
| 7 | M-670005064 | Clip |
$4.59 |
|
|
| 9 | M-670107746 | Underfloor Fuel Pipes |
$173.40 |
|
|
| 11 | M-670005082 | Spring |
$1.58 |
|
|
| 12 | M-675000071 | Screw |
$1.71 |
|
|
| 13 | M-675000022 | Rear Plate Fastening Block |
$8.58 |
|
|
| 14 | M-670031641 | Petrol Supply Pipe To Hp Pum |
$21.40 |
|
|
| 15 | M-670005014 | Clip |
$2.82 |
|
|
| 16 | M-670001398 | Gasoline Pump Gasket |
$20.55 |
|
|
| 17 | M-670030163 | Front Fuel Pipe Guard |
$9.02 |
|
|
| 18 | M-675000173 | Screw |
$2.06 |
|
|
| 19 | M-675000007 | Washer 10X21 |
$4.70 |
|
|
| 20 | M-11198374 | Washer |
$2.72 |
|
|
| 21 | M-675000619 | Screw M 10X1.25X20 |
$3.46 |
|
|
| 22 | M-670100118 | Clip |
$2.82 |
|
