Diagram image not available

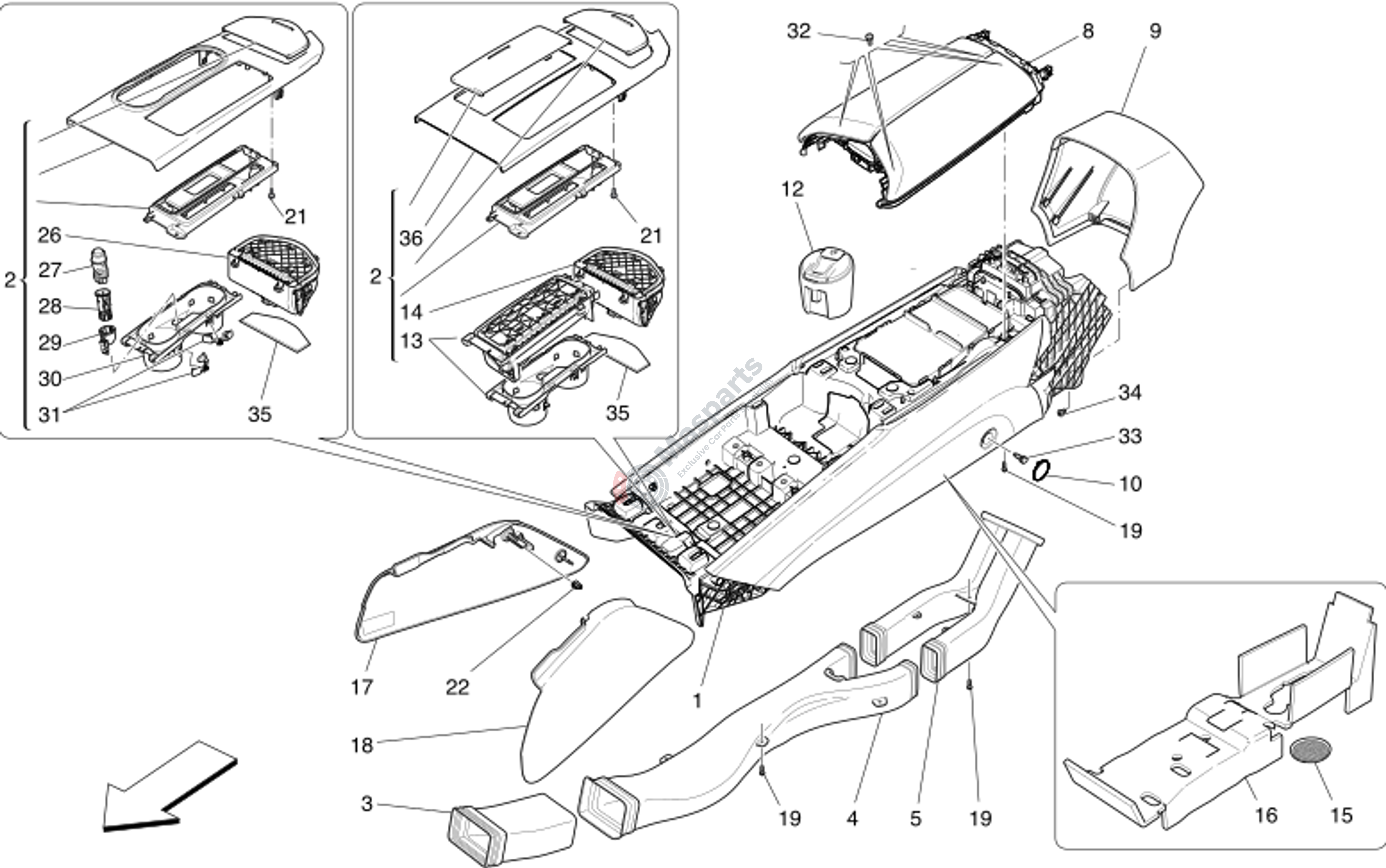

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670001703 | Connecting Duct Between Rear |
$33.68 |
|
|
| 4 | M-670001713 | Rear Air Opening Ducting |
$419.39 |
|
|
| 5 | M-670005297 | Rear Air Duct Junction |
$74.78 |
|
|
| 15 | M-670006071 | Carpet |
$76.29 |
|
|
| 16 | M-673000119 | Tunnel Insulation Basis |
$214.74 |
|
|
| 19 | M-670006127 | Screw |
$5.74 |
|
|
| 21 | M-670006373 | Screw |
$2.12 |
|
|
| 22 | M-673002721 | Clip |
$9.42 |
|
|
| 28 | M-675000158 | Socket |
$13.31 |
|
|
| 32 | M-673002877 | Pin |
$0.99 |
|
|
| 33 | M-675000199 | Screw |
$2.37 |
|
|
| 34 | M-670006128 | Screw |
$17.20 |
|
