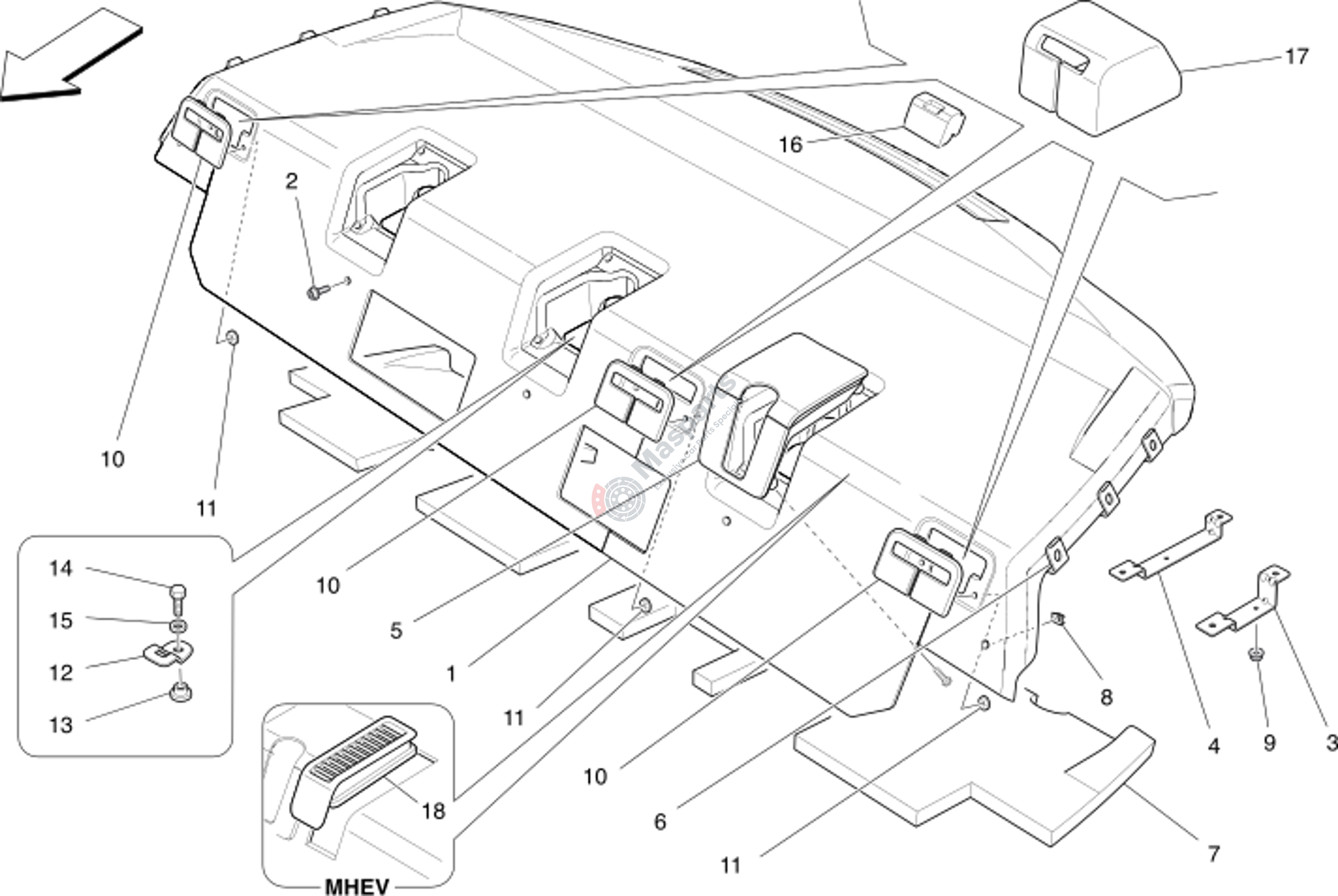

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000480 | Screw |
$1.17 |
|
|
| 3 | M-673001073 | Bracket |
$17.67 |
|
|
| 4 | M-673001072 | Bracket |
$20.30 |
|
|
| 5 | M-69925900 | Isofix Plug |
$80.00 |
|
|
| 6 | M-67202800 | Clip. |
$3.57 |
|
|
| 7 | M-673001076 | Insulation Kit |
$39.48 |
|
|
| 8 | M-675000408 | Fastening Block |
$2.17 |
|
|
| 9 | M-675000093 | Nut |
$1.44 |
|
|
| 10 | M-673001074 | Seat Belt Trim Plate |
$3.30 |
|
|
| 11 | M-673001075 | Clip |
$1.75 |
|
|
| 13 | M-670006660 | Spacer |
$7.25 |
|
|
| 14 | M-670008750 | Screw |
$2.91 |
|
|
| 15 | M-675000395 | Washer |
$3.63 |
|
|
| 16 | M-670009677 | Pad |
$6.41 |
|
|
| 17 | M-670033142 | Rear Seatbelt Buckle Cover |
$48.38 |
|
