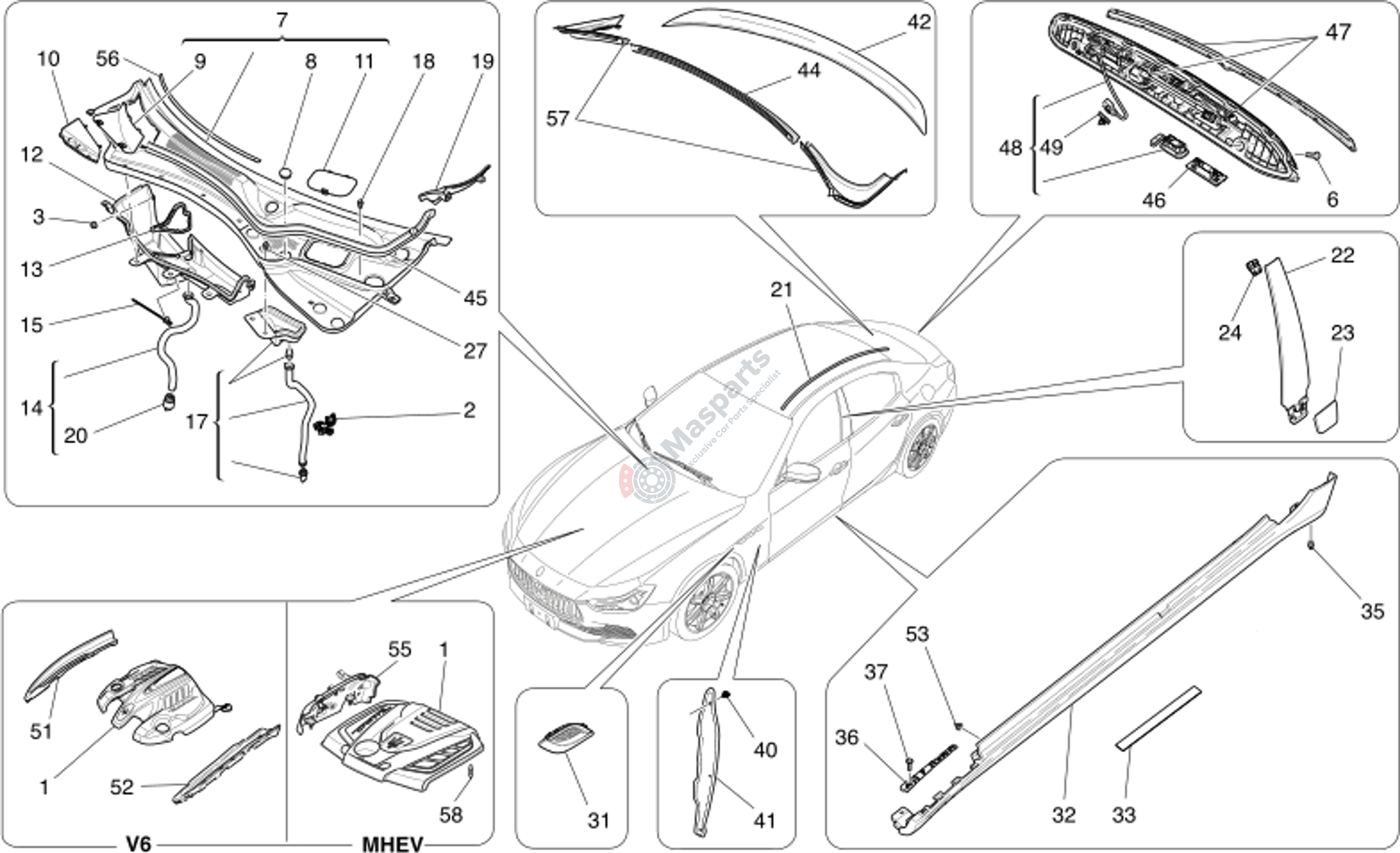

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670005143 | Intake Manifold Guard |
$409.67 |
|
|
| 2 | M-670005638 | Clip |
$4.62 |
|
|
| 3 | M-675000442 | Nut |
$1.49 |
|
|
| 6 | M-670006846 | Screw |
$2.13 |
|
|
| 8 | M-675000311 | Plug |
$3.32 |
|
|
| 11 | M-670013428 | Brake Fluid Topping-Up Door |
$16.35 |
|
|
| 12 | M-670030773 | Under Windscreen Plate Step |
$89.08 |
|
|
| 13 | M-670004127 | Water Shield |
$15.83 |
|
|
| 14 | M-670009206 | Sleeve |
$28.44 |
|
|
| 15 | M-670005402 | Clamp |
$1.74 |
|
|
| 17 | M-670009518 | Cplunder-Windshield Water Ta |
$47.26 |
|
|
| 18 | M-675000150 | Fixing Button. |
$1.00 |
|
|
| 20 | M-670006052 | Non Return Valve |
$18.56 |
|
|
| 21 | M-670010746 | Complete Rh Roof Moulding |
$267.32 |
|
|
| 24 | M-670004125 | Bracket |
$28.92 |
|
|
| 27 | M-675000150 | Fixing Button. |
$1.00 |
|
|
| 32 | M-673010782 | Rh Side Skirt |
$2,826.96 |
|
|
| 35 | M-675000058 | Fastening Clip |
$2.87 |
|
|
| 36 | M-670006112 | Bracket |
$7.42 |
|
|
| 37 | M-675000111 | Screw |
$2.66 |
|
|
| 40 | M-675000058 | Fastening Clip |
$2.87 |
|
|
| 41 | M-670001706 | Front R.H. Mudguard Reinforc |
$54.81 |
|
|
| 44 | M-670004382 | Luggage Comp. Centr. Cover-D |
$71.38 |
|
|
| 45 | M-670002093 | Air Intake Compartment Gaske |
$43.22 |
|
|
| 46 | M-673001401 | Light Plate |
$54.46 |
|
|
| 48 | M-673001402 | Microswitch Kit |
$94.01 |
|
|
| 49 | M-673000066 | Fixing Element |
$63.40 |
|
|
| 51 | M-670009240 | Rh Bumper Hood |
$73.67 |
|
|
| 52 | M-670009239 | Lh Bumper Hood |
$73.67 |
|
|
| 53 | M-673003779 | Pin |
$3.76 |
|
|
| 57 | M-673013153 | Rh+Lh Cable-Duct Trunk Compa |
$127.62 |
|
|
| 58 | M-675000971 | Pin |
$3.25 |
|
