Diagram image not available

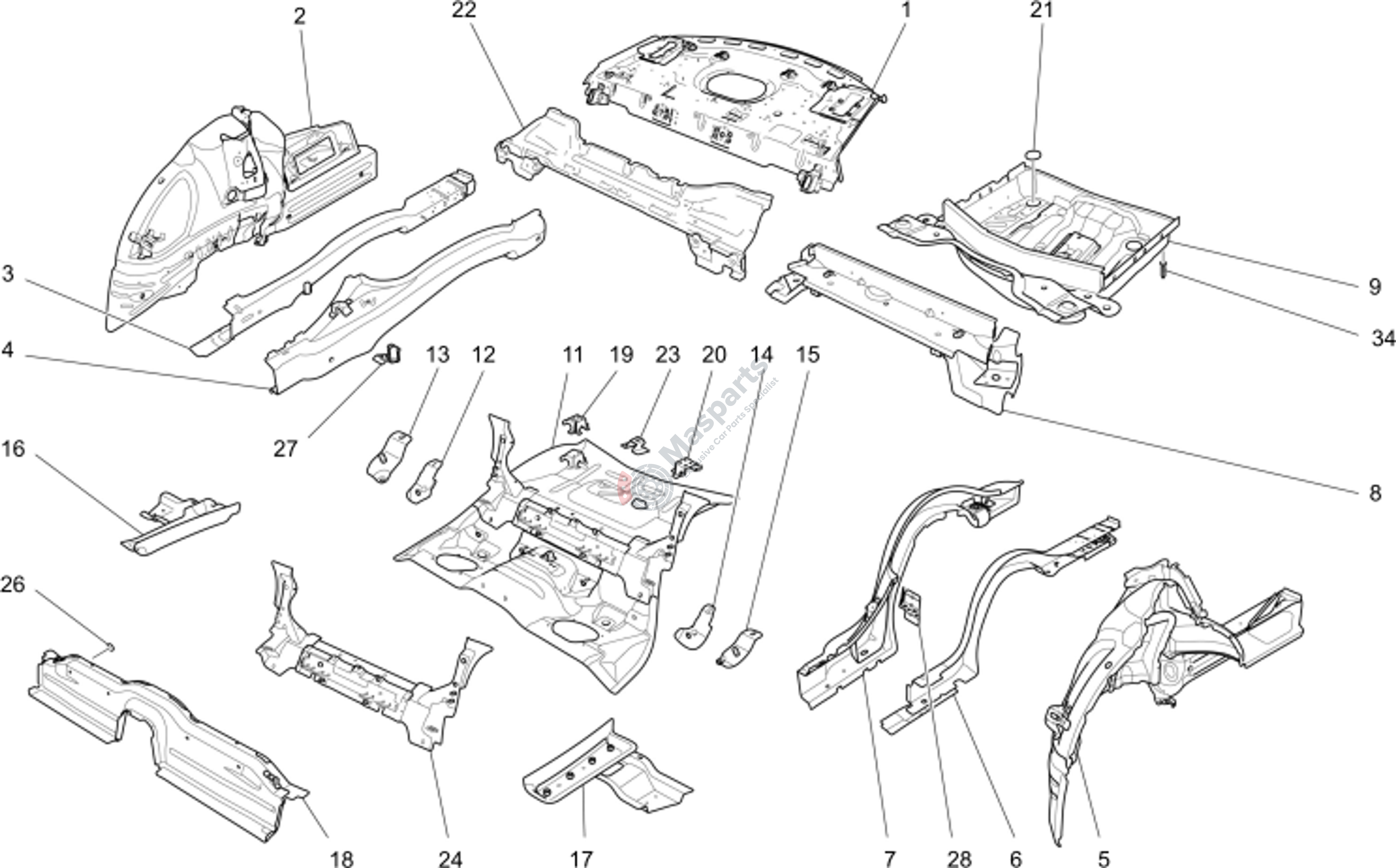

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673004692 | Rear Under Window Panel. |
$442.67 |
|
|
| 3 | M-673007578 | Rh Rear Floor Longitudinal M |
$221.18 |
|
|
| 4 | M-673009042 | Rh Outer Rear Side Member ˇ |
$513.86 |
|
|
| 6 | M-673007577 | Lh Rear Floor Longitudinal M |
$391.83 |
|
|
| 7 | M-673009043 | Lh Outer Rear Side Member ˇ |
$448.08 |
|
|
| 11 | M-673005385 | Rear Floor |
$253.84 |
|
|
| 12 | M-673000380 | Rh Rear Seat Belt Fastening |
$286.96 |
|
|
| 13 | M-673000419 | Rh Rear Seat Fastening Reinf |
$248.83 |
|
|
| 14 | M-673000381 | Lh Rear Seat Belt Fastening |
$250.73 |
|
|
| 15 | M-673000420 | Lh Rear Seat Fastening Reinf |
$248.83 |
|
|
| 16 | M-673000379 | Rh Small Side Member Gearshi |
$69.26 |
|
|
| 17 | M-673000382 | Lh Small Side Member Gearshi |
$69.26 |
|
|
| 18 | M-673000790 | Rear Underseat Cross Member |
$152.54 |
|
|
| 19 | M-673000436 | Rh Luggage Net Fastening Rei |
$37.16 |
|
|
| 20 | M-673000437 | Lh Luggage Net Fastening Rei |
$24.05 |
|
|
| 21 | M-670005954 | Plug |
$4.42 |
|
|
| 22 | M-673000407 | Cpl Rear Seat Back Cross Mem |
$123.94 |
|
|
| 23 | M-673001060 | Rear Seats Cushion Support B |
$25.73 |
|
|
| 24 | M-673001059 | Isofix Crossmember |
$270.75 |
|
|
| 26 | M-675000244 | Plug |
$0.96 |
|
|
| 27 | M-670007021 | Bracket |
$503.55 |
|
|
| 28 | M-670007023 | Bracket |
$503.55 |
|
|
| 34 | M-675000624 | Specila Screw |
$1.67 |
|
