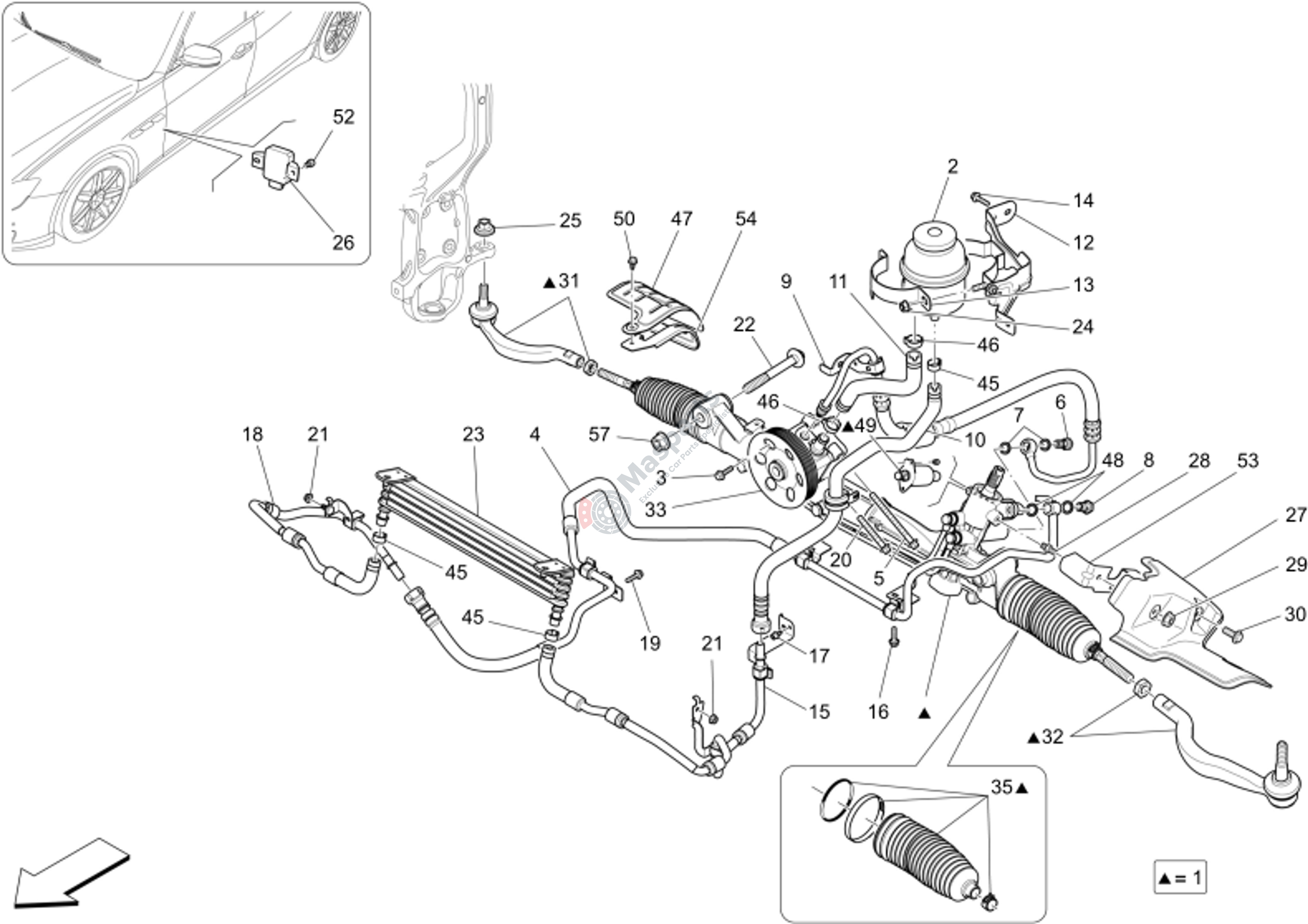

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102931 | Lhd Cpl Rack Steering Box |
$3,006.95 |
|
|
| 2 | M-670001919 | Oil Tank For Hydraulic Servo |
$46.06 |
|
|
| 3 | M-46328686 | Flange Bolt |
$2.07 |
|
|
| 4 | M-670004284 | Pipe From Steering Box To Ex |
$169.97 |
|
|
| 5 | M-46328709 | Flange Bolt |
$4.85 |
|
|
| 6 | M-675000203 | Union |
$16.09 |
|
|
| 7 | M-675000152 | Gasket |
$1.63 |
|
|
| 8 | M-675000021 | Union |
$5.93 |
|
|
| 9 | M-670004281 | Pipe From Steering Box To Pu |
$135.59 |
|
|
| 10 | M-670004282 | Flex. Hose From Rigid Pipe T |
$57.52 |
|
|
| 11 | M-670004283 | Pipe From Tank To Pump |
$19.96 |
|
|
| 12 | M-670008977 | Power Steer. Oil Tank Bracke |
$217.04 |
|
|
| 13 | M-670008978 | Bracket Flange |
$13.77 |
|
|
| 14 | M-675000278 | Screw |
$1.53 |
|
|
| 15 | M-670006980 | Pipe |
$103.13 |
|
|
| 16 | M-675000278 | Screw |
$1.53 |
|
|
| 17 | M-675000308 | Screw |
$1.62 |
|
|
| 18 | M-670006978 | Rigid Pipe From Steer.Box To |
$91.14 |
|
|
| 19 | M-675000278 | Screw |
$1.53 |
|
|
| 20 | M-46328701 | Flange Bolt |
$3.62 |
|
|
| 21 | M-675000273 | Nut |
$0.97 |
|
|
| 22 | M-670001945 | Screw |
$8.84 |
|
|
| 23 | M-670009814 | Exchanger Heat Air/Oil |
$231.08 |
|
|
| 24 | M-670030742 | Nut |
$1.48 |
|
|
| 25 | M-675000127 | Nut |
$2.17 |
|
|
| 27 | M-670001946 | Steering Box Guard |
$418.58 |
|
|
| 28 | M-670005277 | Screw |
$7.57 |
|
|
| 30 | M-675000088 | Screw |
$2.58 |
|
|
| 31 | M-673000006 | Cpl. Rh External Tie-Rod |
$122.23 |
|
|
| 32 | M-673000005 | Lh Tie Rod |
$122.23 |
|
|
| 33 | M-670004286 | Hydraulic Servo-Control Pump |
$1,240.23 |
|
|
| 35 | M-673000004 | Steering Box Pipes Replaceme |
$38.81 |
|
|
| 45 | M-675000266 | Hose Fastening Collar |
$2.26 |
|
|
| 46 | M-675000267 | Hose Fastening Collar |
$2.75 |
|
|
| 47 | M-670006235 | Lhd Rack Steering Box Heat S |
$33.14 |
|
|
| 48 | M-675000250 | Washer 12X18X1 |
$1.38 |
|
|
| 49 | M-673001466 | Solenoid |
$259.42 |
|
|
| 50 | M-675000088 | Screw |
$2.58 |
|
|
| 52 | M-675000454 | Screw |
$1.49 |
|
|
| 53 | M-670005854 | Bracket |
$10.94 |
|
|
| 54 | M-670005772 | Lhd Cpl Bracket |
$72.82 |
|
|
| 57 | M-675000148 | Nut |
$2.46 |
|
