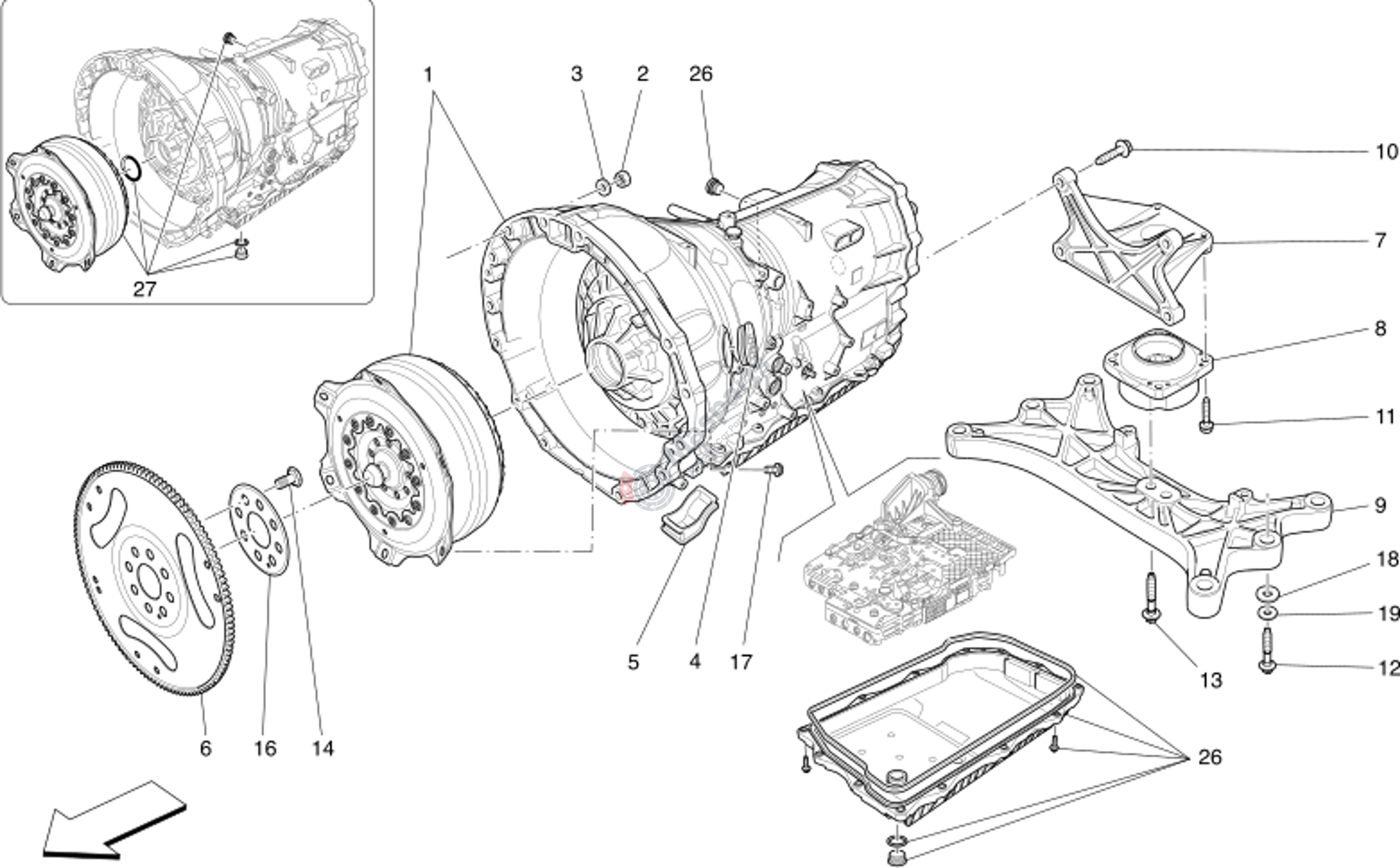

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670005089 | Cpl Automatic Transmission D |
$8,665.96 |
|
|
| 2 | M-675000184 | Nut |
$1.75 |
|
|
| 3 | M-675000098 | Washer |
$1.87 |
|
|
| 4 | M-670003520 | Plug |
$5.06 |
|
|
| 5 | M-670003521 | Closing Cap |
$5.09 |
|
|
| 7 | M-670004299 | Gearbox Mounting Bracket |
$98.57 |
|
|
| 8 | M-675000031 | Gearbox Side Suspension Bush |
$37.17 |
|
|
| 9 | M-670001738 | Gearbox Mounting Cross Membe |
$234.47 |
|
|
| 10 | M-675000252 | Screw |
$5.12 |
|
|
| 11 | M-675000540 | Screw M8X40 |
$1.76 |
|
|
| 12 | M-675000145 | Screw |
$3.99 |
|
|
| 13 | M-675000145 | Screw |
$3.99 |
|
|
| 14 | M-46328377 | Flex Plate Screw |
$3.42 |
|
|
| 17 | M-675000338 | Screw |
$2.30 |
|
|
| 18 | M-675000247 | Washer |
$1.62 |
|
|
| 19 | M-675000254 | Washer |
$1.73 |
|
|
| 26 | M-673003178 | Cpl Auto Transmiss. Oil Sump |
$417.44 |
|
|
| 27 | M-673003837 | Cpl Auto Transmiss. Converte |
$2,234.28 |
|
