Diagram image not available

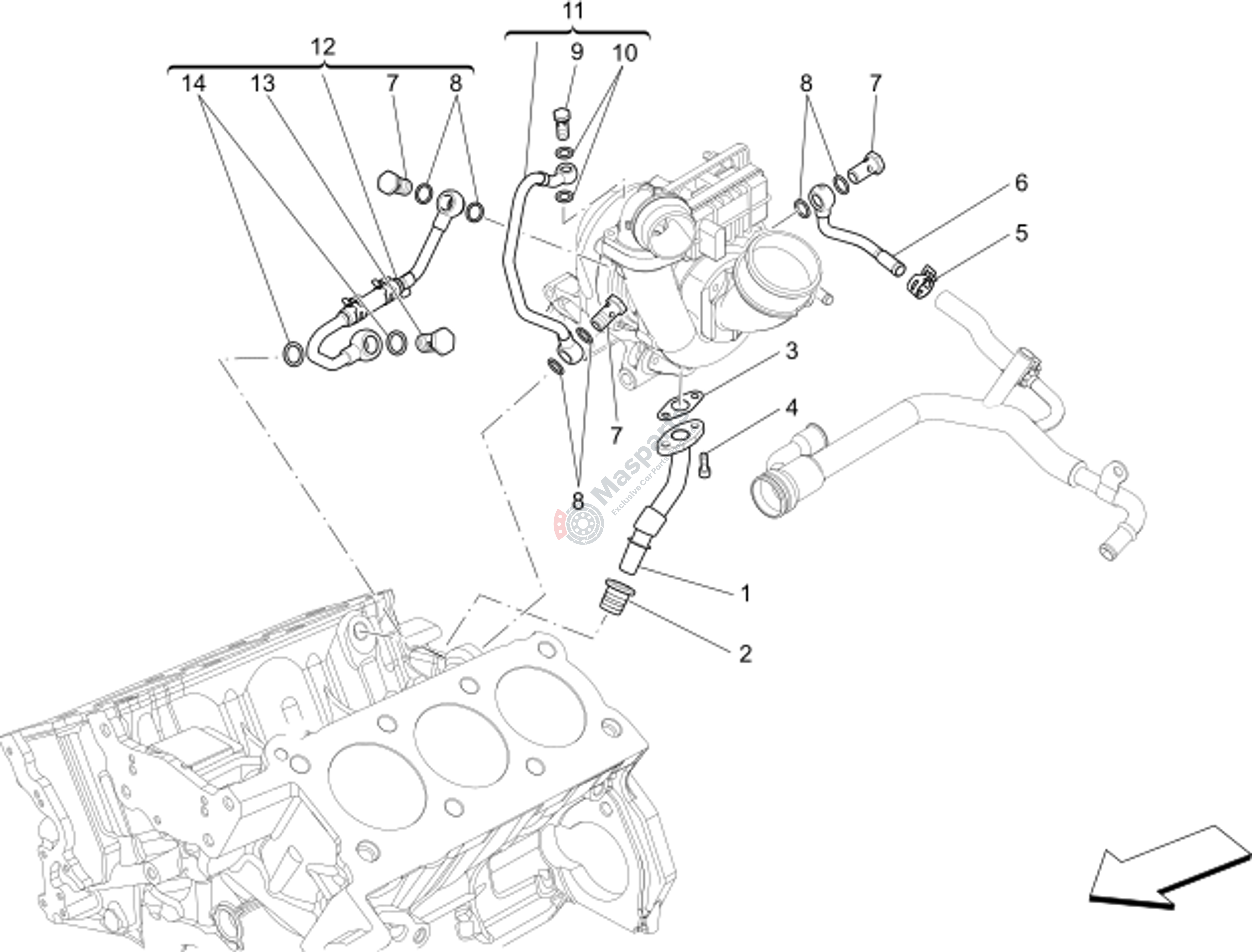

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46340892 | Oil Tube |
$97.27 |
|
|
| 2 | M-46328216 | Bushing |
$11.05 |
|
|
| 3 | M-46330312 | Turbo Oil Outlet Gasket |
$10.00 |
|
|
| 4 | M-675000787 | Tcei Screw |
$3.44 |
|
|
| 5 | M-46328742 | Clamp |
$1.46 |
|
|
| 6 | M-46328223 | Sleeve |
$48.25 |
|
|
| 7 | M-46328179 | Filler Neck |
$28.66 |
|
|
| 8 | M-673001169 | Gasket |
$1.10 |
|
|
| 9 | M-46328219 | Filler Neck |
$10.84 |
|
|
| 10 | M-673001168 | Gasket |
$1.10 |
|
|
| 11 | M-46328217 | Tube |
$182.98 |
|
|
| 12 | M-46351875 | Pipe |
$232.10 |
|
|
| 13 | M-46328178 | Filler Neck |
$60.98 |
|
|
| 14 | M-673002035 | Gasket |
$4.89 |
|
