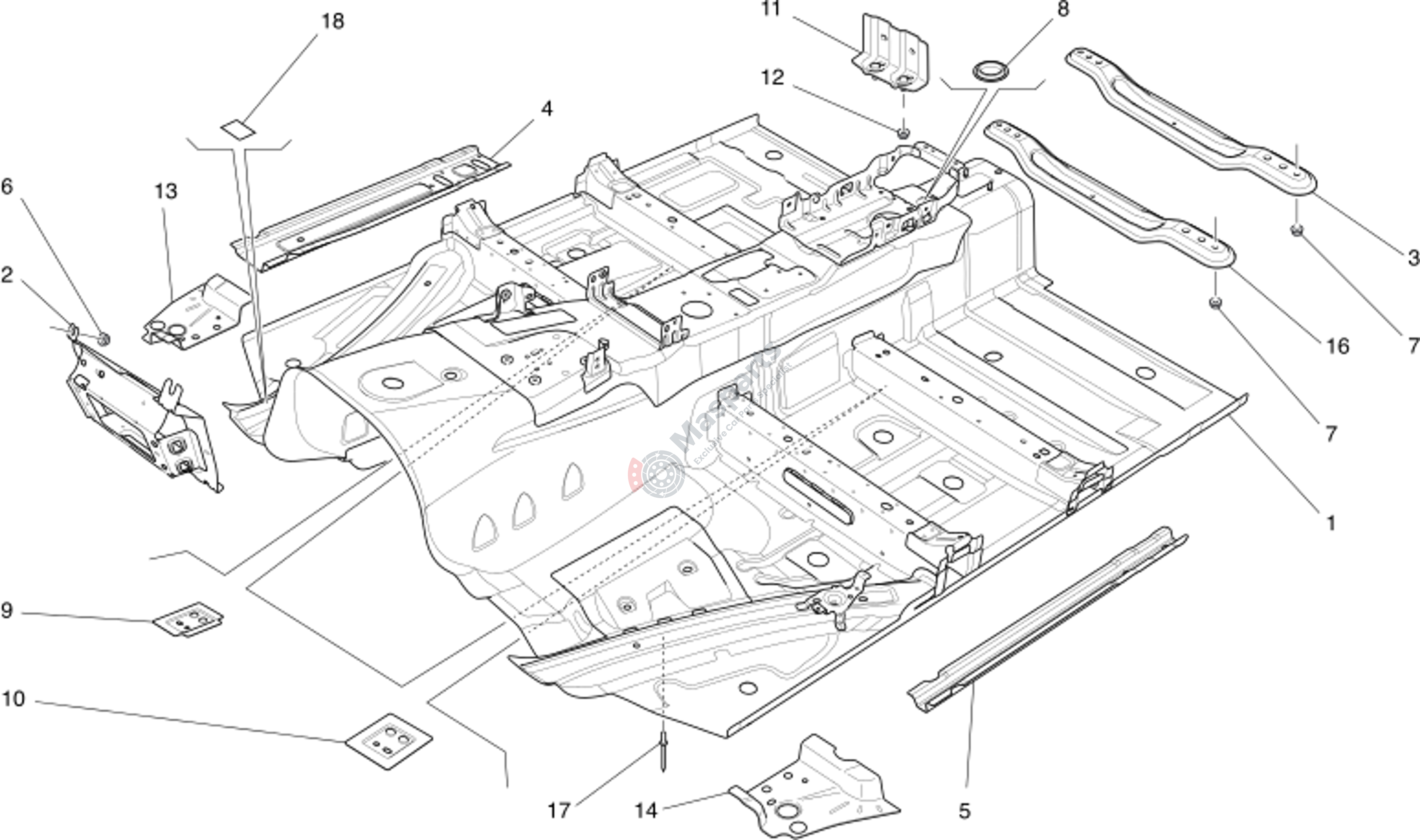

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673006044 | Complete Front Floor 4X2 M15 |
$2,201.41 |
|
|
| 2 | M-670101542 | Lhd Nbc Bracket |
$52.51 |
|
|
| 3 | M-670006640 | Underfloor Tunnel Rear Reinf |
$87.85 |
|
|
| 4 | M-673001720 | Rh Underfloor Small Side Mem |
$58.15 |
|
|
| 5 | M-673001721 | Lh Underfloor Small Side Mem |
$46.25 |
|
|
| 6 | M-675000412 | Hex Nut |
$1.21 |
|
|
| 8 | M-670006214 | Sticker Cap |
$2.43 |
|
|
| 9 | M-670003751 | Rh Plate |
$50.03 |
|
|
| 10 | M-670003900 | Lh Plate |
$50.33 |
|
|
| 11 | M-673004077 | Underfloor Bracket Rear Tunn |
$188.10 |
|
|
| 13 | M-670031919 | Reinforcement Dx |
$14.17 |
|
|
| 14 | M-670031920 | Reinforcement Dx |
$14.17 |
|
|
| 16 | M-670006640 | Underfloor Tunnel Rear Reinf |
$87.85 |
|
|
| 17 | M-675000622 | Rivet |
$2.55 |
|
|
| 18 | M-675000789 | Protective Film |
$2.80 |
|
