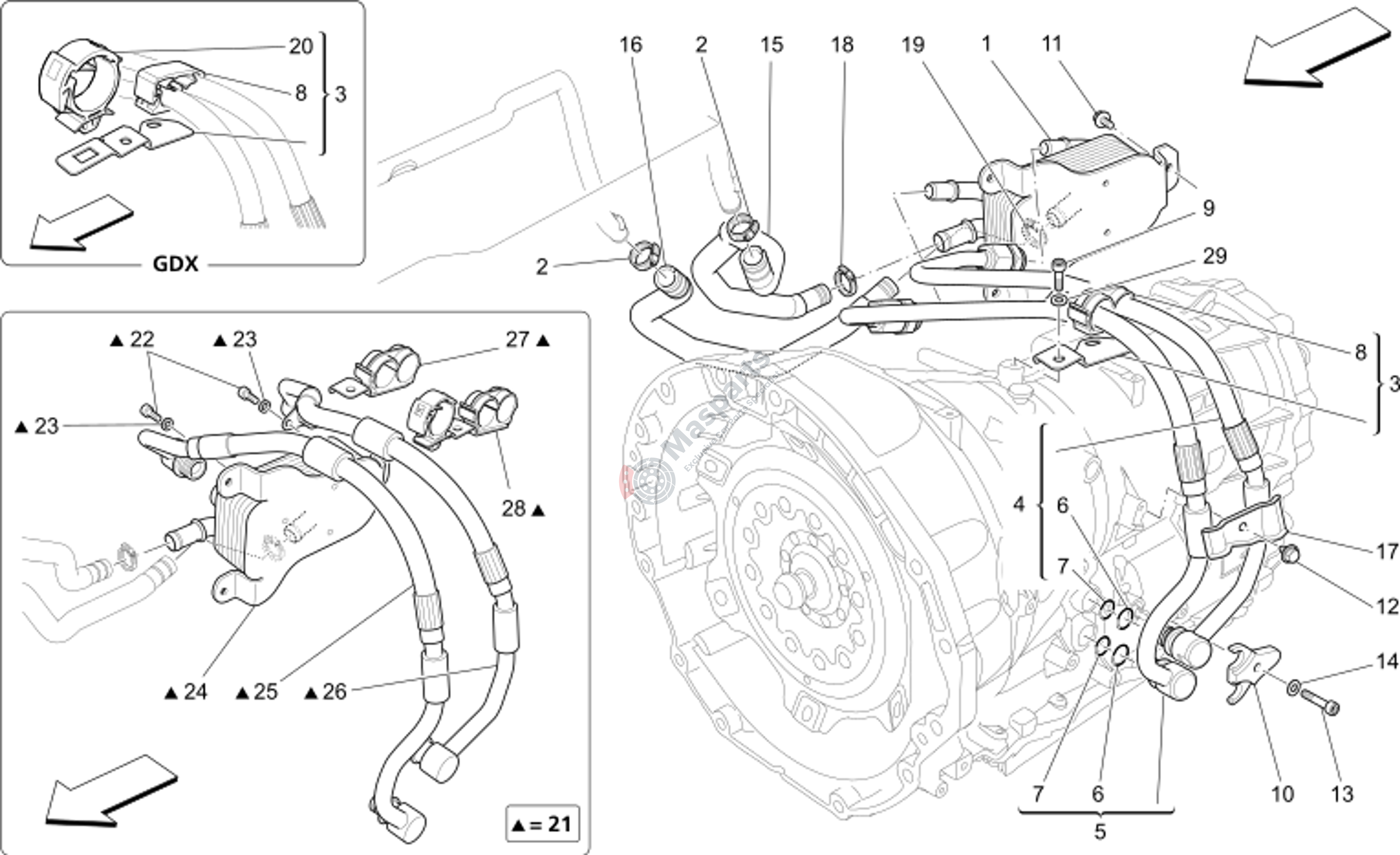

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000319 | Clip |
$9.28 |
|
|
| 3 | M-670003113 | Gearbox Oil Flex Hose Fixing |
$8.86 |
|
|
| 4 | M-670009273 | Outlet Gearbox Oil Cooling F |
$70.80 |
|
|
| 5 | M-670009271 | Inlet Gearbox Oil Cooling Fl |
$66.42 |
|
|
| 7 | M-670003311 | O-R Gasket |
$1.11 |
|
|
| 8 | M-670003115 | Retaining Clip |
$4.44 |
|
|
| 9 | M-675000191 | Screw |
$1.98 |
|
|
| 10 | M-670002255 | Oil Pipes Mounting Bracket |
$10.67 |
|
|
| 11 | M-675000365 | Screw |
$2.61 |
|
|
| 12 | M-675000102 | Screw |
$2.60 |
|
|
| 13 | M-675000085 | Screw |
$2.04 |
|
|
| 14 | M-675000099 | Washer |
$1.77 |
|
|
| 15 | M-670007587 | Flex Hose |
$40.51 |
|
|
| 16 | M-670007586 | Water Deliv. Pipe From Eng.T |
$98.57 |
|
|
| 17 | M-670003083 | Bracket |
$7.97 |
|
|
| 18 | M-675000372 | Strap Collar |
$1.76 |
|
|
| 19 | M-675000658 | Snap Collar |
$5.49 |
|
|
| 21 | M-673004769 | Kit G.Box Oil Pipes To Heat |
$365.58 |
|
|
| 29 | M-675000565 | Washer |
$1.10 |
|
