Diagram image not available

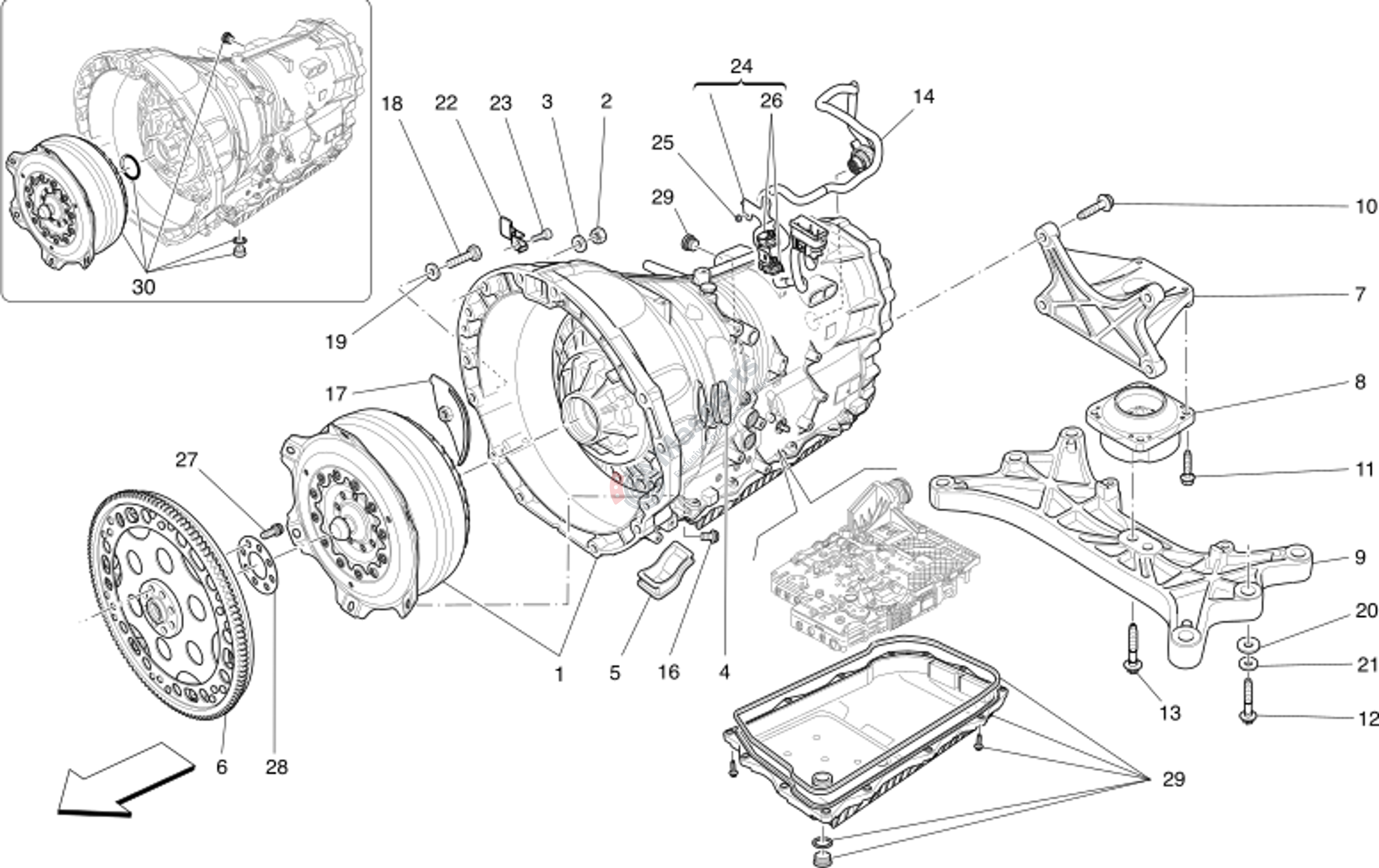

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670002340 | Complete Autom Transmission |
€6.137,74 |
|
|
| 2 | M-675000184 | Nut |
€1,51 |
|
|
| 3 | M-675000098 | Washer |
€1,62 |
|
|
| 4 | M-670003520 | Plug |
€4,38 |
|
|
| 5 | M-670003521 | Closing Cap |
€4,38 |
|
|
| 6 | M-673010357 | V6 Gasoline Engine Flywheel |
€701,25 |
|
|
| 7 | M-670001542 | Gearbox Side Engine Mounting |
€98,60 |
|
|
| 8 | M-675000031 | Gearbox Side Suspension Bush |
€32,20 |
|
|
| 9 | M-670003953 | Gearbox Mounting Cross Membe |
€179,35 |
|
|
| 10 | M-675000120 | Screw |
€2,43 |
|
|
| 11 | M-675000540 | Screw M8X40 |
€1,49 |
|
|
| 12 | M-675000145 | Screw |
€3,45 |
|
|
| 13 | M-675000145 | Screw |
€3,45 |
|
|
| 14 | M-670007400 | Gearbox Cable |
€68,37 |
|
|
| 16 | M-670005384 | Screw |
€2,09 |
|
|
| 17 | M-670003684 | Closing Plate |
€4,88 |
|
|
| 18 | M-675000380 | Screw |
€1,74 |
|
|
| 19 | M-675000378 | Washer |
€1,09 |
|
|
| 20 | M-675000247 | Washer |
€1,42 |
|
|
| 21 | M-675000254 | Washer |
€1,51 |
|
|
| 22 | M-670005079 | Bracket |
€3,86 |
|
|
| 24 | M-670005501 | Cpl Bracket |
€9,75 |
|
|
| 25 | M-675000093 | Nut |
€1,25 |
|
|
| 27 | M-670002932 | Screw |
€4,88 |
|
|
| 28 | M-670002257 | Shim |
€3,86 |
|
|
| 29 | M-673003178 | Cpl Auto Transmiss. Oil Sump |
€364,32 |
|
|
| 30 | M-673003836 | Cpl Auto Transmiss. Converte |
€2.175,80 |
|
