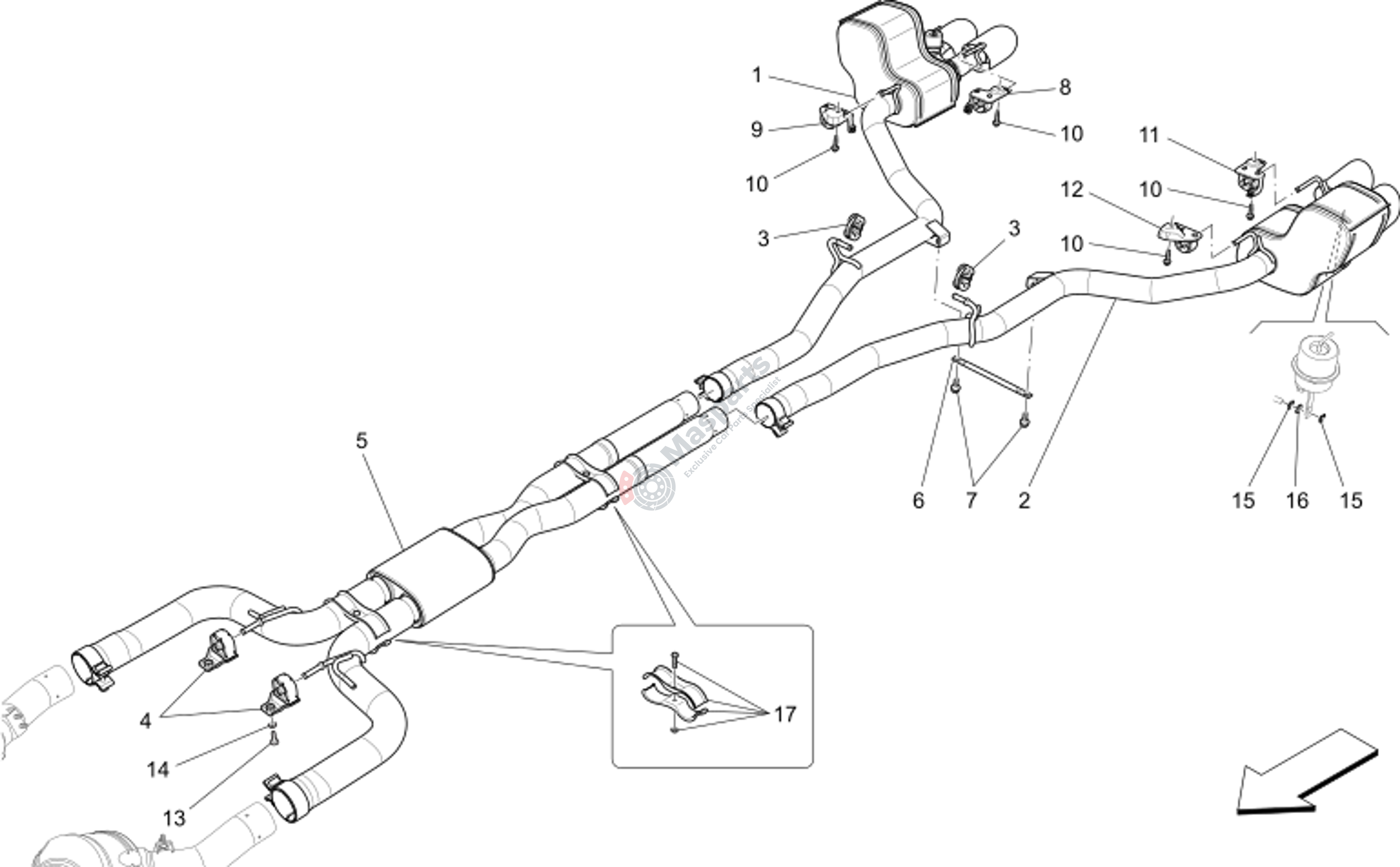

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670103689 | Rear Rh Muffler |
$1,648.00 |
|
|
| 2 | M-670103688 | Rear Lh Muffler ˇ |
$1,648.00 |
|
|
| 3 | M-675001949 | Small Block |
$17.81 |
|
|
| 4 | M-670001494 | Central Support |
$35.52 |
|
|
| 5 | M-670103686 | Central Muffler |
$919.69 |
|
|
| 6 | M-670005639 | Spacer |
$40.92 |
|
|
| 7 | M-675000463 | Screw |
$1.75 |
|
|
| 8 | M-670005370 | Rh Rear Bracket |
$122.23 |
|
|
| 9 | M-670001529 | Right Centre Counter-Bracket |
$19.01 |
|
|
| 10 | M-675000041 | Screw |
$1.64 |
|
|
| 11 | M-670005426 | Lh Rear Bracket |
$122.23 |
|
|
| 12 | M-670001528 | Left Centre Counter-Bracket |
$19.01 |
|
|
| 14 | M-675000089 | Washer |
$0.96 |
|
|
| 15 | M-673003135 | Lock Ring |
$84.75 |
|
|
| 16 | M-673003136 | Elastic Washer |
$89.22 |
|
|
| 17 | M-673003961 | Central Silencer Kit |
$87.17 |
|
