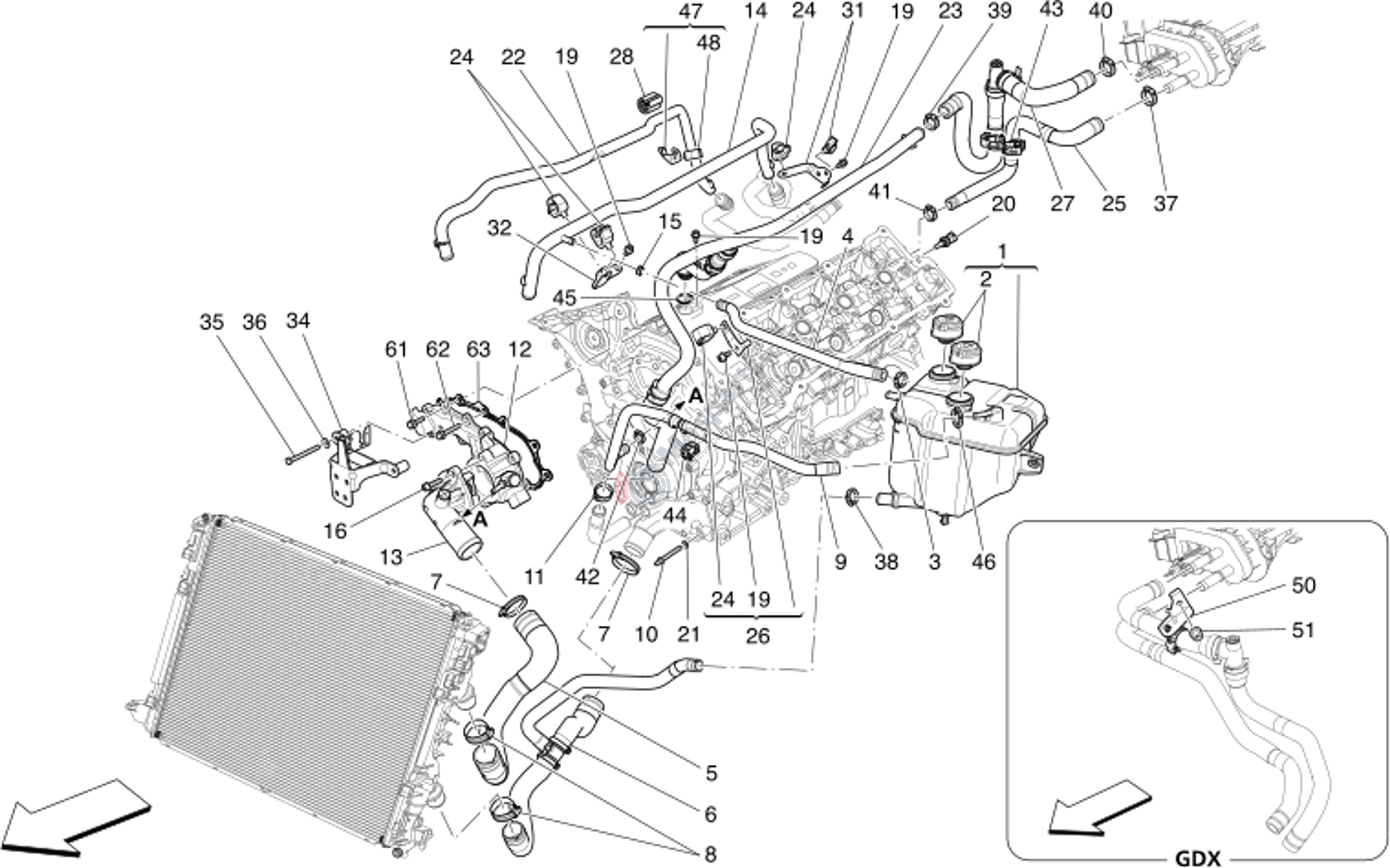

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031651 | Reservoir Assy Engine Coolan |
$95.72 |
|
|
| 2 | M-670003408 | Mount Plug |
$14.04 |
|
|
| 3 | M-675000344 | Strap Collar |
$2.43 |
|
|
| 4 | M-670001353 | Vent Pipe |
$18.48 |
|
|
| 5 | M-670031865 | Radiator Water Inlet Pipe |
$31.31 |
|
|
| 6 | M-670001321 | Water Outlet Duct |
$178.35 |
|
|
| 7 | M-675000345 | Screw Collar |
$3.83 |
|
|
| 8 | M-675000345 | Screw Collar |
$3.83 |
|
|
| 9 | M-670001322 | Vent Pipe |
$60.11 |
|
|
| 10 | M-227281 | Stud |
$18.46 |
|
|
| 11 | M-262109 | Clamp |
$2.47 |
|
|
| 13 | M-330424 | Cpl Thermostat |
$102.26 |
|
|
| 14 | M-882497 | Water Secondary Pipe |
$50.73 |
|
|
| 15 | M-675000373 | Strap Collar |
$1.94 |
|
|
| 16 | M-231620 | Socket Head Screw With Washe |
$1.65 |
|
|
| 19 | M-231616 | Screw |
$2.11 |
|
|
| 20 | M-180137 | Water Temperature Sensor |
$40.09 |
|
|
| 21 | M-675000106 | Washer |
$1.65 |
|
|
| 22 | M-296492 | Secondary Water Pipe |
$57.27 |
|
|
| 23 | M-313011 | Water Return Pipe From Oil E |
$131.78 |
|
|
| 24 | M-259508 | Clip |
$1.75 |
|
|
| 25 | M-670030122 | Water Hose To Int. Heater (R |
$200.15 |
|
|
| 26 | M-292354 | Cpl Pipe Support Bracket |
$19.09 |
|
|
| 27 | M-670031896 | Heater Water Return Sleeve |
$154.57 |
|
|
| 28 | M-298362 | Rubber |
$6.71 |
|
|
| 31 | M-300867 | Bracket |
$208.05 |
|
|
| 32 | M-287986 | Bracket |
$79.82 |
|
|
| 34 | M-834094 | Bracket |
$60.16 |
|
|
| 35 | M-10903424 | Screw |
$2.48 |
|
|
| 36 | M-14498824 | Washer. |
$1.74 |
|
|
| 37 | M-675000334 | Collar Clip |
$2.56 |
|
|
| 38 | M-675000658 | Snap Collar |
$5.68 |
|
|
| 39 | M-675000352 | Hose Elastic Collar |
$3.45 |
|
|
| 40 | M-675000334 | Collar Clip |
$2.56 |
|
|
| 41 | M-675000370 | Strap Collar |
$2.05 |
|
|
| 42 | M-675000368 | Strap Collar |
$1.97 |
|
|
| 43 | M-670005922 | Heating Water Pipe Retaining |
$3.10 |
|
|
| 44 | M-675000019 | Pipe Retaining Clip |
$1.19 |
|
|
| 45 | M-282370 | O-Ring |
$2.48 |
|
|
| 46 | M-675000344 | Strap Collar |
$2.43 |
|
|
| 47 | M-302126 | Bracket Cpl. |
$9.50 |
|
|
| 48 | M-259508 | Clip |
$1.75 |
|
|
| 50 | M-670005450 | Bracket |
$6.49 |
|
|
| 61 | M-291776 | Screw |
$3.97 |
|
|
| 62 | M-291771 | Screw |
$19.98 |
|
|
| 63 | M-280912 | Gasket (Crossover) |
$19.56 |
|
