Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

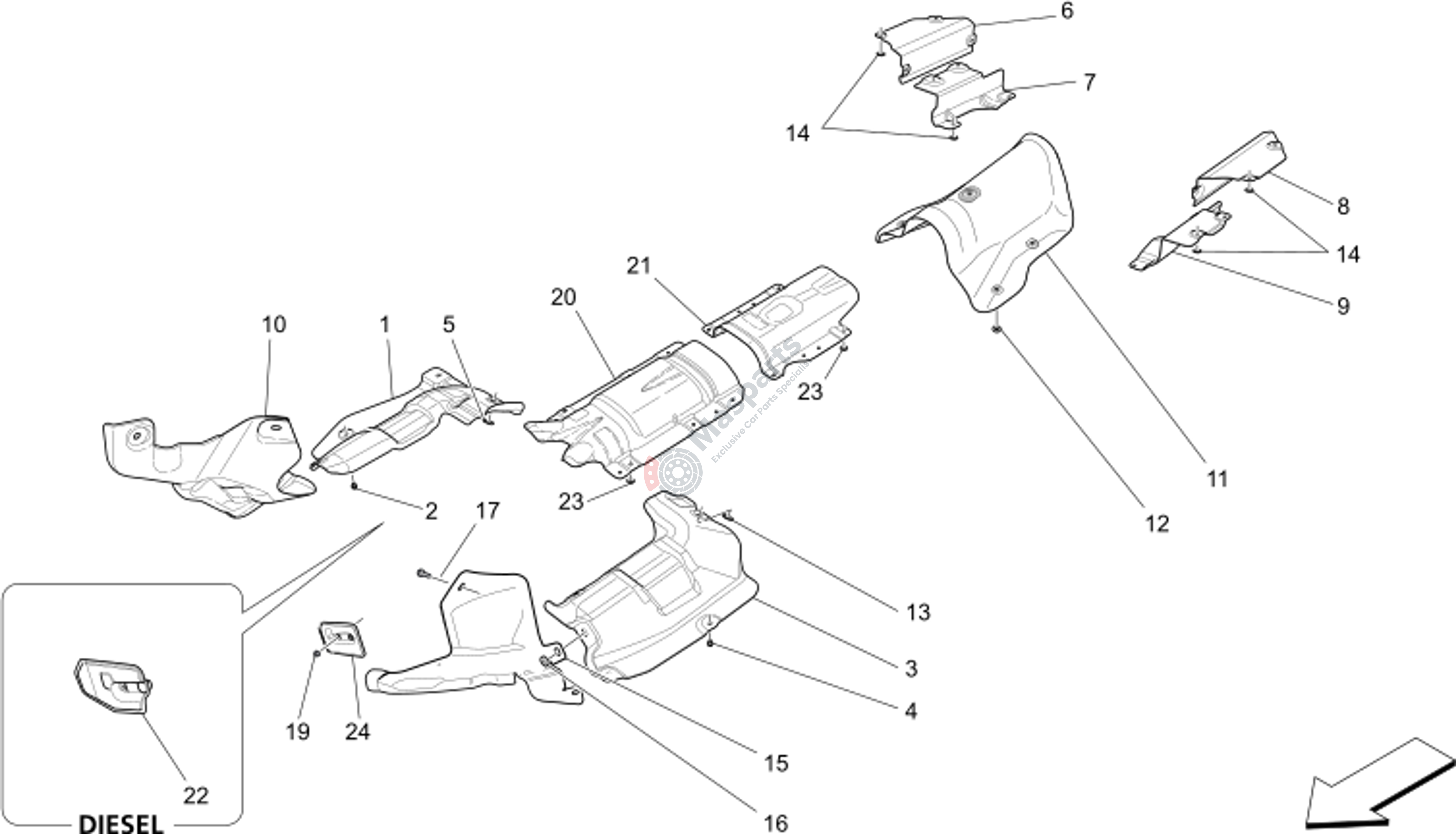

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670002060 | R.H.Silencer Heat Shield |
$41.12 |
|
|
| 2 | M-675000136 | Screw |
$2.25 |
|
|
| 4 | M-675000136 | Screw |
$2.25 |
|
|
| 5 | M-675000047 | Washer |
$5.58 |
|
|
| 6 | M-670004545 | Rear R.H. Heat Shield |
$23.87 |
|
|
| 7 | M-670004544 | Rear R.H. Heat Shield |
$25.23 |
|
|
| 8 | M-670004542 | Rear L.H. Heat Shield |
$23.87 |
|
|
| 9 | M-670004543 | Rear L.H. Heat Shield |
$25.06 |
|
|
| 12 | M-670003758 | Fixing Button |
$2.79 |
|
|
| 13 | M-675000047 | Washer |
$5.58 |
|
|
| 14 | M-675000047 | Washer |
$5.58 |
|
|
| 15 | M-670005780 | L.H. Heat Shield |
$233.90 |
|
|
| 16 | M-675000047 | Washer |
$5.58 |
|
|
| 17 | M-675000136 | Screw |
$2.25 |
|
|
| 20 | M-673004070 | Crankshaft Protection Kit |
$96.12 |
|
|
| 21 | M-673004070 | Crankshaft Protection Kit |
$96.12 |
|
|
| 23 | M-675000047 | Washer |
$5.58 |
|
