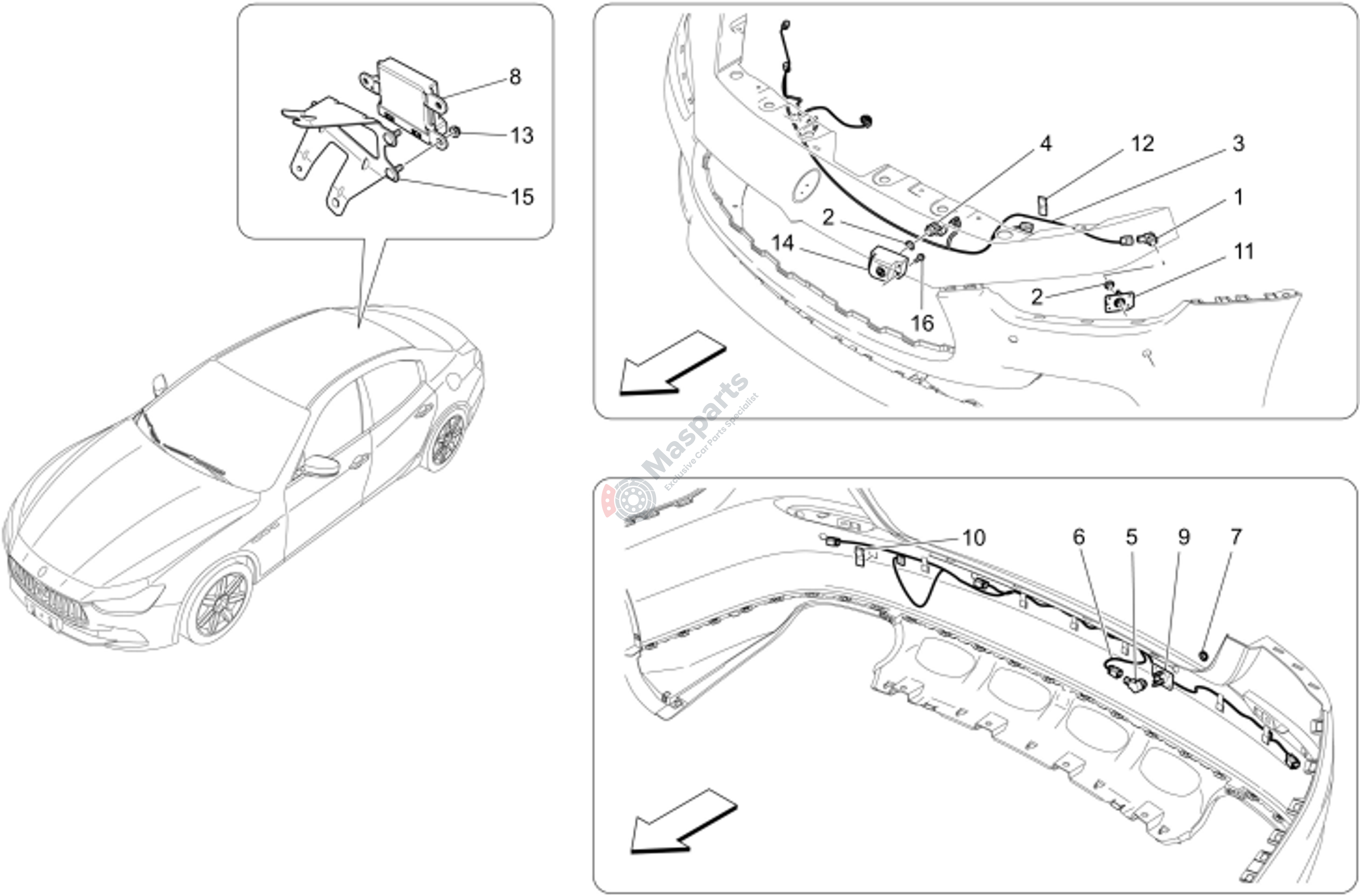

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000039 | Radial Parking Sensor |
$112.59 |
|
|
| 2 | M-675000044 | Silicon Ring |
$7.69 |
|
|
| 3 | M-670004438 | Front Bumper Park Sensors Br |
$221.23 |
|
|
| 4 | M-670005173 | Coaxial Parking Sensor |
$112.59 |
|
|
| 5 | M-675000039 | Radial Parking Sensor |
$112.59 |
|
|
| 6 | M-670004462 | Rear Bumper Parking Sensor C |
$41.68 |
|
|
| 7 | M-675000044 | Silicon Ring |
$7.69 |
|
|
| 8 | M-670004819 | Parktronics Module M157 |
$157.42 |
|
|
| 9 | M-670010780 | Rear Internal Rh Park. Senso |
$41.18 |
|
|
| 10 | M-670005222 | Clip |
$27.52 |
|
|
| 11 | M-670010769 | Front Intern Rh Parking Sensor |
$32.69 |
|
|
| 12 | M-670005222 | Clip |
$27.52 |
|
|
| 13 | M-675000095 | Nut |
$0.78 |
|
|
| 14 | M-673002937 | Front Rh Parking Sensor Supp |
$37.30 |
|
|
| 15 | M-670031461 | Ecu Bracket |
$10.76 |
|
|
| 16 | M-673006994 | Sensor Fastening Screw |
$2.64 |
|
