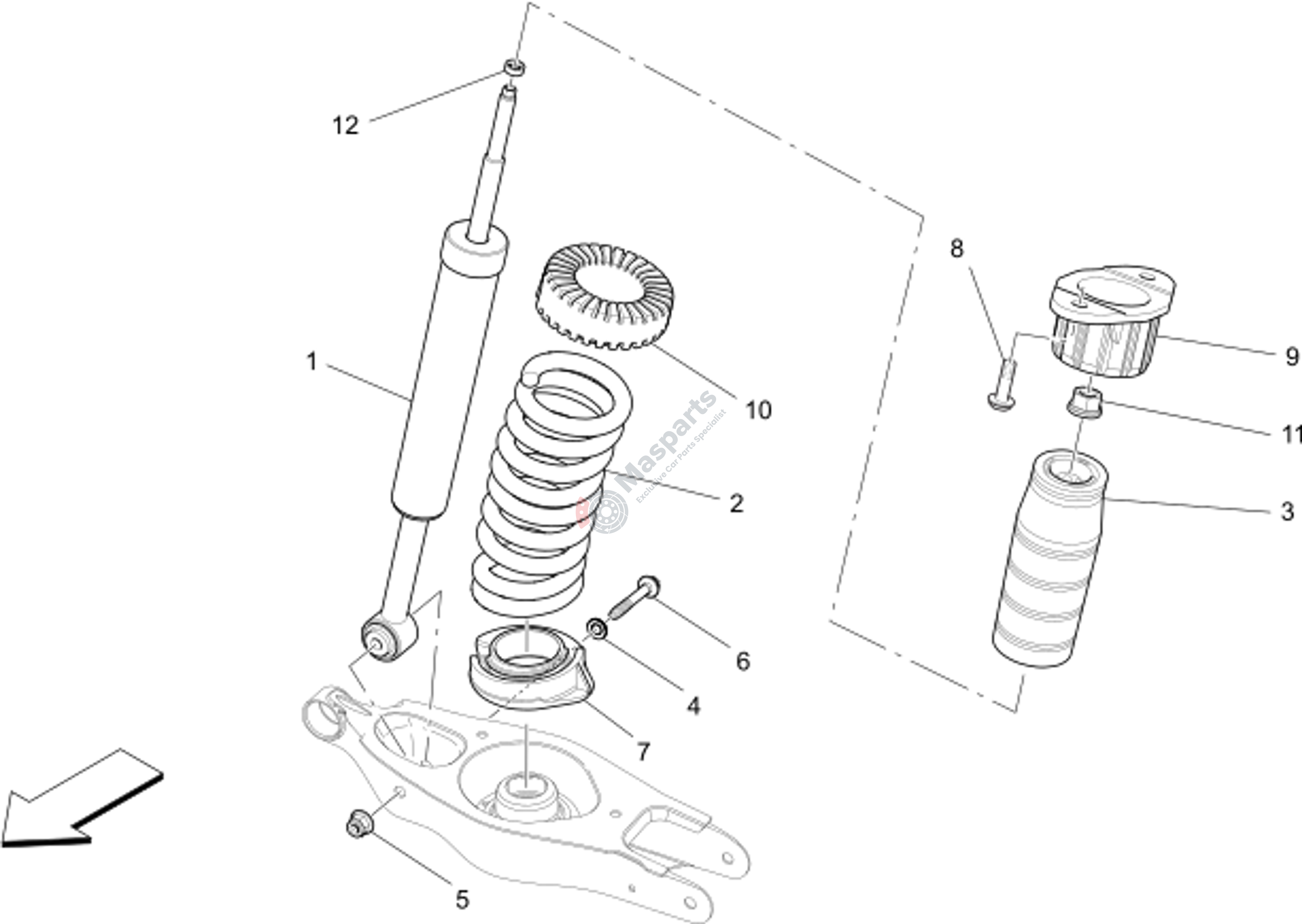

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670005266 | Rear Helical Spring (4X2 Sdd |
$71.00 |
|
|
| 4 | M-675000083 | Washer |
$1.91 |
|
|
| 5 | M-675000023 | Nut |
$1.40 |
|
|
| 6 | M-675000146 | Screw |
$5.83 |
|
|
| 7 | M-675000033 | Ring |
$36.36 |
|
|
| 8 | M-675000145 | Screw |
$4.08 |
|
|
| 9 | M-670002833 | R.H. Rear Susp. Elastic Cup |
$53.84 |
|
|
| 10 | M-675000216 | Ring |
$21.58 |
|
|
| 11 | M-670009802 | Nut With Washer |
$4.56 |
|
|
| 12 | M-670007685 | Spacer |
$40.57 |
|
