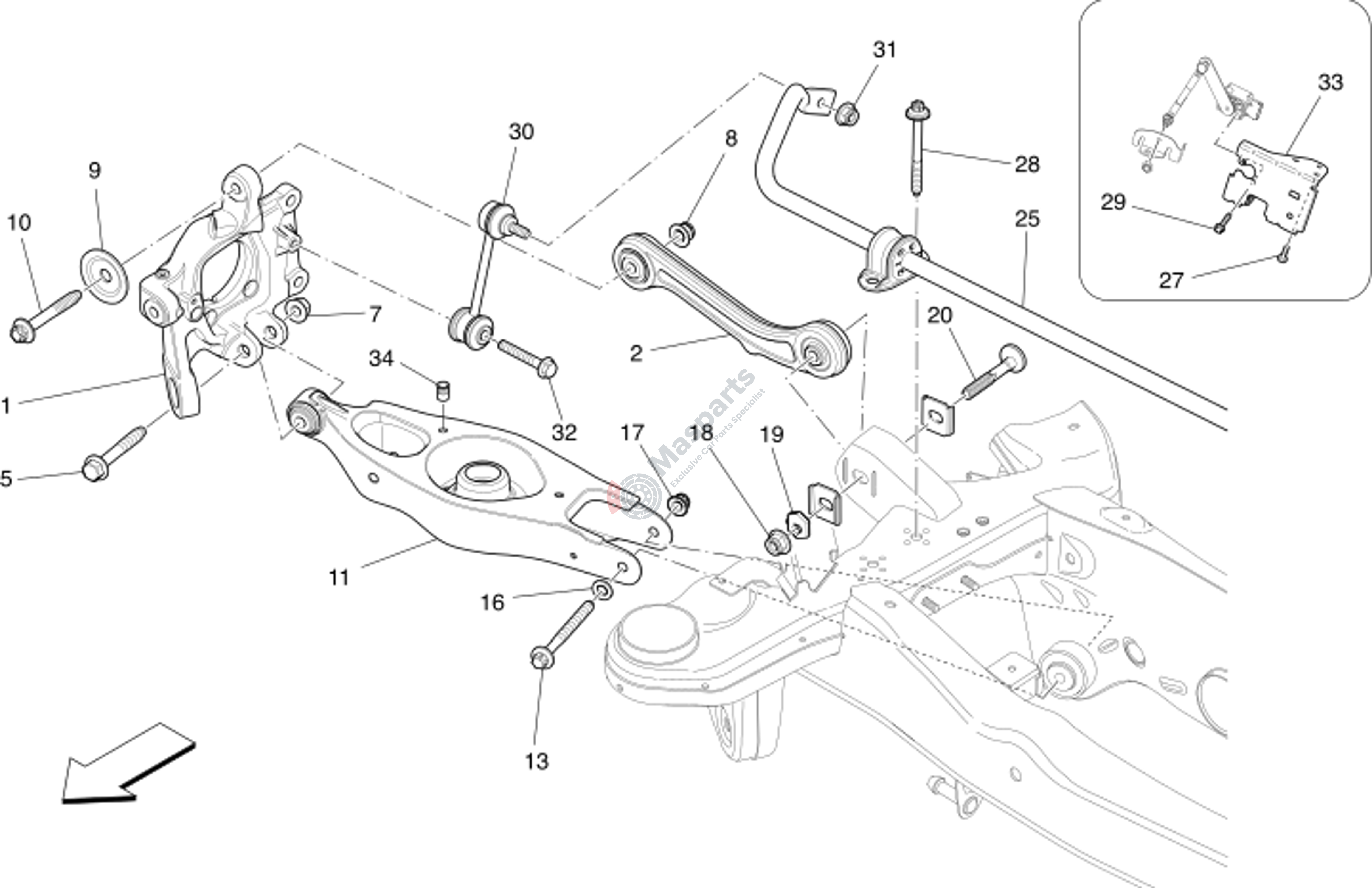

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670007252 | Level Rod Assembly |
$139.33 |
|
|
| 5 | M-670035584 | Screw |
$4.52 |
|
|
| 7 | M-675000708 | Nut |
$3.39 |
|
|
| 8 | M-675000023 | Nut |
$1.35 |
|
|
| 9 | M-670002856 | Special Washer |
$3.09 |
|
|
| 10 | M-675000146 | Screw |
$5.64 |
|
|
| 11 | M-670036580 | Rear Wishbone |
$214.21 |
|
|
| 13 | M-670008337 | Special Screw |
$9.23 |
|
|
| 16 | M-675000083 | Washer |
$1.85 |
|
|
| 17 | M-675000023 | Nut |
$1.35 |
|
|
| 18 | M-670002807 | Nut M12X15 |
$2.50 |
|
|
| 19 | M-675000333 | Washer |
$6.69 |
|
|
| 20 | M-670002805 | Screw With Eccentric |
$9.19 |
|
|
| 25 | M-670214702 | Rear Suspension Stabiliser B |
$203.78 |
|
|
| 27 | M-675000431 | Screw |
$1.34 |
|
|
| 28 | M-675000140 | Screw |
$2.44 |
|
|
| 29 | M-675000197 | Screw |
$2.26 |
|
|
| 30 | M-670002744 | Small Link For Bar |
$55.84 |
|
|
| 31 | M-675000124 | Nut |
$0.95 |
|
|
| 32 | M-675000056 | Screw |
$2.84 |
|
|
| 33 | M-670008519 | Bracket |
$14.94 |
|
|
| 34 | M-670007365 | Threaded Bushing |
$2.38 |
|
