Diagram image not available

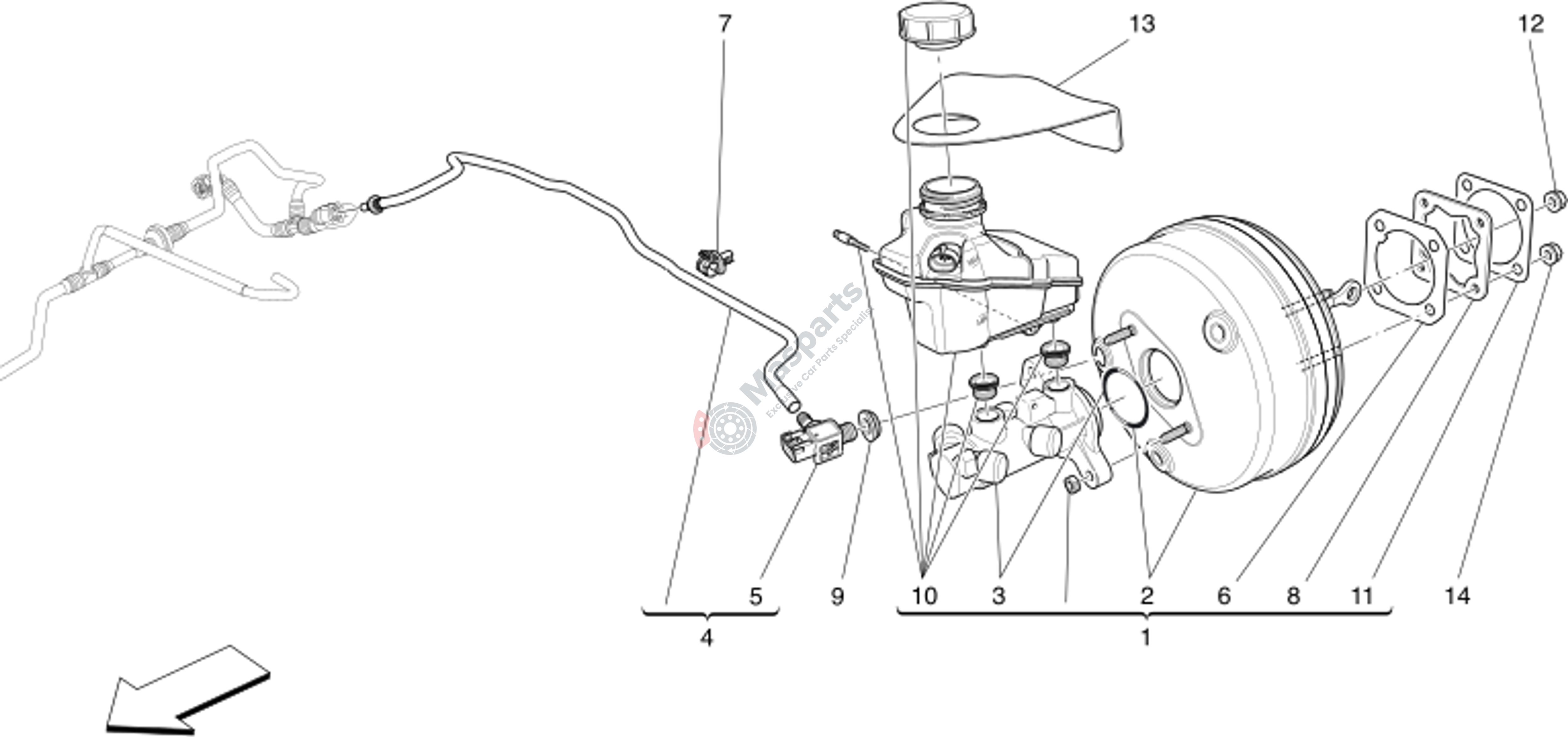

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670004287 | Brake Booster Assy |
€406,30 |
|
|
| 2 | M-673002713 | Brake Booster M157 |
€514,25 |
|
|
| 3 | M-673002714 | Pump (Brake Booster) M157 |
€425,85 |
|
|
| 4 | M-670006381 | Complete Vacuum Pipe (Lhd) |
€62,05 |
|
|
| 5 | M-675000038 | Pressure Transmitter |
€69,40 |
|
|
| 6 | M-673002019 | Brake Booster Gasket |
€33,95 |
|
|
| 7 | M-675000013 | Clip |
€0,84 |
|
|
| 8 | M-673009226 | Spacer |
€36,43 |
|
|
| 9 | M-673002073 | Gasket |
€10,30 |
|
|
| 10 | M-673003415 | Brake Booster Tank |
€157,25 |
|
|
| 11 | M-673009227 | Gasket |
€1,99 |
|
|
| 12 | M-670030266 | Nut |
€4,18 |
|
|
| 14 | M-675001939 | Nut M8 With Washer |
€1,74 |
|
