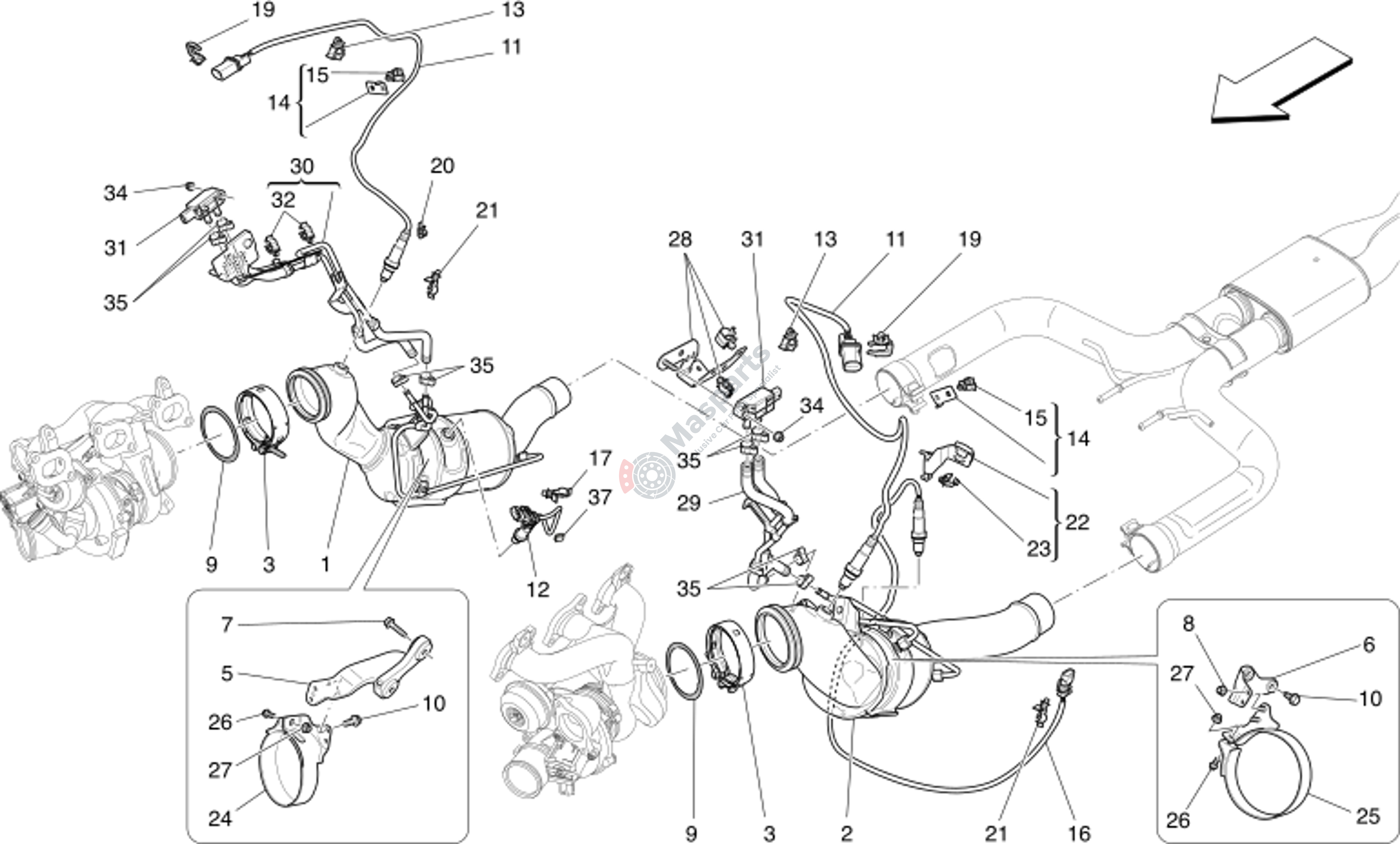

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670107540 | Hot-End Cpl.Ccgpf Rt |
$3,246.58 |
|
|
| 2 | M-670107529 | Hot-End Cpl.Ccgpf Lt |
$3,117.18 |
|
|
| 3 | M-675000060 | Collar |
$29.42 |
|
|
| 5 | M-670104958 | Rh Bracket |
$43.04 |
|
|
| 6 | M-670030018 | Lh Bracket |
$29.97 |
|
|
| 7 | M-675000397 | Screw |
$9.20 |
|
|
| 8 | M-675000091 | Nut |
$1.28 |
|
|
| 9 | M-675000052 | Gasket |
$8.59 |
|
|
| 10 | M-675000112 | Screw |
$2.41 |
|
|
| 11 | M-670214727 | Front Lambda Sensor |
$122.32 |
|
|
| 12 | M-670104045 | Rear Lambda Sensor |
$123.30 |
|
|
| 13 | M-675000143 | Clip |
$0.98 |
|
|
| 14 | M-670039619 | Brake Booster Vacuum Hose Br |
$13.49 |
|
|
| 15 | M-675000134 | Clip |
$5.98 |
|
|
| 16 | M-670107391 | Rear Lambda Sensor |
$135.14 |
|
|
| 17 | M-675000143 | Clip |
$0.98 |
|
|
| 19 | M-670104528 | Retaining Clip |
$1.72 |
|
|
| 20 | M-670106995 | Retaining Clip |
$1.72 |
|
|
| 21 | M-670039620 | Bracket |
$5.74 |
|
|
| 22 | M-670107795 | Temperature Sensor Bracket |
$21.80 |
|
|
| 23 | M-670009081 | Fastening Clip |
$10.10 |
|
|
| 24 | M-670108353 | Collar Bracket Lh Hot-End |
$143.51 |
|
|
| 25 | M-670108354 | Collar Bracket Rh Hot-End |
$53.90 |
|
|
| 26 | M-675000257 | Screw |
$6.06 |
|
|
| 27 | M-675000779 | Nut |
$2.85 |
|
|
| 28 | M-670107580 | Lh Pressure Sensor Bracket |
$25.54 |
|
|
| 29 | M-670105045 | Rigid Pipe Exhaust Gas Press |
$110.17 |
|
|
| 30 | M-670182471 | Rigid Pipe Exhaust Gas Pres |
$121.87 |
|
|
| 32 | M-675000076 | Clip |
$0.88 |
|
|
| 34 | M-14059211 | Nut |
$1.48 |
|
|
| 35 | M-675000369 | Strap Collar |
$1.70 |
|
