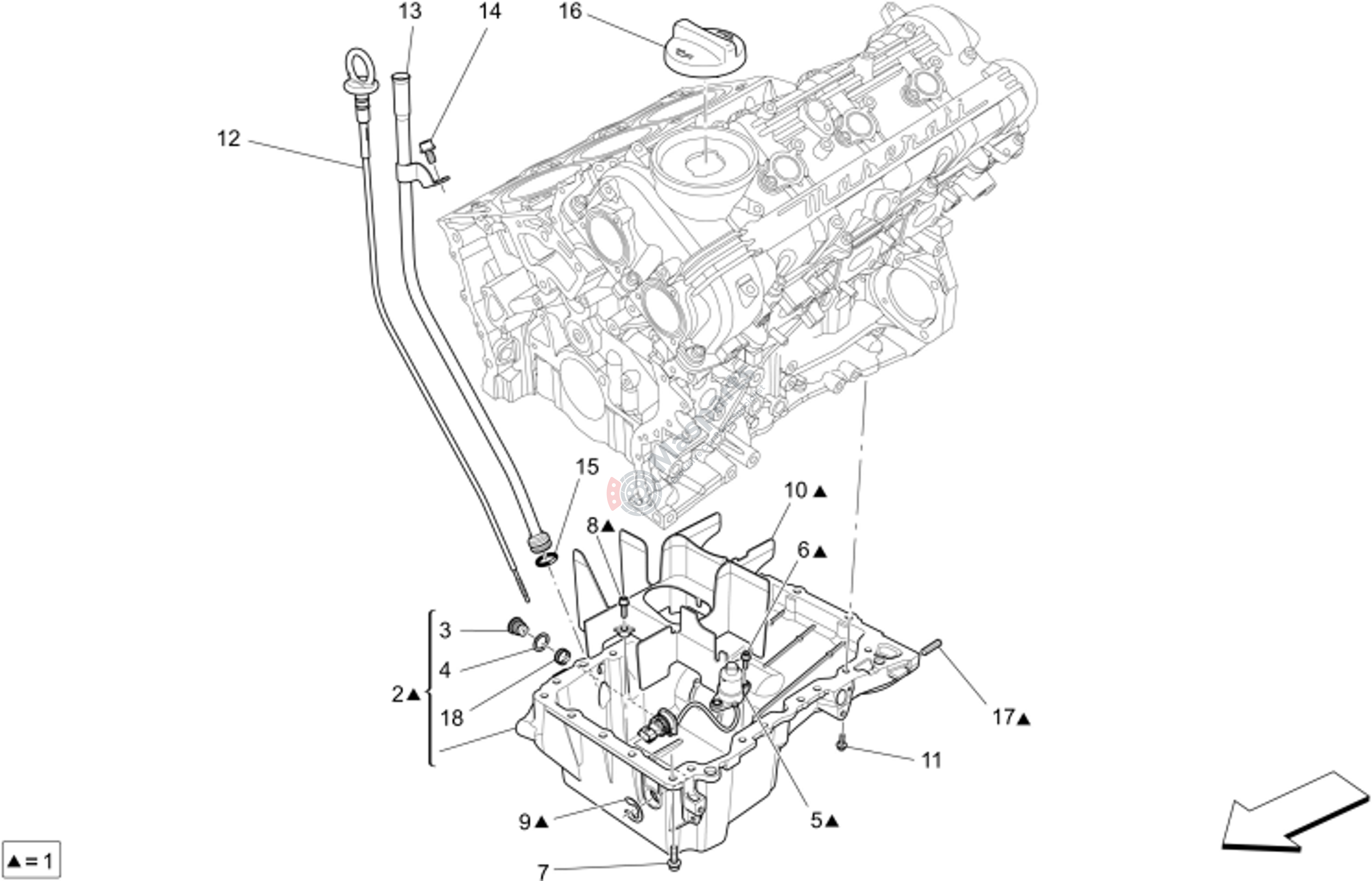

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-331819 | Cpl Oil Pan Assy (V6 Rwd) |
€996,20 |
|
|
| 3 | M-104280 | Threaded Plug M 22X1.5 |
€10,40 |
|
|
| 4 | M-10261860 | Gasket 22- 30X 1.5 |
€0,95 |
|
|
| 5 | M-230171 | Oil Level Sensor |
€54,95 |
|
|
| 6 | M-282395 | Screw |
€3,34 |
|
|
| 7 | M-231629 | Socket Head Screw With Washe |
€2,09 |
|
|
| 8 | M-282395 | Screw |
€3,34 |
|
|
| 9 | M-16165276 | 3-Point Circlip D.19 |
€1,46 |
|
|
| 10 | M-291365 | Oil Sump Shield |
€36,43 |
|
|
| 11 | M-295634 | Screw |
€2,23 |
|
|
| 12 | M-315073 | Oil Level Rod |
€35,79 |
|
|
| 13 | M-319585 | Oil Dipstick Holder Extensio |
€62,01 |
|
|
| 14 | M-233600 | Screw |
€1,99 |
|
|
| 15 | M-282370 | O-Ring |
€2,09 |
|
|
| 16 | M-293205 | Engine Oil Filler Cap |
€26,77 |
|
|
| 17 | M-303589 | Stud M10X15X26 Stem40 M10X12 |
€10,76 |
|
|
| 18 | M-223577 | Threaded Fitting M22X1.5X11 |
€3,13 |
|
