Diagram image not available

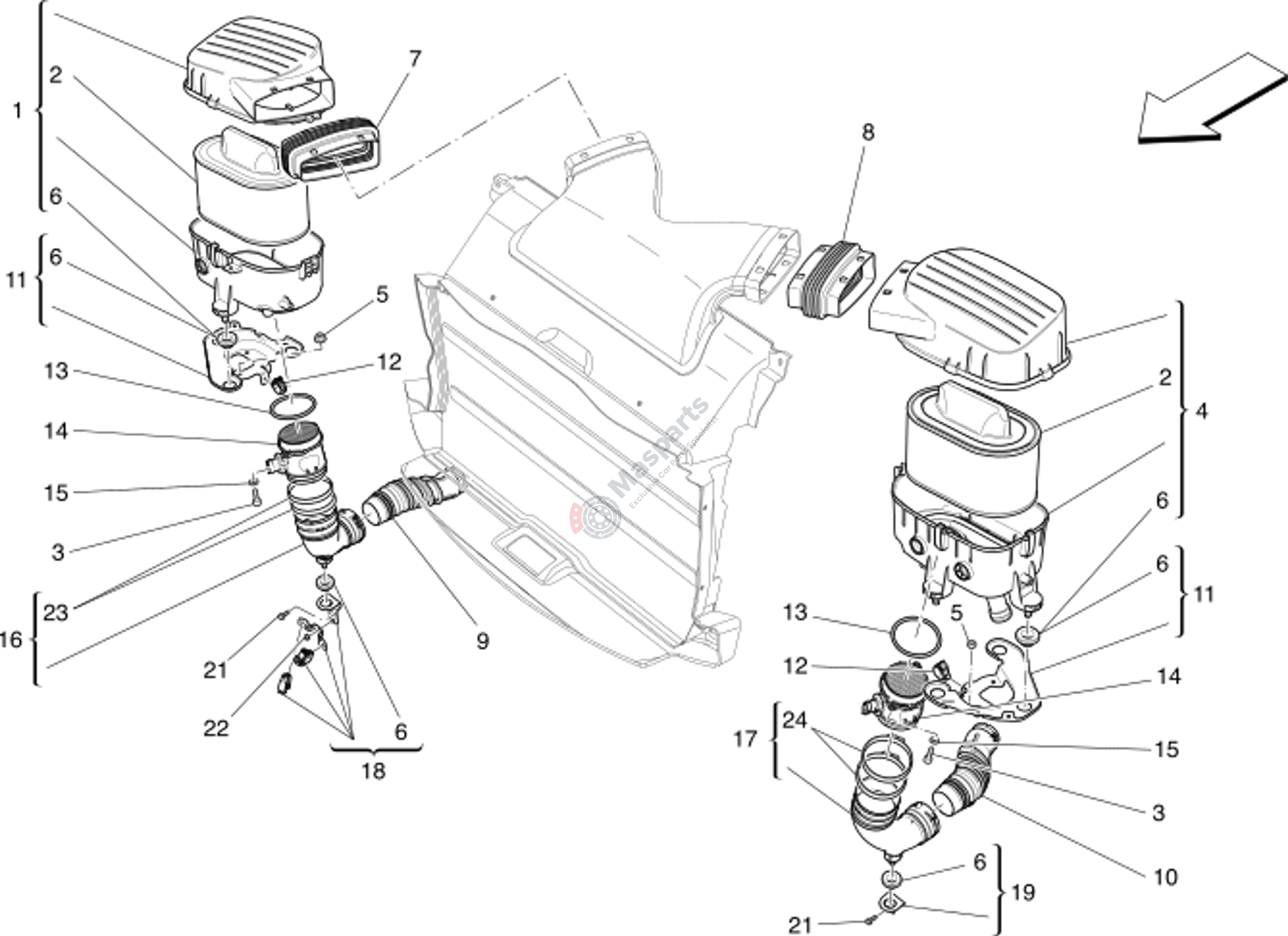

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007389 | Rh Filter Box Cpl |
$93.25 |
|
|
| 2 | M-670001545 | Air Filter |
$58.70 |
|
|
| 4 | M-673007391 | Lh Filter Box Cpl V6 Tt |
$93.25 |
|
|
| 6 | M-670005249 | Bushing |
$14.40 |
|
|
| 7 | M-670007992 | Rh Intake Air Sleeve |
$24.40 |
|
|
| 8 | M-670007991 | Lh Intake Air Sleeve |
$24.40 |
|
|
| 9 | M-670002450 | Lower Rh. Air Intake Sleeve |
$128.78 |
|
|
| 10 | M-670002452 | Lower Lh. Air Intake Sleeve |
$141.36 |
|
|
| 11 | M-670038730 | Filter Box Bracket |
$15.82 |
|
|
| 12 | M-675000135 | Clip |
$0.98 |
|
|
| 13 | M-670005248 | Circlip |
$95.87 |
|
|
| 14 | M-670002164 | Air Flow Meter |
$211.60 |
|
|
| 15 | M-675000097 | Washer |
$1.08 |
|
|
| 16 | M-673007392 | Rh Clean Air Intake Sleeve V |
$142.39 |
|
|
| 17 | M-673007395 | Lh Clean Air Intake Sleeve R |
$159.76 |
|
|
| 18 | M-670005137 | Mounting Bracket |
$3.59 |
|
|
| 19 | M-670005136 | Mounting Bracket |
$3.06 |
|
|
| 21 | M-675000308 | Screw |
$1.64 |
|
|
| 23 | M-675000551 | Snap-On Hose Band Clamp D.85 |
$4.59 |
|
|
| 24 | M-675000551 | Snap-On Hose Band Clamp D.85 |
$4.59 |
|
