Diagram image not available

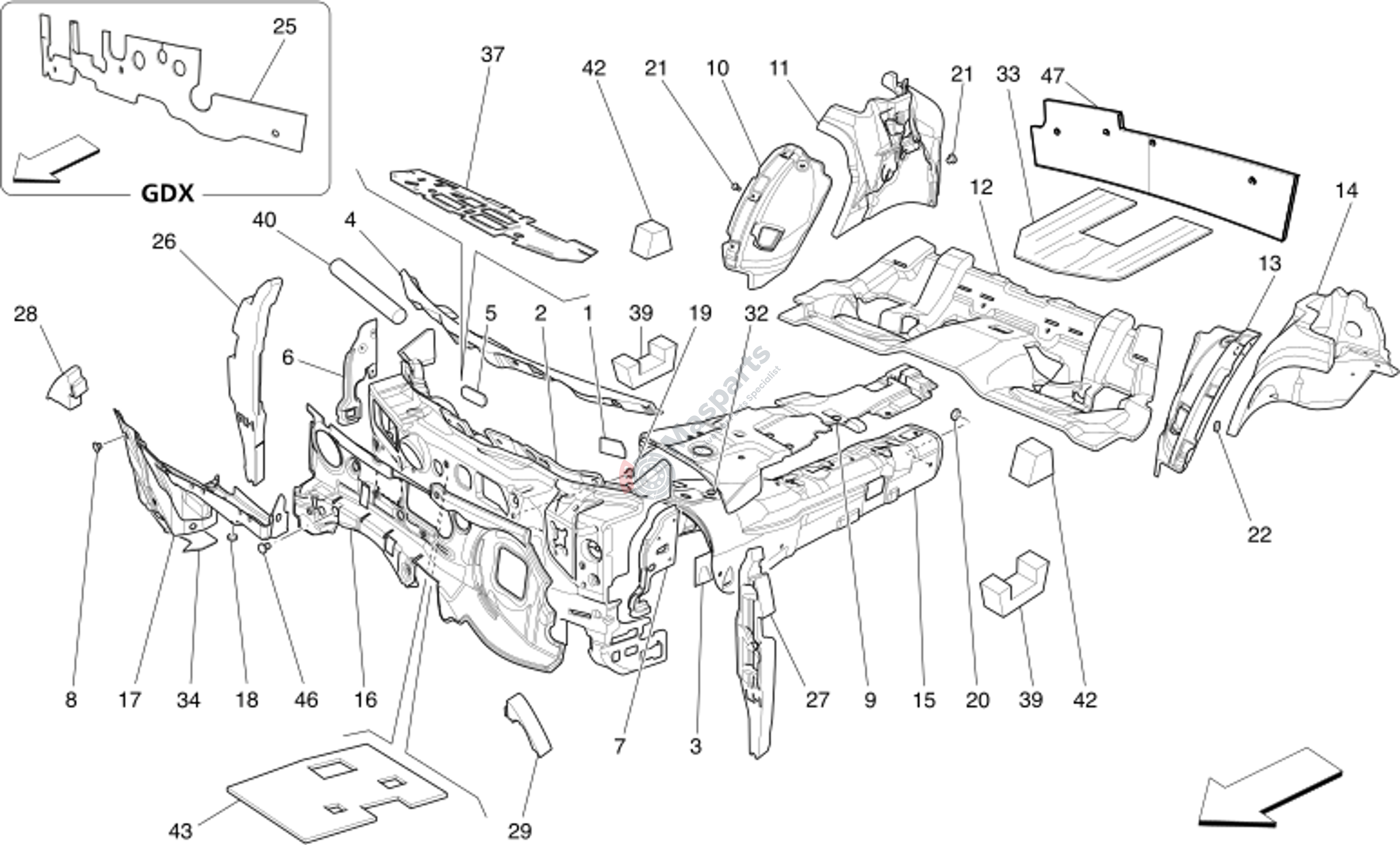

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000151 | Seal Plug |
$1.69 |
|
|
| 2 | M-670105244 | Insulation |
$220.77 |
|
|
| 3 | M-670001856 | Soundproofing |
$3.62 |
|
|
| 4 | M-670002563 | Soundproof Panel Under Winds |
$49.35 |
|
|
| 5 | M-675000417 | Oval Protection Sheet 48X140 |
$7.06 |
|
|
| 6 | M-670005499 | Compartment Insulation |
$3.90 |
|
|
| 7 | M-670005500 | Compartment Insulation |
$3.90 |
|
|
| 9 | M-670005498 | Insulation |
$44.18 |
|
|
| 10 | M-670037434 | Front Part Of Rear Rh Wheelh |
$19.78 |
|
|
| 11 | M-670038084 | Rear Part Of Rear Rh Wheelho |
$22.18 |
|
|
| 12 | M-670108268 | Insulation |
$47.93 |
|
|
| 13 | M-670003168 | Lh Rear Wheelhouse Front Sil |
$18.32 |
|
|
| 14 | M-670032881 | Lh Rear Wheelhouse Rear Sile |
$19.49 |
|
|
| 15 | M-670004549 | External Tunnel Sound-Proof |
$64.25 |
|
|
| 16 | M-670001780 | Engine Compartment Insulatio |
$26.09 |
|
|
| 17 | M-670002569 | R.H. Sup. Eng. Comp. Insulat |
$17.69 |
|
|
| 18 | M-675000453 | Plate |
$1.64 |
|
|
| 20 | M-675000411 | Washer |
$3.65 |
|
|
| 22 | M-675000424 | Plug |
$8.63 |
|
|
| 32 | M-675000679 | Sealing Plug 22Mm |
$10.44 |
|
|
| 33 | M-670030941 | Soundproofing Panel |
$8.95 |
|
