The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

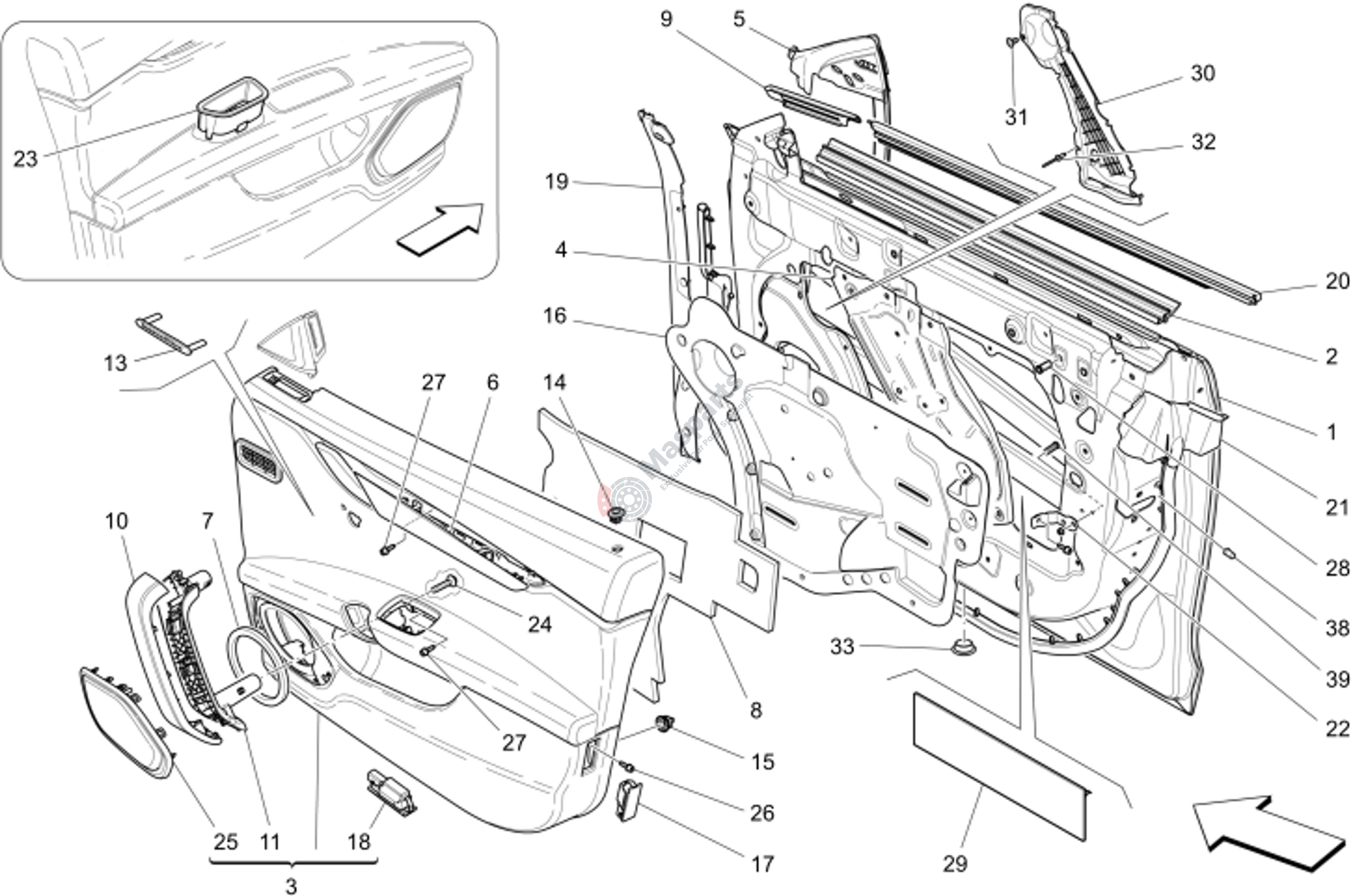

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007995 | Cpl Rh Front Door |
$1,719.55 |
|
|
| 2 | M-670030047 | R.H. Front Glass Scraper Gas |
$83.11 |
|
|
| 5 | M-670036291 | Rh Ext Rear View Mirror Tria |
$105.12 |
|
|
| 7 | M-673001453 | Gasket |
$23.23 |
|
|
| 8 | M-673002007 | Rh Door Panel Soundproofing |
$72.05 |
|
|
| 9 | M-670009915 | Glass Scraper Gasket |
$107.44 |
|
|
| 13 | M-673001459 | Label Bower & Wilkins |
$38.96 |
|
|
| 14 | M-673001441 | Front Door Bushing |
$66.78 |
|
|
| 15 | M-670219478 | Perno Di Fiss. |
$2.84 |
|
|
| 17 | M-670007082 | Door Light |
$31.83 |
|
|
| 18 | M-675000265 | Door Lamp Black |
$11.60 |
|
|
| 19 | M-670004964 | Rh Fr.Door Vertical Anti-Rus |
$65.06 |
|
|
| 20 | M-670009856 | R.H. Front Outer Glass Scrap |
$222.25 |
|
|
| 21 | M-670037606 | R.H. Front Door Gasket |
$125.34 |
|
|
| 22 | M-670005885 | Bracket Fast. Front Rh Door |
$5.69 |
|
|
| 24 | M-673002001 | Screw For Carrier Pull Handl |
$13.29 |
|
|
| 26 | M-670008293 | Screw |
$2.11 |
|
|
| 27 | M-670008293 | Screw |
$2.11 |
|
|
| 28 | M-670005149 | Rivet |
$2.92 |
|
|
| 29 | M-670034380 | Doors Soundproofing Adhesive |
$3.58 |
|
|
| 32 | M-670007137 | Rivet |
$2.21 |
|
|
| 38 | M-670036706 | Pin |
$3.69 |
|
|
| 39 | M-670155282 | Pin |
$2.92 |
|
