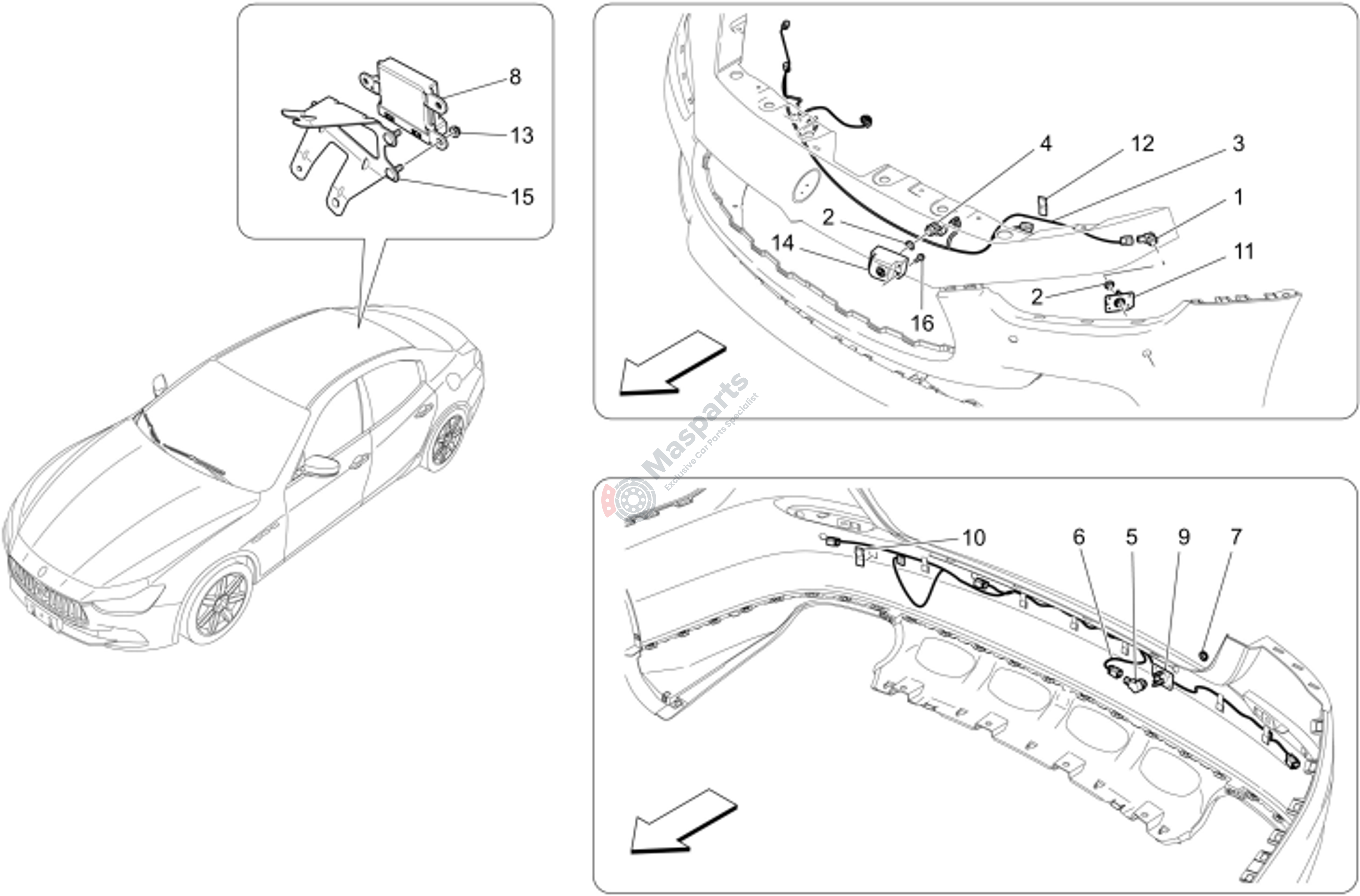

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000039 | Radial Parking Sensor |
$112.99 |
|
|
| 2 | M-675000044 | Silicon Ring |
$7.72 |
|
|
| 3 | M-670004438 | Front Bumper Park Sensors Br |
$222.02 |
|
|
| 4 | M-670005173 | Coaxial Parking Sensor |
$112.99 |
|
|
| 5 | M-675000039 | Radial Parking Sensor |
$112.99 |
|
|
| 6 | M-670004462 | Rear Bumper Parking Sensor C |
$41.83 |
|
|
| 7 | M-675000044 | Silicon Ring |
$7.72 |
|
|
| 8 | M-670004819 | Parktronics Module M157 |
$157.98 |
|
|
| 9 | M-670010780 | Rear Internal Rh Park. Senso |
$41.33 |
|
|
| 10 | M-670005222 | Clip |
$27.62 |
|
|
| 11 | M-670010769 | Front Intern Rh Parking Sensor |
$32.81 |
|
|
| 12 | M-670005222 | Clip |
$27.62 |
|
|
| 13 | M-675000095 | Nut |
$0.78 |
|
|
| 14 | M-673002937 | Front Rh Parking Sensor Supp |
$37.43 |
|
|
| 15 | M-670031461 | Ecu Bracket |
$10.79 |
|
|
| 16 | M-673006994 | Sensor Fastening Screw |
$2.65 |
|
