Diagram image not available

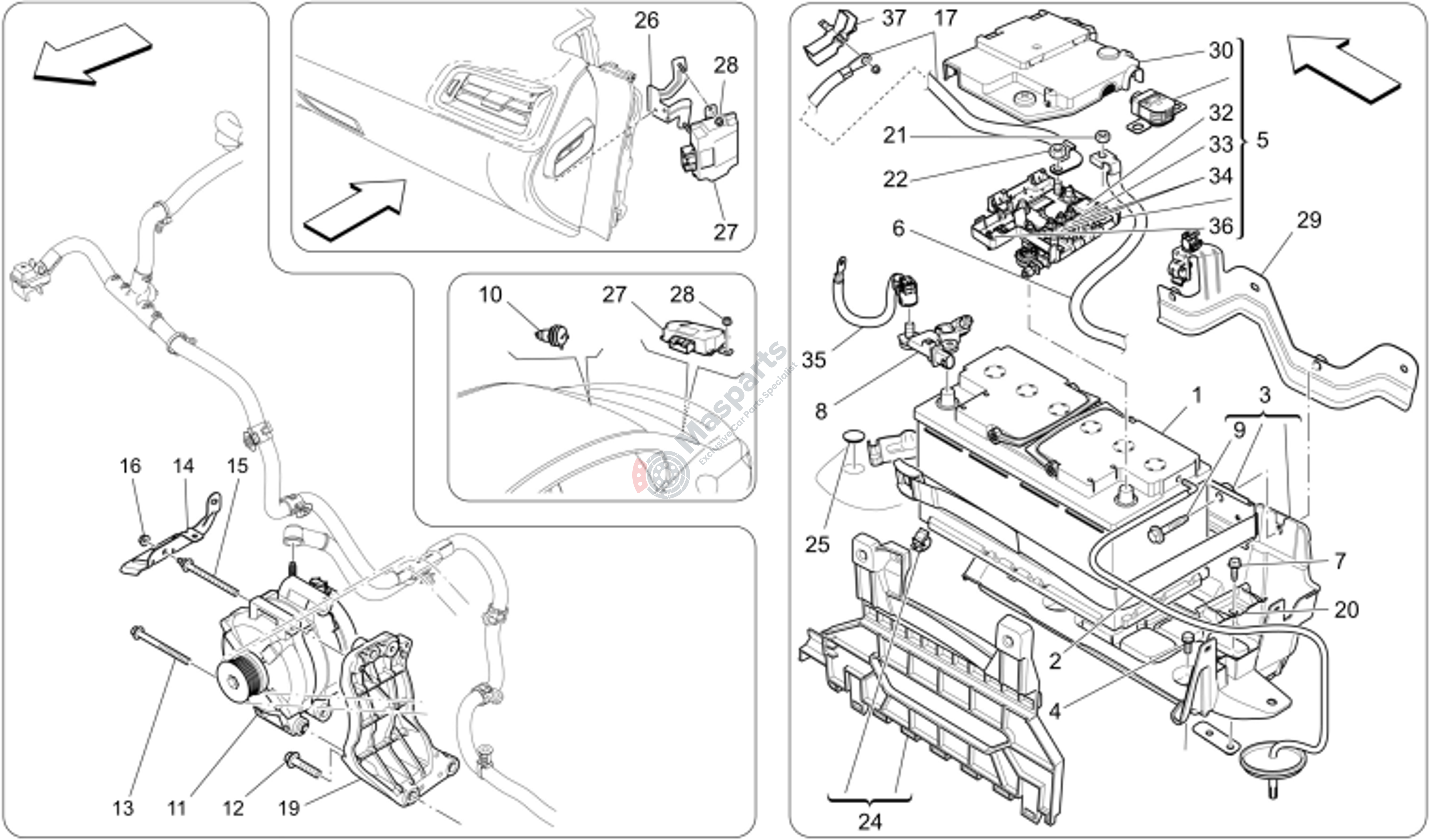

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673000080 | Battery |
$300.79 |
|
|
| 2 | M-670008109 | Hose |
$19.86 |
|
|
| 3 | M-675000297 | Cpl Battery Rack |
$82.13 |
|
|
| 4 | M-675000174 | Screw |
$1.63 |
|
|
| 5 | M-670002029 | Cpl Battery Ecu |
$88.03 |
|
|
| 6 | M-670006554 | Battery Positive Cable |
$29.89 |
|
|
| 7 | M-675000088 | Screw |
$2.58 |
|
|
| 9 | M-675000214 | Screw |
$24.65 |
|
|
| 11 | M-675000572 | Alternator |
$1,261.76 |
|
|
| 12 | M-46328717 | Flange Bolt |
$2.90 |
|
|
| 13 | M-46328708 | Flange Bolt |
$3.62 |
|
|
| 15 | M-46328332 | Stud |
$8.68 |
|
|
| 16 | M-673001154 | Flange Nut |
$1.48 |
|
|
| 17 | M-670035070 | Battery Positive Cable |
$262.79 |
|
|
| 19 | M-46328300 | Bracket |
$70.70 |
|
|
| 20 | M-675000426 | Battery Bracket |
$6.41 |
|
|
| 21 | M-675000439 | Nut |
$3.63 |
|
|
| 22 | M-675000450 | Nut |
$4.46 |
|
|
| 24 | M-670101074 | Bracket |
$15.46 |
|
|
| 25 | M-675000244 | Plug |
$0.97 |
|
|
| 26 | M-670007262 | Bracket |
$16.94 |
|
|
| 28 | M-675000095 | Nut |
$0.76 |
|
|
| 29 | M-670005834 | Bracket |
$23.77 |
|
|
| 30 | M-675000498 | Battery Cover |
$26.62 |
|
|
| 32 | M-673002762 | 175A Mega-Fuse (Battery Ctr. |
$7.63 |
|
|
| 33 | M-673002763 | 30A Midi-Fuse (Battery Ctr. |
$3.33 |
|
|
| 34 | M-673002764 | 40A Midi-Fuse (Battery Ctr. |
$3.20 |
|
|
| 36 | M-673003650 | Fuse-Puller |
$1.69 |
|
|
| 37 | M-675000578 | Connector |
$23.34 |
|
