Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

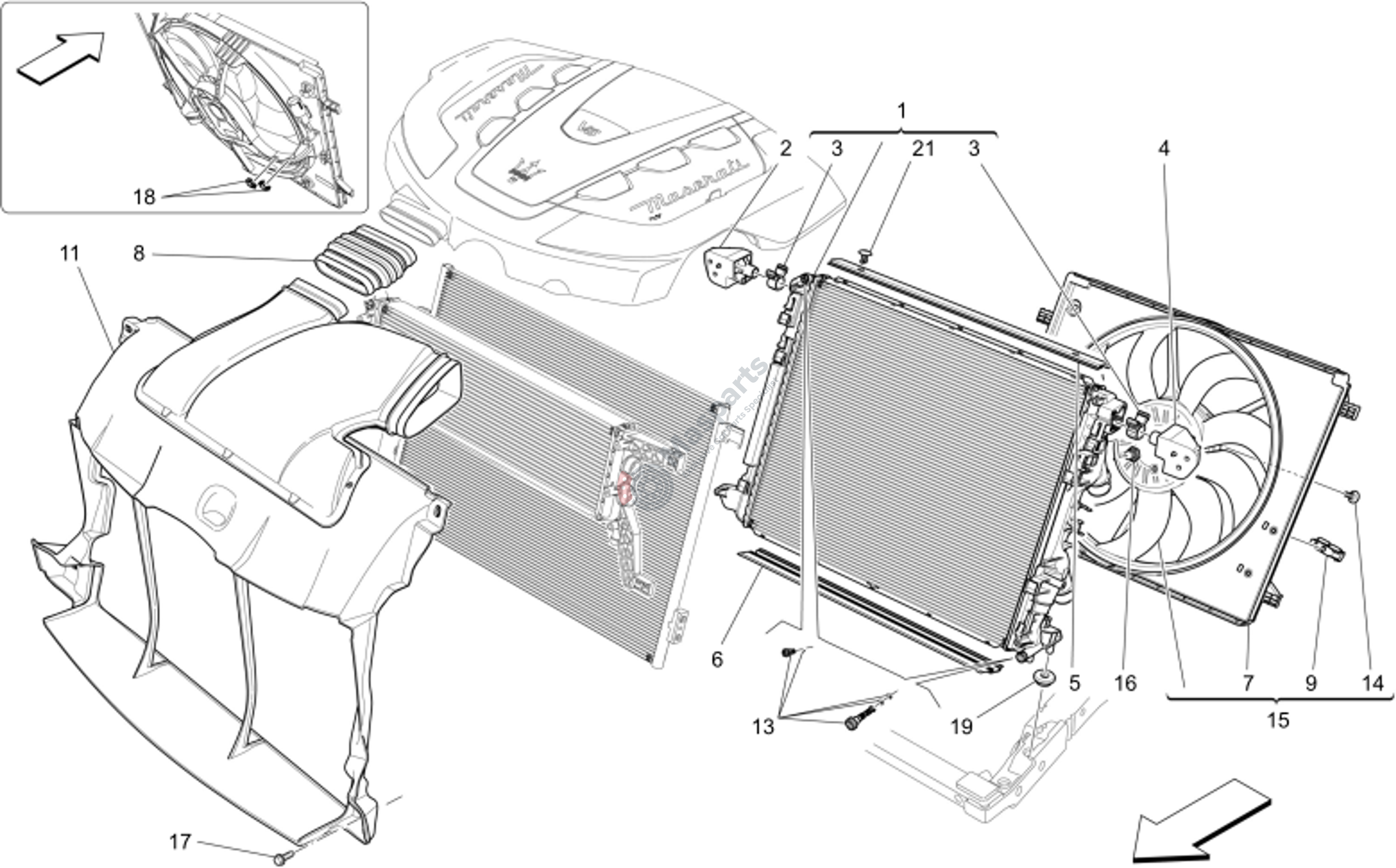

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670109996 | Water Radiator |
$703.33 |
|
|
| 2 | M-670001324 | Cpl Radiator Upper Rh Suppor |
$25.43 |
|
|
| 3 | M-670107327 | Rubber Bushing For Water Rad |
$66.82 |
|
|
| 4 | M-670001323 | Cpl Radiator Upper Lh Suppor |
$25.43 |
|
|
| 5 | M-670005012 | Upper Profile |
$65.65 |
|
|
| 6 | M-670005011 | Lower Profile |
$50.54 |
|
|
| 7 | M-673000014 | Air Conveyor |
$408.86 |
|
|
| 8 | M-670005263 | Air Pipe Gaiter On Cover |
$107.70 |
|
|
| 9 | M-670003405 | Clip |
$39.11 |
|
|
| 11 | M-670004142 | Air Conveyor |
$194.19 |
|
|
| 13 | M-673000009 | Bleeding / Degas Kit |
$53.10 |
|
|
| 14 | M-673000013 | Motor Fastening Screw |
$34.54 |
|
|
| 15 | M-670033757 | Cpl 650W Electrofan |
$1,220.87 |
|
|
| 16 | M-673000017 | Temperature Sensor Protectio |
$93.52 |
|
|
| 17 | M-675000354 | Screw |
$2.68 |
|
|
| 18 | M-673000015 | Cable Fastening Clip |
$43.29 |
|
|
| 19 | M-675000545 | Rubber Bushing |
$2.81 |
|
|
| 21 | M-670030111 | Fastening Plug |
$21.50 |
|
