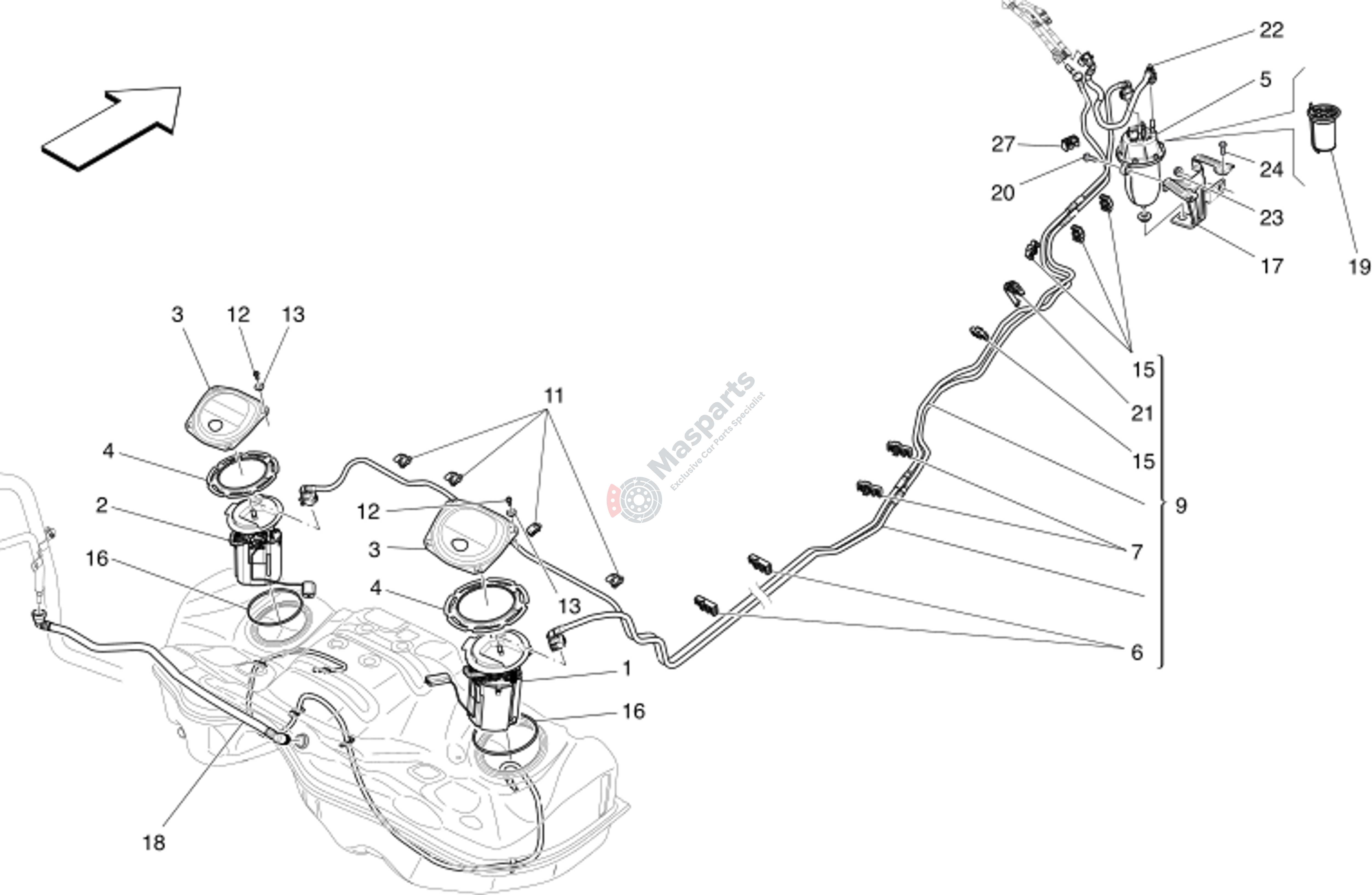

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670159338 | Lh Fuel Pump (V6 Diesel) |
€344,25 |
|
|
| 3 | M-670003258 | Fuel Tank Slot Cover |
€15,27 |
|
|
| 4 | M-670001397 | Fastening Ring Nut |
€38,18 |
|
|
| 5 | M-670007856 | Diesel Fuel Filter |
€172,55 |
|
|
| 6 | M-670005063 | Clip |
€3,86 |
|
|
| 7 | M-670005064 | Clip |
€3,86 |
|
|
| 9 | M-670004178 | Cpl Under-Floor Fuel Pipe As |
€205,70 |
|
|
| 11 | M-670005082 | Spring |
€1,35 |
|
|
| 12 | M-675000071 | Screw |
€1,46 |
|
|
| 13 | M-675000022 | Rear Plate Fastening Block |
€7,36 |
|
|
| 15 | M-675000285 | Clip |
€1,99 |
|
|
| 16 | M-670001398 | Gasoline Pump Gasket |
€17,11 |
|
|
| 17 | M-670004180 | Bracket |
€31,46 |
|
|
| 19 | M-673001463 | Fuel Filter |
€61,20 |
|
|
| 20 | M-675000365 | Screw |
€2,25 |
|
|
| 21 | M-675000304 | Clip |
€2,05 |
|
|
| 22 | M-670030345 | Fuel Pipe |
€22,87 |
|
|
| 23 | M-675000114 | Nut |
€1,08 |
|
|
| 24 | M-675000199 | Screw |
€2,00 |
|
|
| 27 | M-670007195 | Spring |
€2,09 |
|
