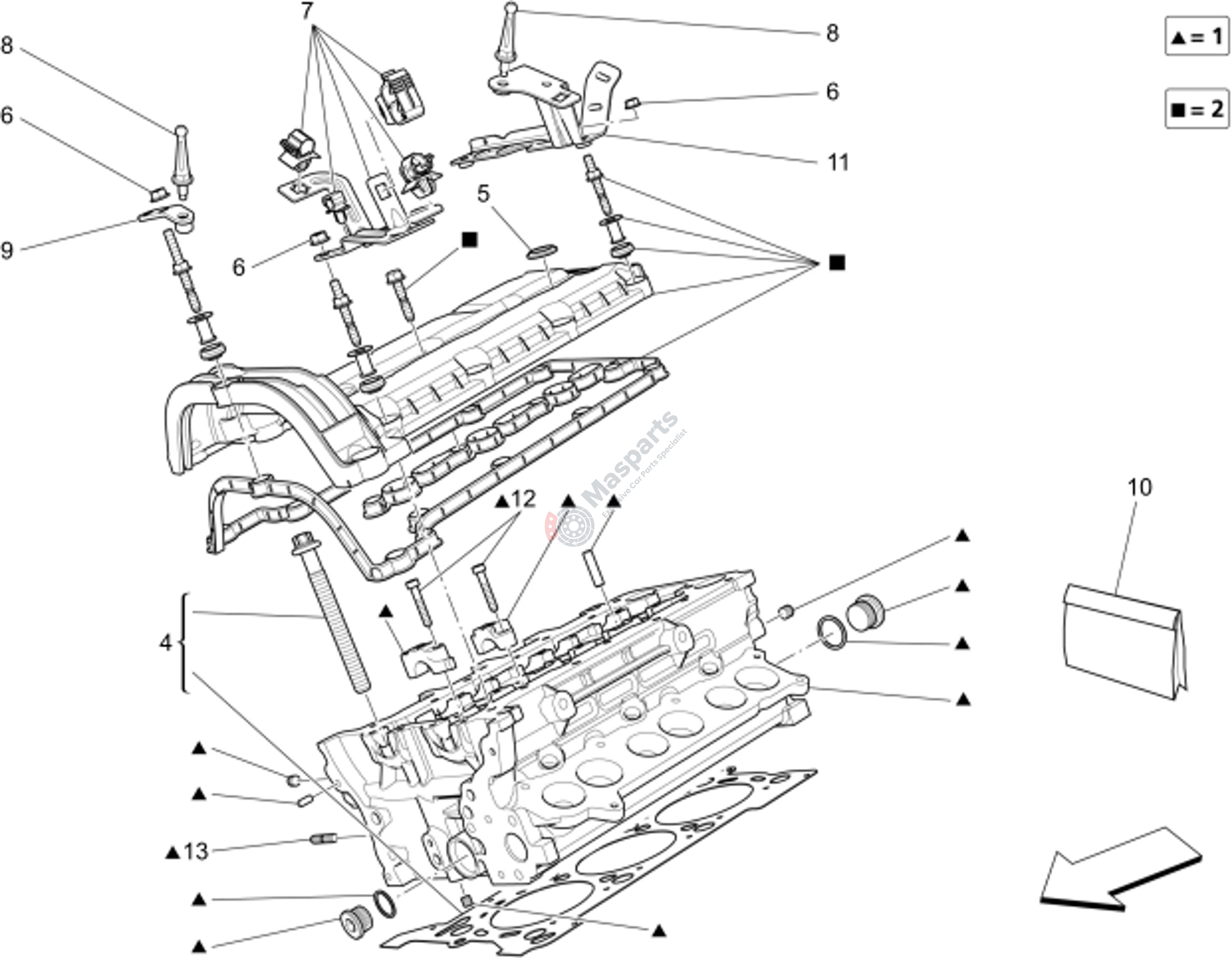

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328090 | Cpl Head |
€1.982,20 |
|
|
| 2 | M-46328149 | Head Cover |
€276,25 |
|
|
| 4 | M-673001236 | Head Gasket Kit |
€200,56 |
|
|
| 5 | M-46328165 | O.R. Gasket |
€18,40 |
|
|
| 6 | M-673001154 | Flange Nut |
€1,46 |
|
|
| 7 | M-46328269 | Bracket |
€24,38 |
|
|
| 8 | M-46328350 | Ball Pin |
€8,10 |
|
|
| 9 | M-46328341 | Bracket |
€24,20 |
|
|
| 10 | M-673001233 | Gasket Kit |
€617,32 |
|
|
| 11 | M-46328346 | Heat Cover Bracket |
€91,45 |
|
|
| 12 | M-46328010 | Screw |
€1,46 |
|
|
| 13 | M-46328016 | Stud |
€1,46 |
|
