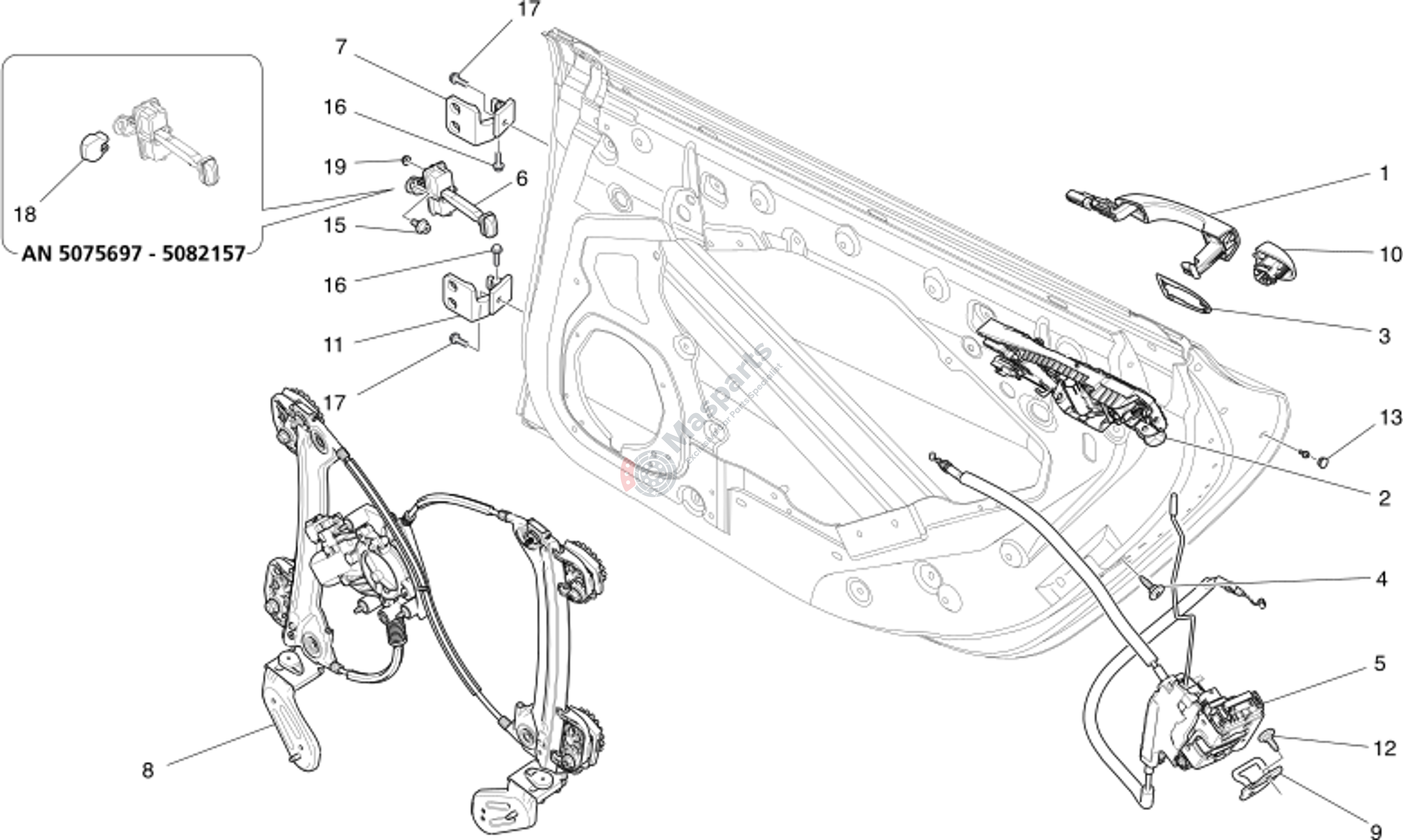

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670109520 | Rear Rh Outer Handle Retaini |
$94.48 |
|
|
| 3 | M-670005442 | External Door Handle Gasket |
$1.71 |
|
|
| 4 | M-670005609 | Screw |
$2.64 |
|
|
| 5 | M-670030898 | R.H. Rear Door Lock |
$145.60 |
|
|
| 6 | M-670030626 | Rear Door Tie Rod |
$27.68 |
|
|
| 7 | M-675000162 | Rh Door Upper Hinge |
$44.13 |
|
|
| 8 | M-670103666 | Rear Rh Power Window Mechani |
$468.06 |
|
|
| 9 | M-675000206 | Doors Lock Striker |
$17.81 |
|
|
| 10 | M-675000300 | Rear Handle Plug (5Ix-) |
$34.04 |
|
|
| 11 | M-675000161 | Rh Door Lower Hinge |
$26.34 |
|
|
| 12 | M-670009758 | Screw |
$2.10 |
|
|
| 15 | M-670006984 | Screw |
$2.33 |
|
|
| 16 | M-675000005 | Special Screw |
$2.28 |
|
|
| 17 | M-675000485 | Special Screw |
$1.56 |
|
|
| 19 | M-670006983 | Flanged Nut |
$1.72 |
|
