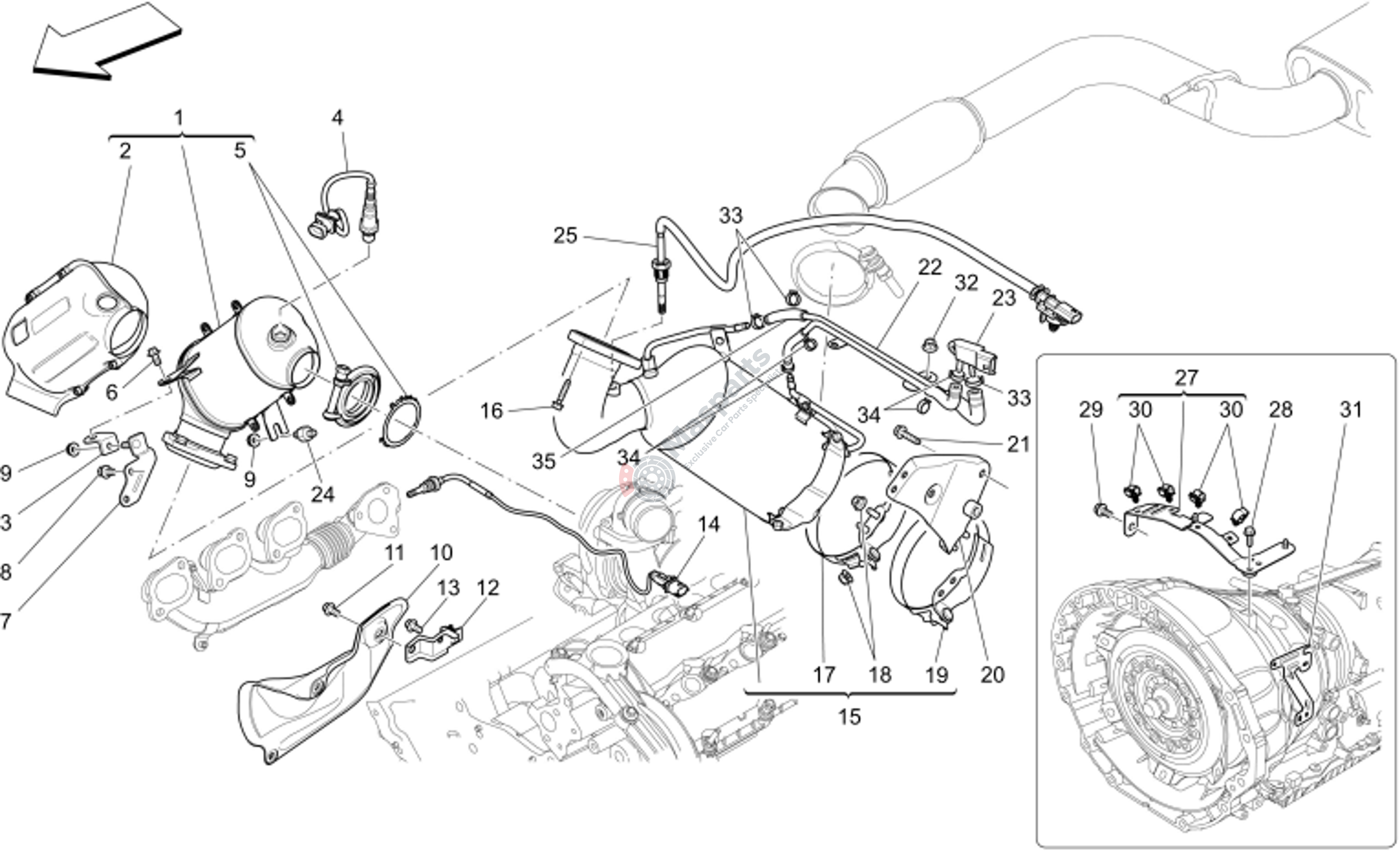

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328328 | Kit Catalytic Converter With |
$3,973.08 |
|
|
| 2 | M-46329708 | Heat Cover |
$672.01 |
|
|
| 3 | M-46328329 | Support Bracket |
$27.81 |
|
|
| 4 | M-46328330 | Sensore Gas Scarico |
$688.25 |
|
|
| 5 | M-673001433 | V Clamp And Its Gasket |
$13.02 |
|
|
| 6 | M-46328732 | Vite Flangiata |
$2.95 |
|
|
| 7 | M-46328279 | Support Bracket |
$28.65 |
|
|
| 8 | M-46328697 | Flange Bolt |
$2.21 |
|
|
| 9 | M-675000566 | Self Lock Nut Flange |
$2.84 |
|
|
| 10 | M-46328344 | Guard |
$180.12 |
|
|
| 11 | M-46328698 | Flange Bolt |
$2.53 |
|
|
| 12 | M-46328260 | Bracket |
$6.64 |
|
|
| 13 | M-46328697 | Flange Bolt |
$2.21 |
|
|
| 14 | M-46333806 | Exhaust Gas Temperature Sens |
$222.52 |
|
|
| 15 | M-670004508 | Diesel Particulate Filter Euro 5 |
$2,379.39 |
|
|
| 16 | M-675000540 | Screw M8X40 |
$1.79 |
|
|
| 17 | M-670007005 | Bracket |
$127.45 |
|
|
| 18 | M-675000091 | Nut |
$1.27 |
|
|
| 19 | M-670006143 | Bracket |
$127.45 |
|
|
| 20 | M-670006142 | Braket |
$56.78 |
|
|
| 22 | M-670102977 | Dpf Pipe |
$83.89 |
|
|
| 23 | M-675000335 | Delta-Pressure Sensor |
$85.06 |
|
|
| 24 | M-46328278 | Catalytic Conv. Fastening St |
$31.81 |
|
|
| 25 | M-670009039 | Dpf Temp.Sensor |
$152.62 |
|
|
| 27 | M-670009383 | Diff.Pressure Sensor Bracket |
$40.97 |
|
|
| 28 | M-675000509 | Screw |
$1.26 |
|
|
| 29 | M-675000510 | Screw |
$1.46 |
|
|
| 30 | M-670009081 | Fastening Clip |
$10.08 |
|
|
| 31 | M-670006413 | Temp. Sensor Cable Bracket |
$12.11 |
|
|
| 32 | M-675000448 | Nut |
$1.43 |
|
|
| 33 | M-675000369 | Strap Collar |
$1.70 |
|
|
| 34 | M-675000368 | Strap Collar |
$1.94 |
|
|
| 35 | M-673005302 | Dpf-Side Inlet Siliconic Hos |
$7.12 |
|
