Diagram image not available

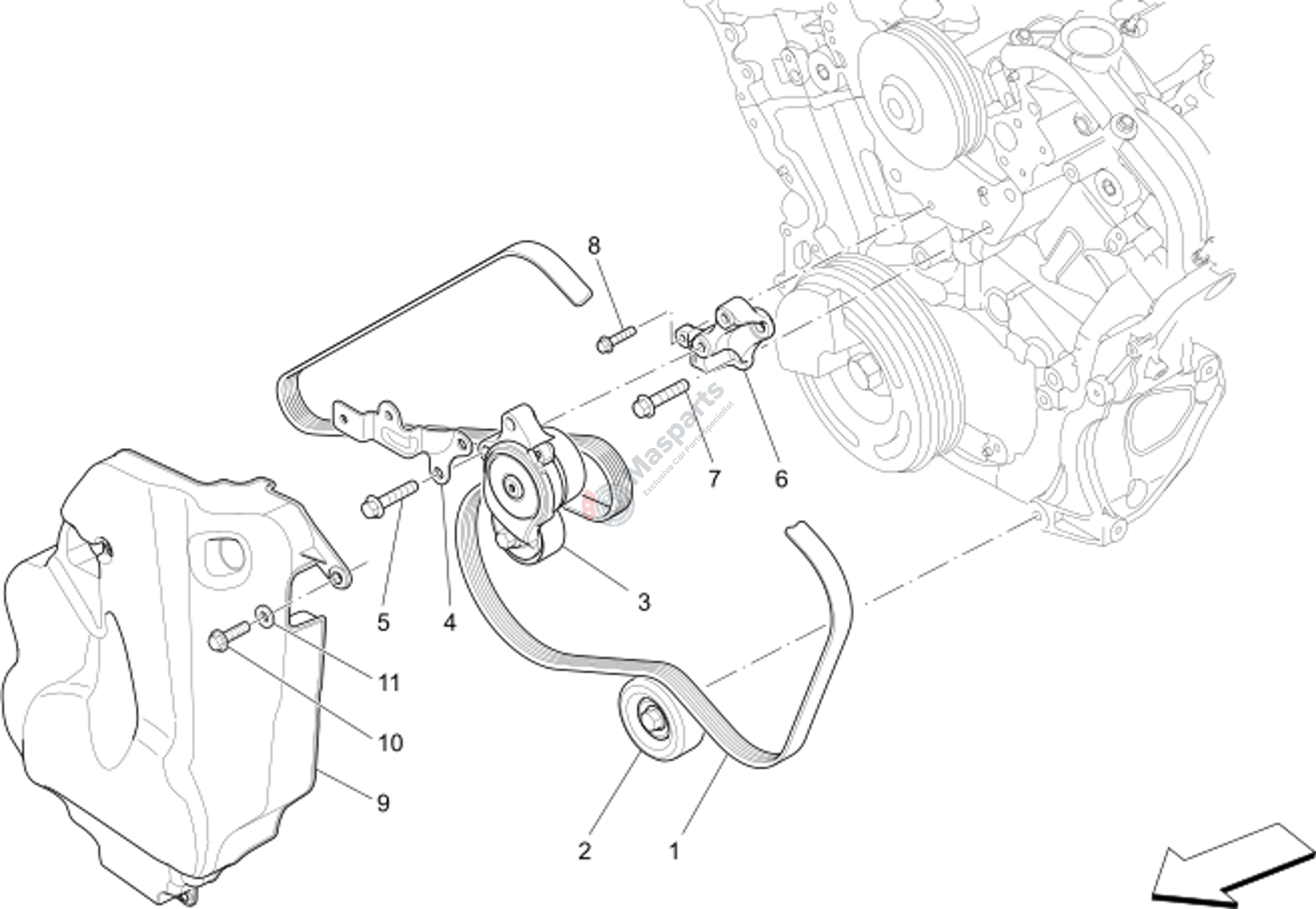

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328348 | Belt |
$89.18 |
|
|
| 2 | M-46328756 | Belt Tensioner Pulley |
$111.97 |
|
|
| 3 | M-46330311 | Belt Tensioner |
$122.26 |
|
|
| 4 | M-46328316 | Bracket |
$29.17 |
|
|
| 5 | M-46328718 | Flange Bolt |
$3.43 |
|
|
| 6 | M-46328519 | Tensioner Bracket |
$70.78 |
|
|
| 7 | M-46328718 | Flange Bolt |
$3.43 |
|
|
| 8 | M-46328691 | Flange Bolt |
$3.00 |
|
|
| 9 | M-670009058 | Soundproof Guard |
$88.99 |
|
|
| 11 | M-675000391 | Washer |
$1.93 |
|
