Diagram image not available

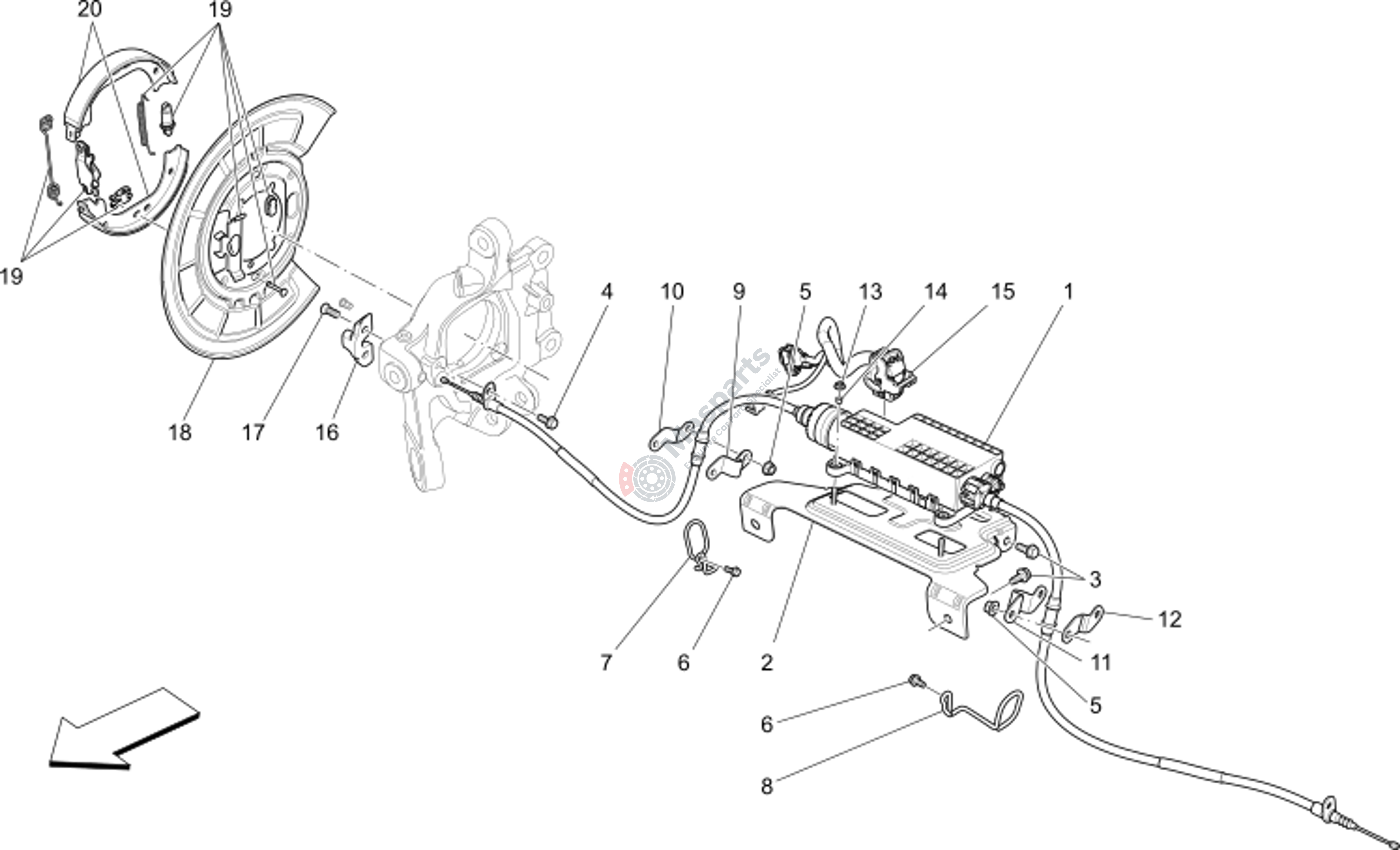

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670038111 | Epb Ecu |
$857.50 |
|
|
| 2 | M-670003636 | Bracket |
$35.46 |
|
|
| 4 | M-675000111 | Screw |
$2.59 |
|
|
| 6 | M-675000087 | Screw |
$3.50 |
|
|
| 7 | M-670003647 | Ring |
$1.52 |
|
|
| 8 | M-670003648 | Ring |
$1.52 |
|
|
| 9 | M-670003643 | U-Bolt |
$51.37 |
|
|
| 10 | M-670003641 | Bracket |
$2.17 |
|
|
| 11 | M-670003644 | U-Bolt |
$3.21 |
|
|
| 12 | M-670003642 | Bracket |
$2.17 |
|
|
| 14 | M-670003635 | Spacer. |
$1.50 |
|
|
| 15 | M-670007516 | Rear Axle Assy Cable |
$371.53 |
|
|
| 16 | M-675000225 | Rear Wheel Parking Brake Ada |
$24.53 |
|
|
| 17 | M-675000359 | Screw |
$6.37 |
|
|
| 18 | M-673000033 | Rh Backplate |
$77.48 |
|
|
| 19 | M-673000034 | Accessories And Fixing Eleme |
$176.38 |
|
|
| 20 | M-673000035 | Rear Moulded Shoes Kit |
$340.23 |
|
