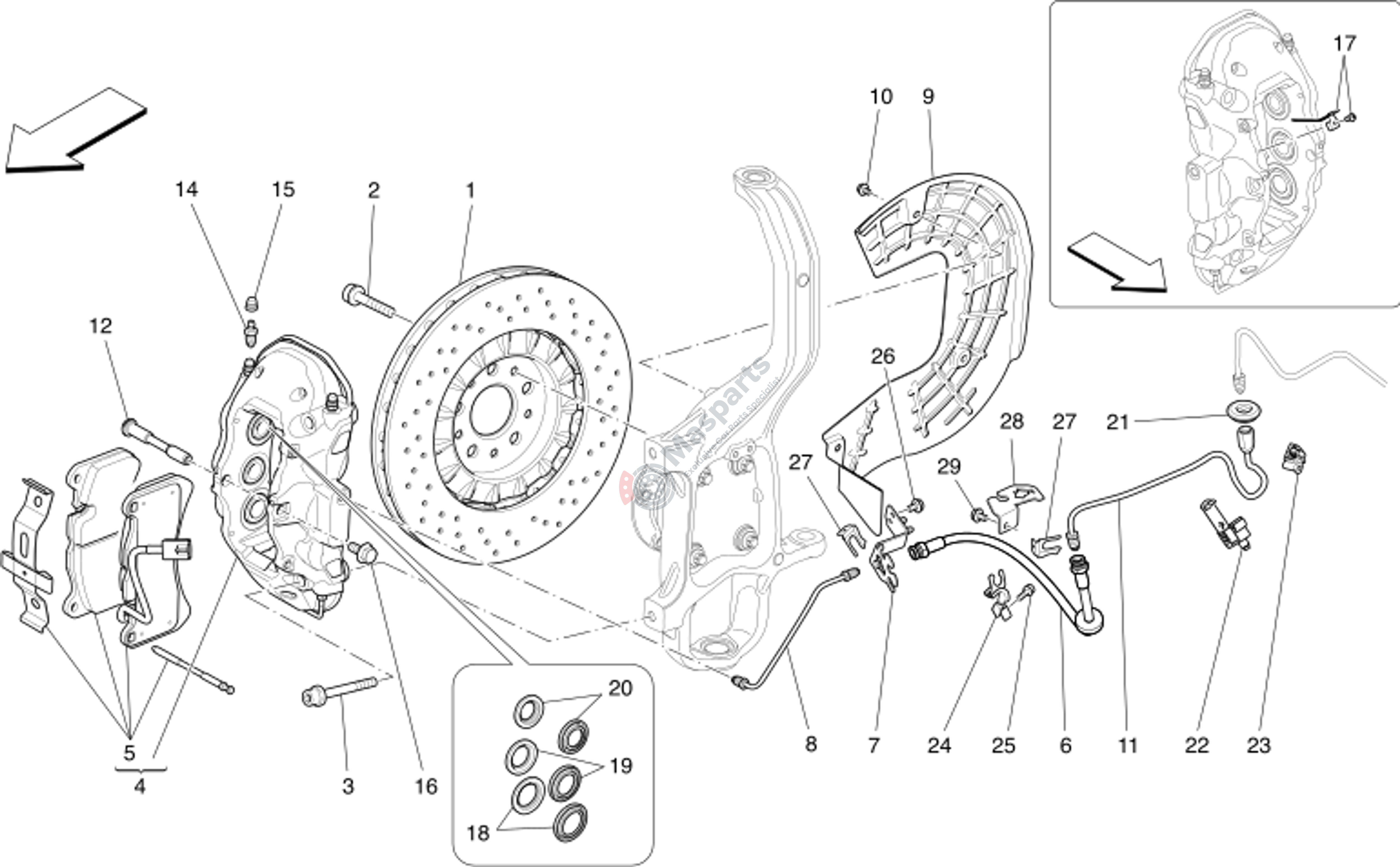

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670030935 |
Front Brake Disc (Middle System)
|
$267.66 |
|
|
| 2 | M-675000081 |
Screw
|
$4.96 |
|
|
| 3 | M-670005714 | Screw |
$6.61 |
|
|
| 5 | M-673012041 |
Front Brake Pads Kit M156 V6
|
$440.32 |
|
|
| 7 | M-670001817 | Right Front Flexible Brake P |
$4.47 |
|
|
| 8 | M-670001794 | R.H. Front Caliper Rigid Pip |
$14.88 |
|
|
| 9 | M-675000067 | R.H. Front Brake Disc Shield |
$6.92 |
|
|
| 10 | M-675000126 | Screw |
$1.62 |
|
|
| 11 | M-670007016 | R.H. Front Central Rigid Pip |
$21.59 |
|
|
| 12 | M-198015 | Tie Rod |
$50.96 |
|
|
| 14 | M-152954 | Bleeding Screw |
$39.39 |
|
|
| 15 | M-215666 | Cap |
$26.72 |
|
|
| 16 | M-198014 | Screw |
$22.01 |
|
|
| 17 | M-673000054 | Bracket And Screw |
$48.16 |
|
|
| 18 | M-182121 | Cap |
$74.76 |
|
|
| 19 | M-215664 | Cap |
$51.28 |
|
|
| 20 | M-215663 | Cap |
$51.28 |
|
|
| 21 | M-675000281 | Gasket On Pillar |
$3.35 |
|
|
| 22 | M-675000286 | Clip |
$1.63 |
|
|
| 23 | M-675000272 | Retaining Clip |
$5.02 |
|
|
| 24 | M-670007373 | Bracket |
$8.64 |
|
|
| 25 | M-675000126 | Screw |
$1.62 |
|
|
| 26 | M-675000126 | Screw |
$1.62 |
|
|
| 27 | M-675000276 | Plate |
$0.94 |
|
