Diagram image not available

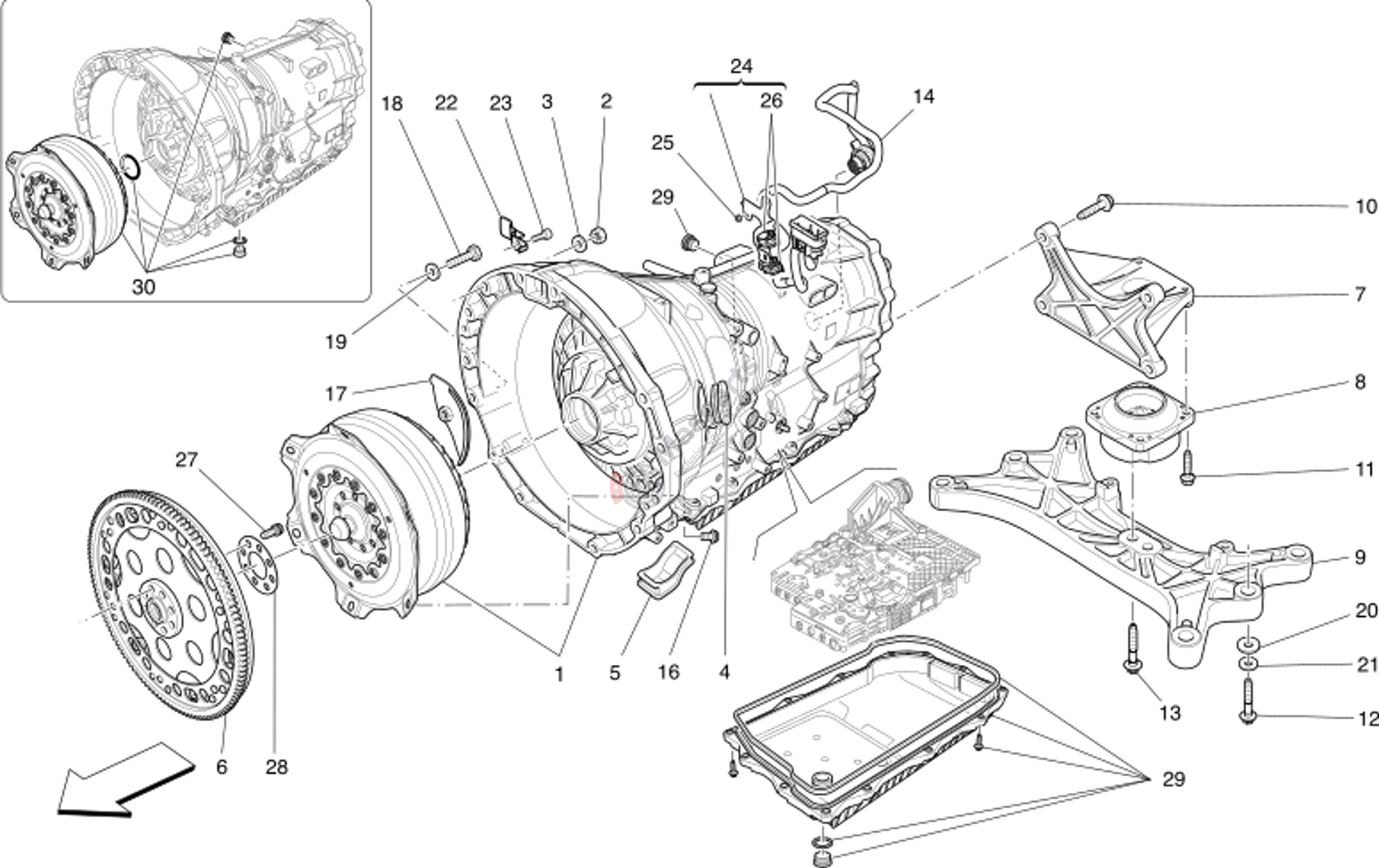

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670002340 | Complete Autom Transmission |
$7,197.98 |
|
|
| 2 | M-675000184 | Nut |
$1.79 |
|
|
| 3 | M-675000098 | Washer |
$1.91 |
|
|
| 4 | M-670003520 | Plug |
$5.17 |
|
|
| 5 | M-670003521 | Closing Cap |
$5.21 |
|
|
| 6 | M-673010357 | V6 Gasoline Engine Flywheel |
$832.68 |
|
|
| 7 | M-670001542 | Gearbox Side Engine Mounting |
$116.58 |
|
|
| 8 | M-675000031 | Gearbox Side Suspension Bush |
$38.04 |
|
|
| 9 | M-670003953 | Gearbox Mounting Cross Membe |
$210.62 |
|
|
| 10 | M-675000120 | Screw |
$2.85 |
|
|
| 11 | M-675000540 | Screw M8X40 |
$1.80 |
|
|
| 12 | M-675000145 | Screw |
$4.08 |
|
|
| 13 | M-675000145 | Screw |
$4.08 |
|
|
| 14 | M-670007400 | Gearbox Cable |
$80.18 |
|
|
| 16 | M-670005384 | Screw |
$2.48 |
|
|
| 17 | M-670003684 | Closing Plate |
$5.73 |
|
|
| 18 | M-675000380 | Screw |
$2.05 |
|
|
| 19 | M-675000378 | Washer |
$1.15 |
|
|
| 20 | M-675000247 | Washer |
$1.66 |
|
|
| 21 | M-675000254 | Washer |
$1.77 |
|
|
| 22 | M-670005079 | Bracket |
$4.57 |
|
|
| 24 | M-670005501 | Cpl Bracket |
$11.44 |
|
|
| 25 | M-675000093 | Nut |
$1.47 |
|
|
| 27 | M-670002932 | Screw |
$5.73 |
|
|
| 28 | M-670002257 | Shim |
$4.61 |
|
|
| 29 | M-673003178 | Cpl Auto Transmiss. Oil Sump |
$427.30 |
|
|
| 30 | M-673003836 | Cpl Auto Transmiss. Converte |
$2,257.38 |
|
