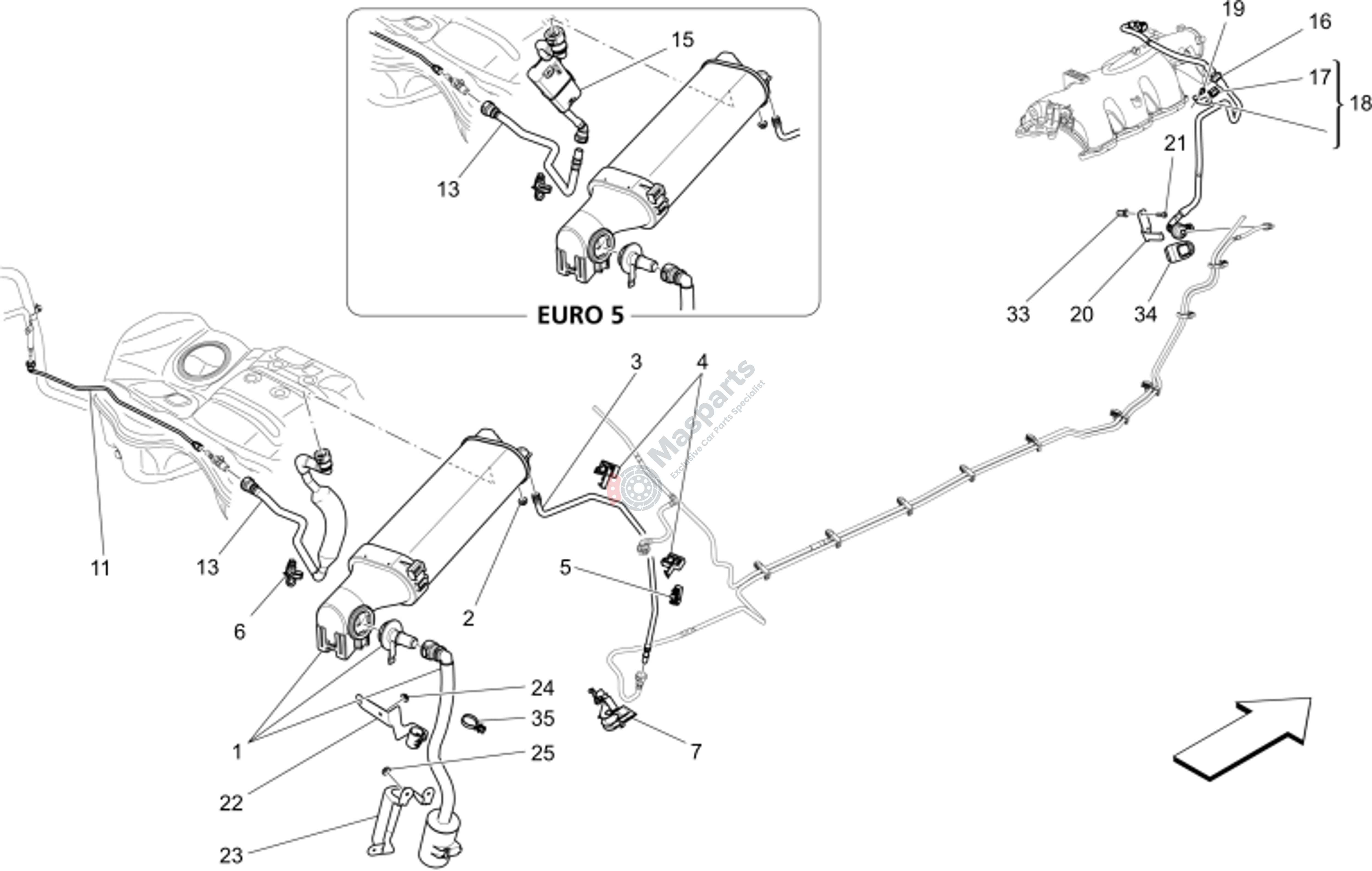

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670030586 | Cpl Fuel Vapour Filter (Row) |
$126.66 |
|
|
| 2 | M-675000114 | Nut |
$1.24 |
|
|
| 3 | M-670003253 | Rear Anti-Evapouration Pipe |
$19.38 |
|
|
| 4 | M-675000069 | Clip |
$1.31 |
|
|
| 5 | M-675000055 | Clip |
$1.24 |
|
|
| 7 | M-670007068 | Clip |
$5.06 |
|
|
| 11 | M-670005215 | Flex.Hose |
$27.96 |
|
|
| 13 | M-670005214 | Fuel Vent Pipe |
$43.92 |
|
|
| 15 | M-670001405 | Vent Pipe On Fuel Tank |
$99.53 |
|
|
| 16 | M-673012369 | Pipe From Union To Air Intak |
$121.54 |
|
|
| 17 | M-675000132 | Clip |
$1.15 |
|
|
| 18 | M-670005045 | Cpl Bracket |
$5.90 |
|
|
| 19 | M-675000191 | Screw |
$1.98 |
|
|
| 20 | M-670007135 | Bracket |
$3.61 |
|
|
| 21 | M-675000242 | Screw |
$3.31 |
|
|
| 22 | M-670030588 | Canister Filter Bracket |
$10.65 |
|
|
| 23 | M-670030891 | Heat Guard |
$15.12 |
|
|
| 24 | M-675000114 | Nut |
$1.24 |
|
|
| 25 | M-670030917 | Threaded Plate |
$0.97 |
|
|
| 33 | M-675000576 | Rivet |
$1.17 |
|
|
| 34 | M-670007319 | Antivibration Bushing |
$6.49 |
|
|
| 35 | M-670031653 | Spring Clip A/C Line |
$18.99 |
|
