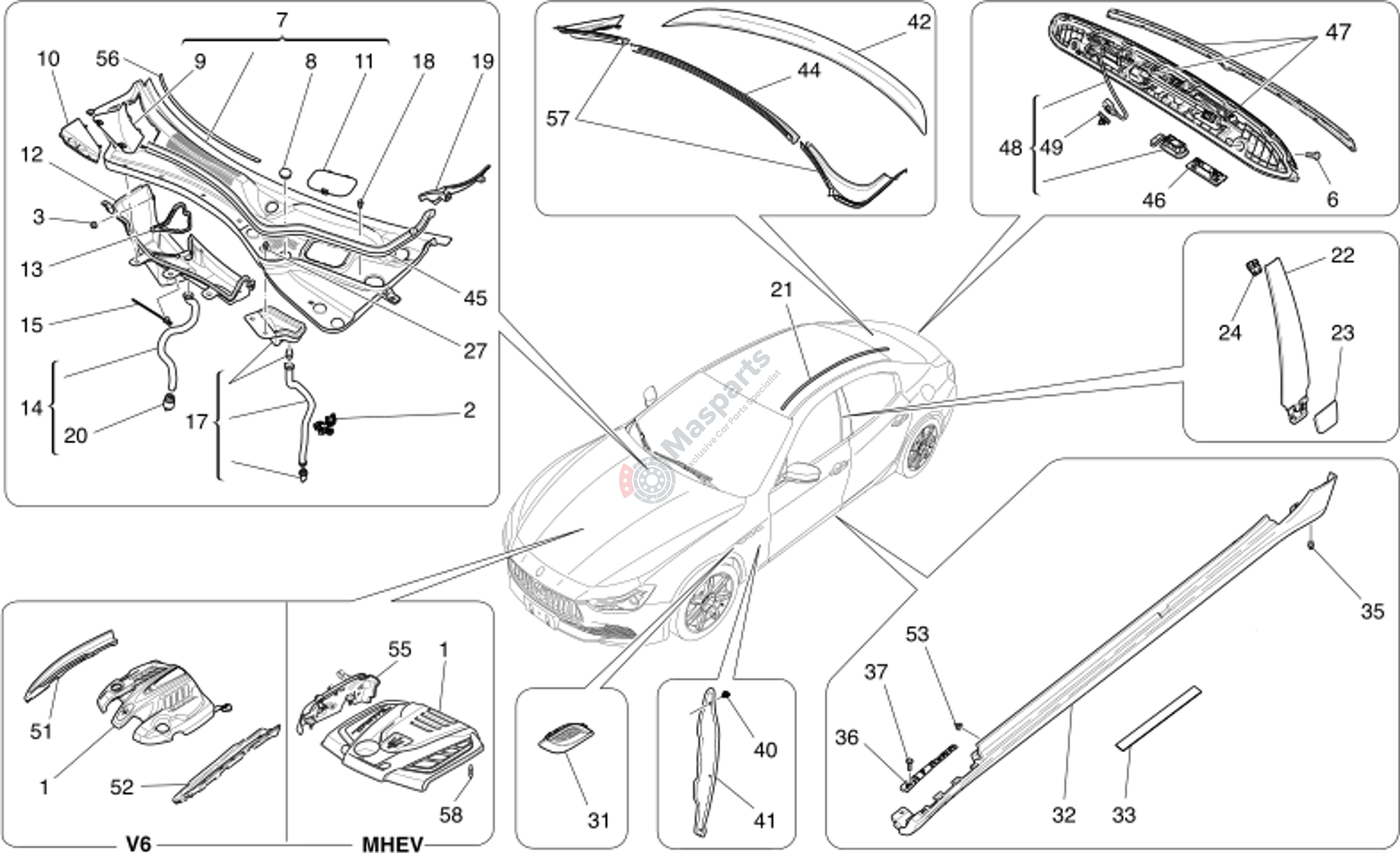

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670032482 | Aesthetic Guard On Intake Ma |
$333.46 |
|
|
| 2 | M-670005638 | Clip |
$4.55 |
|
|
| 3 | M-675000442 | Nut |
$1.47 |
|
|
| 6 | M-670006846 | Screw |
$2.10 |
|
|
| 8 | M-675000311 | Plug |
$3.27 |
|
|
| 11 | M-670013428 | Brake Fluid Topping-Up Door |
$16.09 |
|
|
| 12 | M-670030773 | Under Windscreen Plate Step |
$87.65 |
|
|
| 13 | M-670004127 | Water Shield |
$15.58 |
|
|
| 14 | M-670009206 | Sleeve |
$27.98 |
|
|
| 15 | M-670005402 | Clamp |
$1.71 |
|
|
| 18 | M-675000150 | Fixing Button. |
$0.98 |
|
|
| 20 | M-670006052 | Non Return Valve |
$18.26 |
|
|
| 21 | M-670010746 | Complete Rh Roof Moulding |
$263.03 |
|
|
| 24 | M-670004125 | Bracket |
$28.46 |
|
|
| 27 | M-675000150 | Fixing Button. |
$0.98 |
|
|
| 32 | M-673010782 | Rh Side Skirt |
$2,781.61 |
|
|
| 35 | M-675000058 | Fastening Clip |
$2.83 |
|
|
| 36 | M-670006112 | Bracket |
$7.30 |
|
|
| 37 | M-675000111 | Screw |
$2.62 |
|
|
| 40 | M-675000058 | Fastening Clip |
$2.83 |
|
|
| 41 | M-670001706 | Front R.H. Mudguard Reinforc |
$53.93 |
|
|
| 44 | M-670004382 | Luggage Comp. Centr. Cover-D |
$70.24 |
|
|
| 45 | M-670002093 | Air Intake Compartment Gaske |
$42.53 |
|
|
| 46 | M-673001401 | Light Plate |
$53.59 |
|
|
| 48 | M-673001402 | Microswitch Kit |
$92.50 |
|
|
| 49 | M-673000066 | Fixing Element |
$62.39 |
|
|
| 53 | M-673003779 | Pin |
$3.70 |
|
|
| 57 | M-673013153 | Rh+Lh Cable-Duct Trunk Compa |
$125.57 |
|
|
| 58 | M-675000971 | Pin |
$3.20 |
|
